Element does not produce any heat when switched on — caused by failed or corroded receptacle terminals that cut off electrical current to the coil element.
Burner heats inconsistently, cycles on and off unexpectedly, or only heats on the highest setting — indicates loose or partially arced terminal block contacts.
Visible sparks, popping sounds, or flickering at the base of the element when the stove is in use — caused by burnt, pitted, or corroded receptacle block terminals.
Visible burn marks, discoloration, or corrosion on the receptacle block or element prongs — typically caused by spills, moisture infiltration, or long-term heat cycling damage.
💡 Pro Tip: How to Diagnose a Failing Burner Receptacle
Your part is likely the culprit if you notice any of the following:
⚠️ Burner element does not heat up at all when turned on
⚠️ Intermittent heating or burner cycles on and off erratically
⚠️ Visible burn marks, corrosion, or discoloration on the receptacle block or element prongs
⚠️ Sizzling, popping, or sparking sound when attempting to use the burner
🔍 Diagnostic Tip: Shine a flashlight directly at the receptacle contacts. Burnt or pitted terminals confirm the receptacle block has failed and must be replaced. Also inspect the element prongs — if they are severely burned, replace the element at the same time. Before testing, always verify your range is receiving the full 240V supply it requires; low voltage can mimic a bad receptacle.

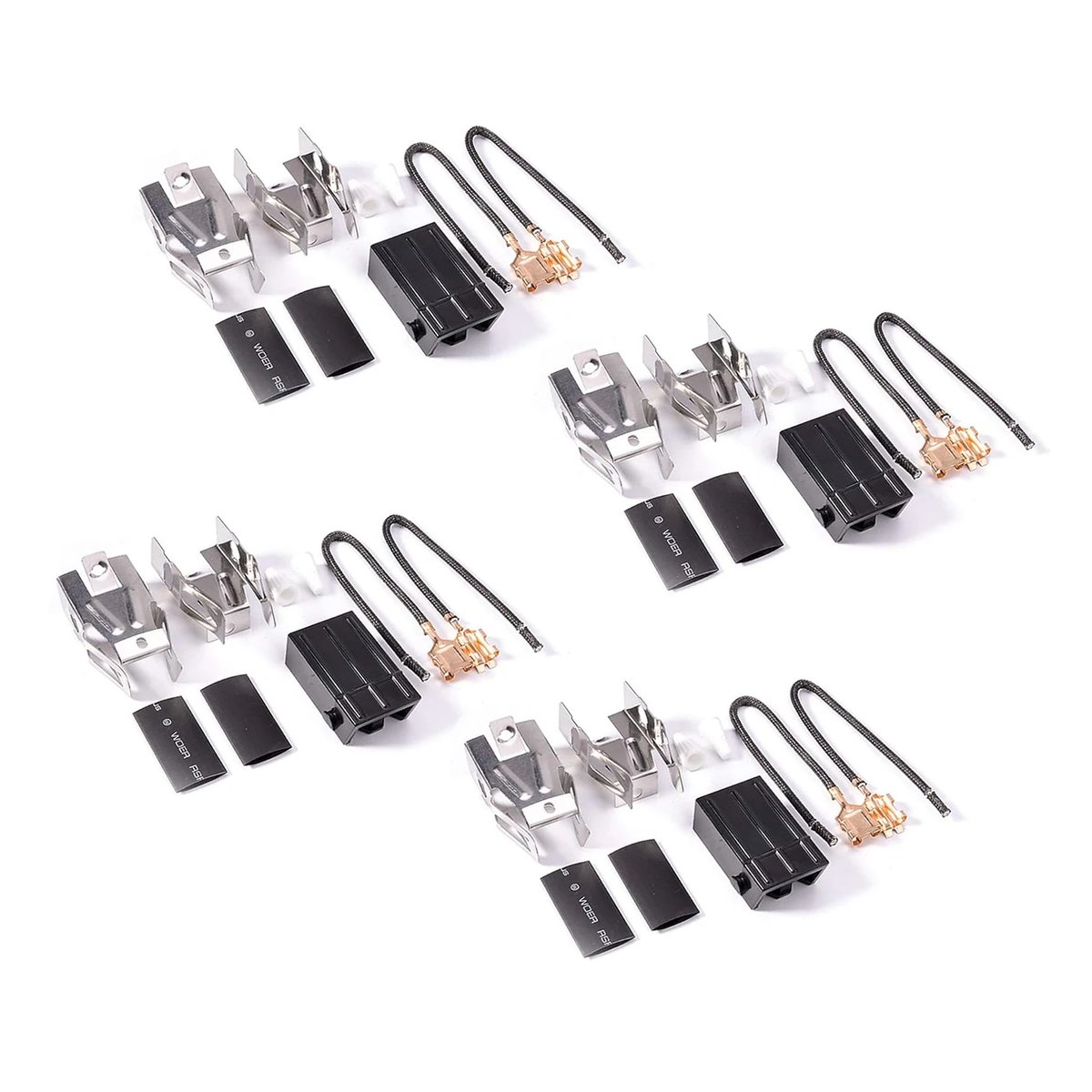

📦 What's in the Box
✅ 1× Plastic Receptacle Block (newer-style terminal block)
✅ 2× Metal Mounting Brackets (2 styles included — select match for your unit)
✅ 2× Pre-Crimped High-Temperature Wire Leads
✅ 2× Ceramic Wire Nuts
✅ 2× Heat-Shrink Tubing Insulators
✅ 1× Mounting Screw
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
