Whirlpool Range Burner Won't Heat — 5 Causes & How to Fix

You turn the knob to high, hear the click, but your Whirlpool burner just sits there stone cold. Maybe it worked yesterday, or maybe just one burner's acting up while the others work fine. On models like the RF3020XYW0, RF390PXWW1, and RS6700XKW3, this is usually a receptacle failure — that ceramic block under the burner that connects everything electrically.

Quick Symptom Check

• Burner element looks fine but won't heat at all — no red glow, nothing
• Burner worked intermittently before failing completely
• Visible burn marks or melting on the receptacle block
• Other burners work normally — isolates the issue to one position
• Burner plugs in loosely or wobbles — receptacle prongs may be damaged

Cause #1: Failed Burner Receptacle (70% of Cases)

The receptacle (part 330031) is that ceramic block the burner plugs into. Over time, the constant heating cycles cause the metal contacts inside to corrode or arc. You'll often see black burn marks on the ceramic or even melted plastic if it got really hot.

How to diagnose: Unplug the range. Pull off the burner element by lifting it up and pulling it straight out. Look at the receptacle block — if you see any discoloration, melting, or the metal prongs look pitted and burned, it's toast. The receptacle should be white or cream-colored, not brown or black.

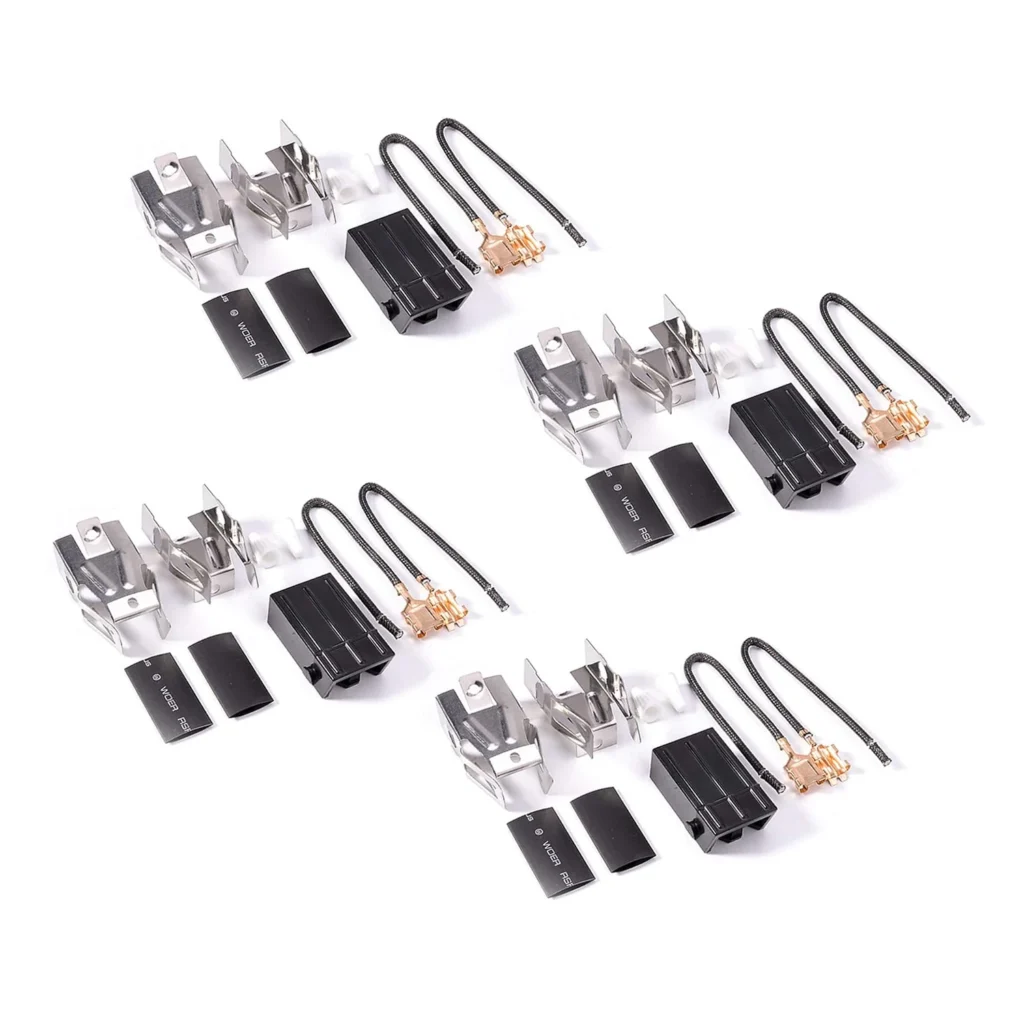

Fix: Replace the receptacle kit (330031). It includes the ceramic block and wire pigtails. You'll need to disconnect the old wires under the cooktop (usually push-on connectors) and install the new one. Takes about 20 minutes if you've got basic tools.

Cost: $15–$25 for the part.

Cause #2: Burned-Out Surface Element (20%)

Sometimes it's not the receptacle at all — the coil element itself has an internal break. This happens when elements get bumped hard or develop hot spots from uneven cookware contact.

How to diagnose: Swap the "dead" burner with one that works. If the problem moves to the new socket, the element's bad. If the original socket still doesn't work with a known-good burner, it's the receptacle or wiring.

Fix: Replace the surface element. Make sure you get one that matches your burner size (6-inch or 8-inch).

Cost: $20–$40 depending on size.

Cause #3: Loose Wire Connections Behind the Receptacle (5%)

The receptacle connects to the range's main wiring with push-on terminals. If these weren't fully seated during a previous repair, or they've loosened from vibration, you'll lose power to that burner.

How to diagnose: With power off, access the cooktop wiring (usually by lifting the top or removing a panel). Check that all wire connectors on the receptacle are firmly attached. Give them a gentle tug — they shouldn't pull off easily.

Fix: Reconnect any loose terminals. If the connectors are burned or corroded, replace the receptacle — damaged connectors mean the receptacle overheated.

Cause #4: Infinite Switch Failure (3%)

That knob you turn controls an infinite switch, which cycles power to maintain your selected temperature. If the switch's contacts weld shut or burn out, the burner won't heat even though the receptacle and element are fine.

How to diagnose: If you've already confirmed the element works in another socket and the receptacle looks perfect, suspect the switch. You'd need a multimeter to test continuity through the switch at different settings.

Fix: Replace the infinite switch. This requires removing the control panel and possibly disconnecting the cooktop.

Cost: $30–$60 for the switch.

Cause #5: Thermal Limiter Tripped (2%)

Some Whirlpool and KitchenAid models (like the KECS100SAL6 and KECS100SBC3) have a thermal limiter — a safety device that cuts power if the cooktop overheats. This can trip if you had a serious boil-over or left a burner on high with nothing on it.

How to diagnose: The limiter is usually under the cooktop near the burner wiring. It's a small disc with two wires. Test it with a multimeter — you should have continuity. If it's open, it tripped.

Fix: Replace the thermal limiter. But figure out why it tripped in the first place — there's usually an underlying overheating issue.

When to Call a Pro

If you've replaced both the receptacle and element and the burner still won't heat, you're looking at control board issues or internal wiring problems. That's when it makes sense to call a tech. Also, if you're not comfortable working with electrical connections or accessing the cooktop wiring, don't risk it — ranges pull serious amperage.

Frequently Asked Questions

Can I use the range with one burner not working?

Yeah, you can keep using the other burners safely. The dead burner just takes up space until you fix it. Just make sure nothing's visibly melted or smoking — that'd be a fire hazard.

How do I know if it's the receptacle or the element without testing?

Look for visible damage. If the ceramic receptacle block has burn marks, melting, or blackened areas, replace it first — it's usually the culprit. If the receptacle looks pristine but the element has a visible break or bulge in the coil, replace the element.

Will this part work on my Kenmore or Maytag range?

The 330031 receptacle kit crosses over to multiple brands — Whirlpool, Maytag, Kenmore, KitchenAid, Amana, and Roper all used this design. Check your model number against the compatibility list, but if your current receptacle looks identical (two-prong ceramic block with wire pigtails), it'll work.
