The 5.5-inch burner zone produces no heat at any control setting — the element has burned out and must be replaced.
One section of the element glows while another remains dark, indicating partial failure of the heating coil.
The small burner zone takes excessively long to reach temperature or never reaches high heat, even on maximum setting.
Cracks, blistering, or burn marks are visible on the surface element coil beneath the glass cooktop.
💡 Pro Tip: How to Know If Your Surface Element Has Failed
Your part is likely the culprit if you notice any of the following:
⚠️ The small front or rear burner zone shows no heat at any setting
⚠️ Element heats unevenly — one side glows red while the other stays dark
⚠️ Visible cracks, burn marks, or blistering on the element coil
⚠️ Burner is slow to heat or cycles off prematurely even on high setting
🔍 Technician Tip: Before replacing, test the element with a multimeter set to continuity/resistance mode. A failed element will show no continuity (open circuit). Also check the surface element switch and wiring harness — a faulty switch can mimic a bad element. If the element tests open, replace it — radiant surface elements are not repairable.
📦 What's in the Box

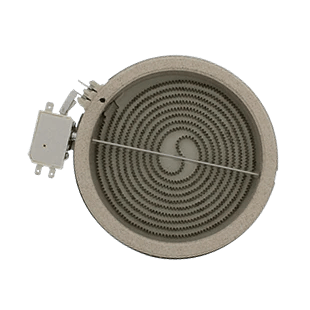

✅ 1× WB30T10145 Radiant Surface Element, 5.5 Inch (single zone, plug-in terminal type)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
