Home/Range & Oven Parts/Range Surface Burner Elements/MP15YA

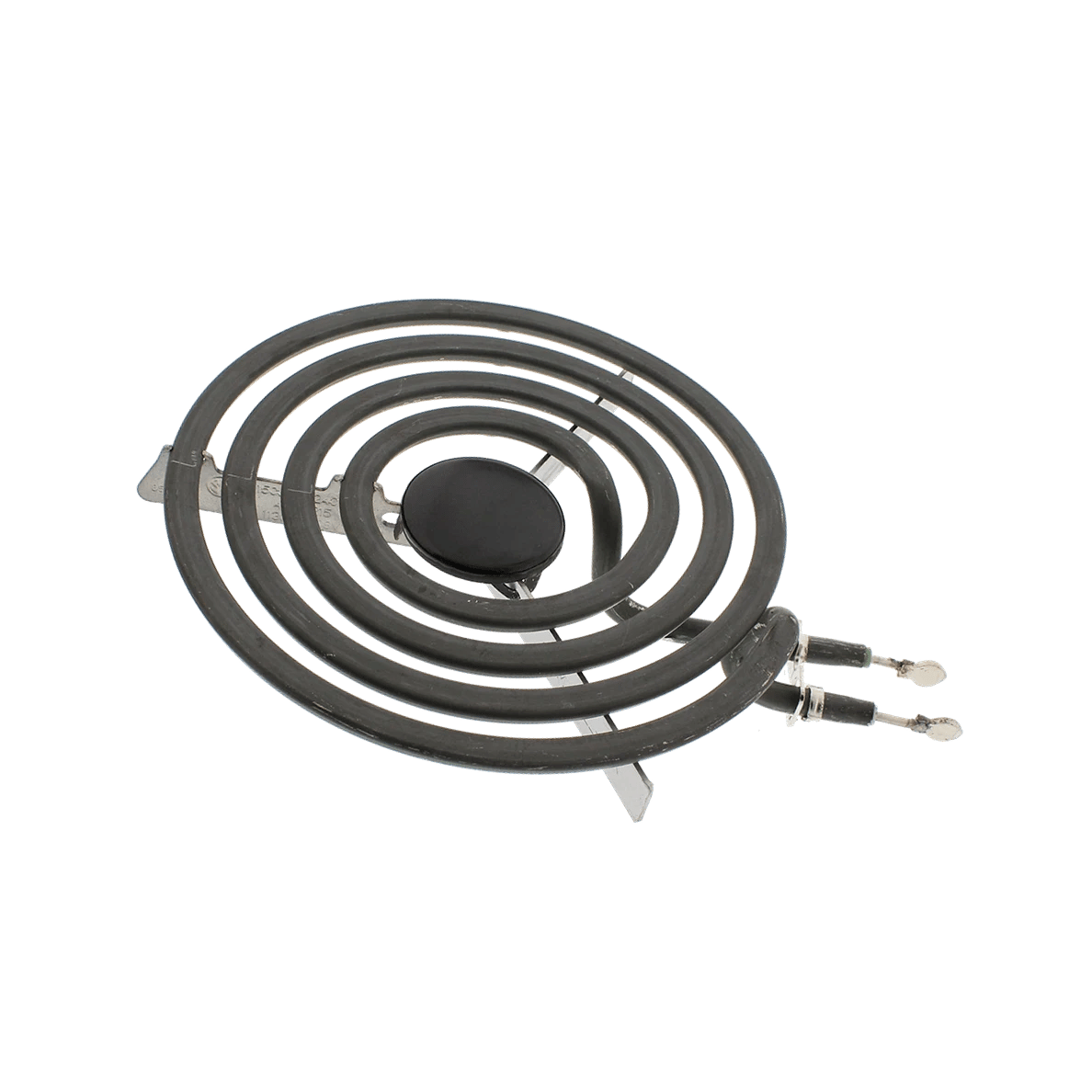

MP15YA 6" Electric Range Burner Surface Element Compatible with Whirlpool Maytag Kenmore, Replaces WP660532 660532 AP6010189 WPY04100165
  • MP15YA_1
  • MP15YA_2
  • MP15YA_3
  • MP15YA_4
  • MP15YA_5
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 20 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

MP15YA 6" Electric Range Burner Surface Element Compatible with Whirlpool Maytag Kenmore, Replaces WP660532 660532 AP6010189 WPY04100165

SKU: MP15YA
Order within --:-- to ship today
Repair Time5-10 Minutes
DifficultyEasy
DIY FriendlyYes
Tools Needed
Work Gloves
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
MP15YA 6" Electric Range Burner Surface Element Compatible with Whirlpool Maytag Kenmore, Replaces WP660532 660532 AP6010189 WPY04100165
In Stock

This Part Fixes These Problems

Burner Won't Heat

Element fails to produce any heat when turned on – coil does not warm up or glow. Caused by internal wire burnout or broken coil.

Slow or Partial Heating

Burner takes unusually long to heat or only one section of the coil glows, resulting in uneven cooking temperatures.

Corroded / Burnt Terminal Ends

Visible green corrosion or carbon scoring on the element's plug prongs causes poor contact and intermittent or complete loss of heat.

Burner Trips Circuit Breaker

Element causes the circuit breaker to trip immediately upon activation, indicating an internal short circuit within the coil.

Repair Guides

How to Replace W10613606 Compressor Start Device & Capacitor on Whirlpool Refrigerator — Step-by-Step
May 31, 2026
How to Replace W10846539 Refrigerator Evaporator Fan Motor on Whirlpool Fridge — Step-by-Step
May 31, 2026
Samsung & Kenmore Dryer Idler Pulley Assembly Parts — Models & Compatibility
May 31, 2026
OEM vs Aftermarket Drum Front Glide Kit for Whirlpool & Maytag: Honest Comparison (12002126)
May 31, 2026
Whirlpool, Maytag & KitchenAid Refrigerator Defrost Thermostat Parts — Models & Compatibility
May 31, 2026

Product Description

Why Choose Our MP15YA 6" Range Burner Surface Element?

🔧
Built to OEM SpecificationsMatches WP660532 exactly: 6-inch diameter, 1500W, 240V, 4-turn coil with Y-style bracket and looped terminal ends – plug-in installation, zero modifications needed.
⚡
Ni80Cr20 Nickel-Chromium Heating WireInternal heating wire uses premium nickel-chromium alloy for superior heat uniformity, fast ramp-up time, and resistance to deformation at sustained high temperatures.
🛡️
SUS304 Stainless Steel Tube Shell0.6 mm high-nickel-content tube wall provides excellent corrosion resistance and mechanical strength, ensuring long service life under daily cooking conditions.
🏷️
Replaces 40+ OEM Part NumbersDirect aftermarket replacement for WP660532, 660532, AP6010189, WPY04100165, Y707456, 715927, MP15MA, SU233, SU235, PS11743366, W10126573, Y04000032, Y04000034 and many more.
🍳
Wide Brand CompatibilityFits most Whirlpool, Kenmore (2004+), Maytag, Amana, Roper, KitchenAid, Jenn-Air, Admiral, Norge, Crosley, Hardwick & Magic Chef electric ranges. NOT for GE or Hotpoint.
🔌
Tool-Free Plug-In InstallationSimply unplug power, lift out the old element, align the Y-bracket, and plug the new one in. No screwdriver required for the element itself – repair done in under 10 minutes.

💡 Pro Tip: Is Your 6" Burner the Culprit?

Your part is likely the culprit if you notice any of the following:

⚠️ Burner coil fails to heat up at all when turned on

⚠️ Element heats slowly or only partially glows red

⚠️ Visible cracks, blistering, or burn spots on the coil surface

⚠️ Circuit breaker trips when the burner is switched on (indicating an internal short)

🔍 Quick Test: With the range unplugged, pull the element straight up and out of its receptacle. Inspect the two terminal prongs for green corrosion or carbon scoring. A corroded receptacle block (part 330031) is often the root cause — replace both together for a lasting fix.

📦 What's in the Box

✅ 1× MP15YA 6" Coil Surface Burner Element (1500W / 240V / 4-Turn / Y-Bracket)

Questions & Answers

Will this MP15YA element fit my GE or Hotpoint range?
Answered by Support Team  ·  Mar 15, 2024
No. The MP15YA uses a Y-style bracket and looped terminal prongs that are not compatible with GE or Hotpoint ranges. GE and Hotpoint use a different coil and receptacle system (typically WB30M1/WB30M2). Please verify your range brand before ordering.
There was smoke coming from my new burner the first time I used it – is that normal?
Answered by Support Team  ·  Nov 20, 2023
Yes, completely normal. The new element has a factory-applied protective coating on the metal tube. On first use at high heat, this coating volatilizes and produces light smoke for the first 10–15 minutes. It will not recur after the initial burn-off and does not affect performance or safety.
My new MP15YA burner doesn't sit flat in the drip pan – what should I do?
Answered by Support Team  ·  Jan 8, 2025
If the element does not lie flat, make sure the two connection prongs (bolts) on the Y-bracket are parallel to each other and pushed slightly downward into the receptacle. Also confirm your drip pan is at least 6.2 inches in diameter. If the element still won't seat correctly, check that your drip pan is compatible with the Y-bracket style.
Does this element replace part numbers WPY04100165 and AP6024130?
Answered by Support Team  ·  Jul 22, 2024
Yes. The MP15YA is a direct aftermarket replacement for WPY04100165, AP6024130, WP660532, 660532, Y707456, 715927, MP15MA, SU233, PS11743366, and over 30 other OEM cross-reference numbers. Always verify by matching the 6-inch / 4-turn / Y-bracket specification to your original part.
Should I also replace the receptacle block (330031) when I change the burner element?
Answered by Support Team  ·  Feb 10, 2026
It is strongly recommended. The receptacle block is the plastic plug the element prongs seat into. Corrosion or carbon build-up on the receptacle terminals is a very common cause of heating failure, and a new element installed into a damaged receptacle can fail prematurely. If you see any discoloration or burning on the old receptacle, replace it with a 330031 kit at the same time for a complete and lasting repair.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.




    Customer Reviews

    Reviews

    There are no reviews yet.

    Be the first to review "MP15YA" Cancel reply

    Your email address will not be published. Required fields are marked *
