Home/Washer & Dryer Parts/Dryer Thermal Fuse/279816
279816 Thermal Cut-Off Kit Compatible with Whirlpool Kenmore Maytag, Replaces AP3094244 3399848 3977393 279816VP
  • 279816_1
  • 279816_2
  • 279816_3
  • 279816_4
  • 279816_5
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 121 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

279816 Thermal Cut-Off Kit Compatible with Whirlpool Kenmore Maytag, Replaces AP3094244 3399848 3977393 279816VP

SKU: 279816
Order within --:-- to ship today
Repair Time15-30 Minutes
DifficultyEasy
DIY FriendlyYes
Tools Needed
Phillips ScrewdriverNeedle-Nose PliersMultimeter
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
279816 Thermal Cut-Off Kit Compatible with Whirlpool Kenmore Maytag, Replaces AP3094244 3399848 3977393 279816VP
In Stock

This Part Fixes These Problems

No Heat

Dryer drum spins normally but produces no heat. The blown thermal cut-off fuse interrupts the circuit to the heating element, stopping all heat output.

Takes Too Long to Dry

Clothes remain damp after a full cycle. A partially degraded thermostat causes the heating element to cycle incorrectly, reducing effective drying temperature.

Dryer Won't Start

Dryer fails to start at all when the thermal cut-off fuse is completely open. The safety circuit prevents operation until the faulty component is replaced.

Timer Will Not Advance

The cycle timer stalls and does not progress. This is commonly linked to a failed thermal cut-off preventing proper heat generation that drives the auto-dry timer logic.

Dryer Runs Too Hot

A failed high-limit thermostat stuck in a closed-circuit condition allows temperatures to rise unchecked. Replacing the kit resets proper overheat protection.

Repair Guides

OEM vs Aftermarket LG Dryer Heating Element: Honest Comparison (5301EL1001J)
May 28, 2026
Whirlpool, Kenmore & Maytag Dryer Thermal Cut-Off Kit Parts — Models & Compatibility
May 28, 2026
OEM vs Aftermarket 279816 Thermal Cut-Off Kit for Whirlpool: Honest Comparison
May 23, 2026

Product Description

Why Choose Our 279816 Thermal Cut-Off Kit?

🔧
Built to OEM SpecificationsEngineered to match the original Whirlpool 279816 spec: high-limit thermostat rated at 250°F (L250-80F) and thermal cut-off fuse rated at 309°F — identical trip points to the factory part.
🛡️
Complete Safety KitPrevents your dryer from overheating when the high-limit thermostat fails in a closed-circuit condition. Protects heating element, drum, and wiring from fire risk caused by excessive heat.
🔌
Everything Included – No Extra TripsKit ships with the high-limit thermostat, cut-off fuse, jumper wires, and female spade terminals — all hardware needed to replace both old-style push-on and new-style screw-mount thermostats.
🏠
Wide Brand CompatibilityOne kit fits over 11 brands sharing the Whirlpool platform: Whirlpool, Kenmore, Maytag, Roper, KitchenAid, Amana, Crosley, Estate, Inglis, Admiral, and Magic Chef electric dryers.
⚡
Drop-In ReplacementDirectly replaces AP3094244, 3399848, 3977393, 279816VP, PS334299, AH334299, EA334299, and 2651 — no modifications or adapters required for most compatible models.
🔨
DIY-Friendly in Under 30 MinutesAccessible from the back panel with only a Phillips screwdriver and needle-nose pliers. No special tools or technical experience required — thousands of homeowners have completed this repair themselves.

💡 Pro Tip: How to Know Your Thermal Cut-Off Kit Has Failed

Your part is likely the culprit if you notice any of the following:

⚠️ Dryer runs but produces no heat at all

⚠️ Clothes take multiple cycles to dry completely

⚠️ Dryer will not start even though the door closes properly

⚠️ Timer does not advance during the cycle

🔬 Diagnostic Tip: Set your multimeter to R×1 and probe each terminal of the thermostat and fuse at room temperature. A good component reads zero (continuity). A reading of infinity means the part has blown and must be replaced. Always inspect and clear the exhaust vent after replacing this kit — a clogged vent is the #1 cause of thermal cut-off failure and will blow the new part prematurely.

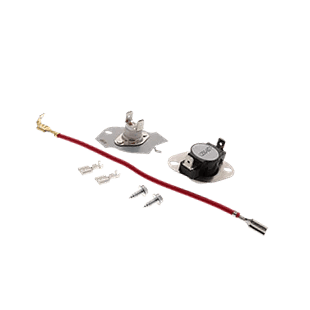

📦 What's in the Box

✅ 1× High-Limit Thermostat (250°F / L250-80F)

✅ 1× Thermal Cut-Off Fuse (309°F)

✅ Jumper Wire Set

✅ Female Spade Terminals (for old-style push-on thermostat replacement)

Questions & Answers

What does the 279816 kit include?
Answered by Support Team  ·  Mar 15, 2024
The 279816 Thermal Cut-Off Kit includes one high-limit thermostat (250°F / L250-80F), one thermal cut-off fuse (309°F), jumper wires, and female spade terminals. All hardware needed for both old-style push-on and new-style screw-mount installations is provided — no separate purchases required.
How do I know if my thermal cut-off kit is bad?
Answered by Support Team  ·  Nov 20, 2023
The most reliable test is a multimeter continuity check. Set to R×1, probe each terminal of the thermostat and fuse at room temperature. A good part reads zero (continuity). A reading of infinity means the component has blown and needs replacement. Common symptoms include no heat, dryer not starting, or a timer that refuses to advance.
Will this kit fit my Kenmore dryer?
Answered by Support Team  ·  Jan 8, 2025
This 279816 kit is compatible with a large number of Kenmore dryers built on the Whirlpool platform. However, not all Kenmore dryers use this kit — some models require the 279769 kit instead. We recommend verifying your full model number before ordering. Common compatible Kenmore models include 11061202011 and 11061402311.
Why does my thermal cut-off keep blowing after replacement?
Answered by Support Team  ·  Jul 22, 2024
A repeatedly blown thermal cut-off almost always indicates a restricted exhaust vent. Lint buildup in the duct from the dryer to the exterior vent cap prevents proper airflow, causing the dryer to overheat and trip the safety fuse. Always thoroughly clean the entire vent path whenever you replace this kit. Also check the lint screen for waxy residue from dryer sheets, which can restrict airflow even when the screen appears clean.
Is this an easy DIY repair? What tools do I need?
Answered by Support Team  ·  Feb 10, 2026
Yes — this is one of the most beginner-friendly dryer repairs available. Most homeowners complete it in 15–30 minutes. You only need a Phillips screwdriver to remove the back panel, needle-nose pliers to disconnect the wire terminals, and a multimeter to confirm the diagnosis beforehand. No special appliance tools are required.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.




    Customer Reviews

    Reviews

    There are no reviews yet.

    Be the first to review "279816" Cancel reply

    Your email address will not be published. Required fields are marked *
