Home/Washer & Dryer Parts/Washing Machine Water Inlet Valve/12001677

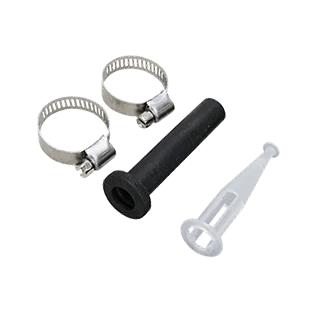

12001677 Washer Injector Tube Nozzle Kit Compatible with Maytag Jenn-Air Top Load Washer, Replaces AP4009459 PS2003241 AH2003241 EA2003241 12001677VP 400646
  • 12001677_1
  • 12001677_2
  • 12001677_3
  • 12001677_4
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 72 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

12001677 Washer Injector Tube Nozzle Kit Compatible with Maytag Jenn-Air Top Load Washer, Replaces AP4009459 PS2003241 AH2003241 EA2003241 12001677VP 400646

SKU: 12001677
Order within --:-- to ship today
Repair Time25-35 Minutes
DifficultyEasy
DIY FriendlyYes
Tools Needed
Phillips ScrewdriverPutty KnifePliers
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
12001677 Washer Injector Tube Nozzle Kit Compatible with Maytag Jenn-Air Top Load Washer, Replaces AP4009459 PS2003241 AH2003241 EA2003241 12001677VP 400646
In Stock

This Part Fixes These Problems

Leaking Top-Left

Corroded or cracked sleeve allows water to escape at hose connection

Restricted Fill

Clogged nozzle reduces water flow causing slow or incomplete fill cycles

Rust in Wash Water

Corroded injector deposits rust particles into wash load

Repair Guides

OEM vs Aftermarket Washer Injector Tube Nozzle Kit for Maytag: Honest Comparison (12001677)
May 29, 2026
How to Extend Your Maytag Washer Injector Tube Life — Maintenance Guide
May 29, 2026
Maytag Washer Leaking Water or Won't Fill — 4 Causes & How to Fix
May 26, 2026
How to Replace 12001677 Washer Injector Tube Nozzle Kit on Maytag Top Load Washer — Step-by-Step
May 25, 2026

Product Description

Why Choose Our 12001677 Washer Injector Tube and Nozzle Kit?

🔧
Built to OEM SpecificationsSleeve diameter, nozzle outlet geometry, and worm clamp sizing all match the original Maytag 12001677 assembly. Every component needed is in the kit — sleeve, nozzle, and both clamps. Nothing else to order.
💧
Complete Kit — Fix It OnceInjector nozzles on older Maytag top-loaders corrode and clog from hard water and old pipes. This kit replaces the entire assembly in one shot. No partial fix, no second trip to the parts store. Sleeve plus nozzle plus clamps — done.
🛠️
In and Out — 30 MinutesRelease two spring clips on the front edge, lift the top panel, and the injector is right there in the top-left corner. Loosen the worm clamp, pull the old assembly off the hose, push the new one on, re-clamp. Run a short cycle with the top open to confirm no drips before closing up.
🏭
Factory Direct — No Middleman MarkupA $150+ service call becomes a $20 part and 30 minutes of your time. We ship direct from our own facility — no distributor markups, no retail premiums.
✅
Proven Fit — 1-Year WarrantyDesigned for Maytag and Jenn-Air top-load washers with the injector-style water inlet common on direct-drive models from the 1990s through 2000s. 1-year warranty, 30-day hassle-free returns.

💡 Pro Tip: Confirm the Injector Is Leaking

Your part is likely the culprit if you notice any of the following:

⚠️ Water dripping from the top-left corner of the washer

⚠️ Visible rust staining or mineral deposits around the nozzle

⚠️ Hissing sound or slow fill during the fill cycle

⚠️ Injector sleeve is cracked, split, or visibly corroded

Lift the washer top and watch during a fill cycle. Active dripping from the sleeve-to-hose connection, rust staining on the outer tub wall, or a hissing restricted-flow sound all confirm the injector — not the inlet valve or the tub seal.

📦 What's in the Box

✅ 1x Injector Sleeve

✅ 1x Nozzle

✅ 2x Worm Clamps

Questions & Answers

How do I tell it is the injector and not the tub seal leaking?
Answered by Support Team  ·  Jun 14, 2024
Location is everything. Injector leaks show up at the top-left corner, dripping down the outside of the tub. Tub seal leaks appear at the bottom and only during spin. Lift the washer top and watch during a fill cycle — active dripping near the top-left fitting confirms the injector.
Does this kit include the hose?
Answered by Support Team  ·  Nov 2, 2023
No — just the sleeve, nozzle, and two worm clamps. The fill hose itself rarely fails. If yours is cracked or brittle, order it separately. The new clamps in this kit will reseal the existing hose connection properly.
Is 12001677 the same part as 400646?
Answered by Support Team  ·  Feb 10, 2025
Yes. 400646 is the original Maytag part number. When Whirlpool absorbed Maytag's parts catalog it was reissued as 12001677. AP4009459 and PS2003241 are retailer catalog cross-references.
My washer is 40 years old — is this repair worth it?
Answered by Support Team  ·  Jan 28, 2024
If the machine is otherwise running well, absolutely. This is one of the cheapest repairs on older Maytag top-loaders. The fix costs almost nothing compared to a replacement machine.
Will the new nozzle fit my existing water hose?
Answered by Support Team  ·  Jul 19, 2023
Yes in most cases. If the hose end is deformed from years of compression, trim it back an inch for a clean seating surface before clamping.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.




    Customer Reviews

    Reviews

    There are no reviews yet.

    Be the first to review "12001677" Cancel reply

    Your email address will not be published. Required fields are marked *

    Related Parts

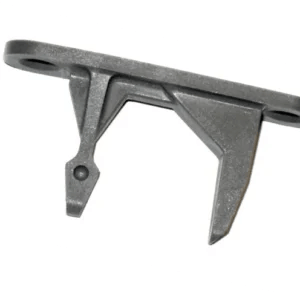

    131763302 Door Striker Compatible with Frigidaire Electrolux Crosley Kenmore, Replaces AP4508273 134456640 134456602 PS2378364
    131763302
    131763302 Door Striker Compatible with Frigidaire Electrolux Crosley Kenmore, Replaces AP4508273 134456640 134456602 PS2378364
    W10006355 Washer Shift Actuator Compatible with Whirlpool Maytag Kenmore Amana, Replaces WPW10006355 AP6014711 PS11747977 1719787
    W10006355
    W10006355 Washer Shift Actuator Compatible with Whirlpool Maytag Kenmore Amana, Replaces WPW10006355 AP6014711 PS11747977 1719787
    $79.99 Original price was: $79.99.$52.99Current price is: $52.99.

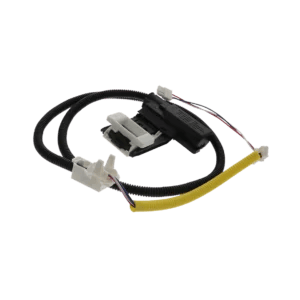

    W11307244 Washer Lid Lock Assembly Compatible with Whirlpool Maytag Amana Kenmore, Replaces W10682535 W10838613 W11253733 AP6832601
    W11307244
    W11307244 Washer Lid Lock Assembly Compatible with Whirlpool Maytag Amana Kenmore, Replaces W10682535 W10838613 W11253733 AP6832601
    $94.99 Original price was: $94.99.$57.99Current price is: $57.99.

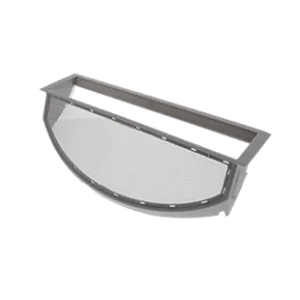

    WE18M28 Dryer Lint Screen Filter Assembly Compatible with GE Hotpoint Fisher Paykel RCA Dryer, Replaces WE18X25100 AP6037511 PS11767017 WE18M19 WE18M21 WE18M22 WE18M23 WE18M25 WE18M27 WE18M29 WE18M30 DE5100 4457047
