Home/Refrigerator Parts/Refrigerator Evaporator Fan Motor/240369701

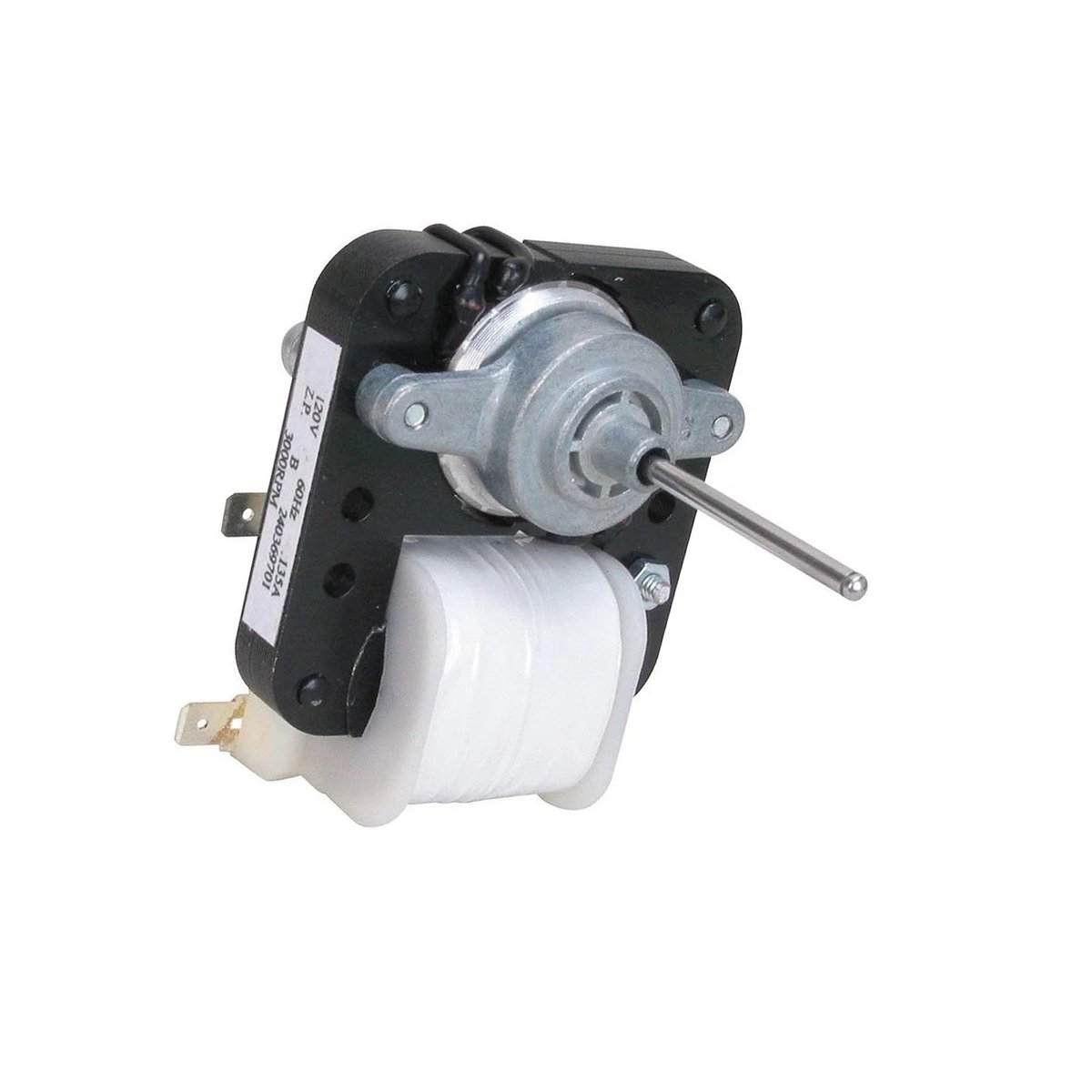

240369701 Refrigerator Evaporator Fan Motor Compatible with Frigidaire Kenmore Electrolux, Replaces AP4700070 PS3419839 5304445861 241537301
  • 240369701 01
  • 240369701 02
  • 240369701 03
  • 240369701 04
  • 240369701 05
  • 240369701 06
  • 240369701 07
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 70 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

240369701 Refrigerator Evaporator Fan Motor Compatible with Frigidaire Kenmore Electrolux, Replaces AP4700070 PS3419839 5304445861 241537301

SKU: 240369701
Order within --:-- to ship today
Repair Time30-45 Minutes
DifficultyModerate
DIY FriendlyYes
Tools Needed
14" Nut DriverPhillips ScrewdriverFlathead ScrewdriverNeedle-Nose PliersMultimeterWork Gloves
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
240369701 Refrigerator Evaporator Fan Motor Compatible with Frigidaire Kenmore Electrolux, Replaces AP4700070 PS3419839 5304445861 241537301
In Stock

This Part Fixes These Problems

Refrigerator Not Cooling

The evaporator fan motor circulates cold air through the fresh food compartment. When it fails, the fridge section warms up even though the compressor is still running.

Freezer Too Warm

A failed evaporator fan stops airflow over the cooling coils, causing the freezer to lose temperature and food to begin thawing.

Loud Grinding or Buzzing Noise

Worn motor bearings cause a grinding, buzzing, or rattling noise from the back wall of the freezer. Replacing the motor eliminates the noise immediately.

Both Fridge and Freezer Too Warm

On single-evaporator models, one failed fan motor affects both compartments simultaneously, causing warm temperatures throughout the entire refrigerator.

Repair Guides

Frigidaire Refrigerator Evaporator Fan Motor Parts — Models & Compatibility
May 30, 2026
How to Replace 240369701 Evaporator Fan Motor on Frigidaire Refrigerator — Step-by-Step
May 28, 2026
OEM vs Aftermarket Evaporator Fan Motor for Frigidaire: Honest Comparison (240369701)
May 25, 2026
Frigidaire Refrigerator Too Warm — 5 Causes & How to Fix
May 25, 2026
How to Extend Your Frigidaire Evaporator Fan Motor Life — 240369701 Maintenance Guide
May 24, 2026

Product Description

Why Choose Our 240369701 Refrigerator Evaporator Fan Motor?

🔧
Built to OEM SpecificationsEngineered to exact OEM specs: 120V, 60Hz, 0.135A, 3000RPM with a 1-3/4" shaft and three male terminals (2-1/4" and 3/16") — a direct plug-in replacement requiring no wire splicing.
❄️
Restores Efficient CoolingCirculates air over the evaporator (cooling) coils and distributes cold air throughout both the fresh food and freezer compartments, bringing your refrigerator back to optimal temperature.
🔇
Eliminates Grinding NoiseWorn motor bearings cause loud grinding or buzzing from the freezer area. This precision-balanced replacement motor runs quietly and smoothly from day one.
🏷️
Wide Cross-Reference CompatibilityReplaces AP4700070, PS3419839, AH3419839, EA3419839, 5303918549, 5304445861, 241537301, 240315801, 240315802, 240315803, 240369702, 1637660, and ER240369701 — one part covers dozens of superseded numbers.
🏠
Multi-Brand FitCompatible with Frigidaire, Kenmore, Electrolux, Gibson, White-Westinghouse, Crosley, and Uni refrigerators and freezers — one of the most widely used evaporator fan motors in the industry.
🛠️
DIY-Friendly InstallationNo special training required. Most homeowners complete this repair in 30–45 minutes using only a nut driver and a Phillips screwdriver. The original terminals plug straight in — no wiring work needed.

💡 Pro Tip: How to Confirm Your Evaporator Fan Motor Has Failed

Your part is likely the culprit if you notice any of the following:

⚠️ Refrigerator or freezer section is warmer than normal despite the compressor running

⚠️ Loud grinding, buzzing, or squealing noise coming from the back of the freezer compartment

⚠️ Fan blade does not spin freely when turned by hand — indicates worn-out bearings

⚠️ Motor shows no continuity on multimeter test across windings — motor is electrically open

🔍 Tech Tip: Open the freezer door and press the door switch manually. If the fan does not start spinning within a few seconds, the motor is likely failed. Always unplug the refrigerator before accessing the evaporator fan — it sits behind the rear panel of the freezer compartment, typically behind the ice maker assembly.

📦 What's in the Box

✅ 1× Evaporator Fan Motor 240369701 (120V / 60Hz / 0.135A / 3000RPM, 1-3/4" shaft)

Questions & Answers

Will part 240369701 fit my Frigidaire FRS26R4AW0 refrigerator?
Answered by Support Team  ·  Mar 15, 2024
Yes. The FRS26R4AW0 is on the confirmed compatibility list for part 240369701. This motor runs at 120V / 60Hz / 0.135A / 3000RPM and connects via three male terminals matching the original harness — no splicing required.
What is the difference between 240369701 and 240369702?
Answered by Support Team  ·  Nov 20, 2023
Part 240369702 is a later supersession of 240369701. Our replacement part cross-references both numbers and is fully interchangeable with either. The electrical ratings (120V, 60Hz, 0.135A, 3000RPM) and terminal configuration are identical.
My Kenmore refrigerator (model 253.71832104) is not cooling. Will this motor fix it?
Answered by Support Team  ·  Jan 8, 2025
The Kenmore 253.71832104 is a confirmed compatible model for part 240369701. Before replacing, press the freezer door switch manually — if the fan does not spin up, the motor is likely the culprit. You can also test continuity across the motor windings with a multimeter; no continuity confirms a failed motor.
Does this replacement motor include the fan blade?
Answered by Support Team  ·  Jul 22, 2024
No, the package includes the motor only. You should reuse the original fan blade from your existing motor by sliding it off the old shaft and onto the new one. The shaft diameter and blade hub are the same dimensions as the OEM part.
My refrigerator makes a loud grinding noise from the freezer. Is the evaporator fan motor the likely cause?
Answered by Support Team  ·  Feb 10, 2026
Yes — grinding, buzzing, or squealing from the back of the freezer compartment is a classic symptom of worn evaporator fan motor bearings. Open the freezer and press the door switch while listening; if the noise comes from the fan area, replacing part 240369701 will resolve it. Also check for any ice buildup around the fan blade that could cause rubbing.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.




    Customer Reviews

    Reviews

    There are no reviews yet.

    Be the first to review "240369701" Cancel reply

    Your email address will not be published. Required fields are marked *

    Related Parts

    4389102 Ice Maker Optic Emitter & Receiver Control Board Kit Compatible with Whirlpool KitchenAid Kenmore Maytag, Replaces W10757851 W10290817 2198586 AP5956767
    4389102
    4389102 Ice Maker Optic Emitter & Receiver Control Board Kit Compatible with Whirlpool KitchenAid Kenmore Maytag, Replaces W10757851 W10290817 2198586 AP5956767
    W10189703 Refrigerator Evaporator Fan Motor Compatible with Whirlpool Maytag KitchenAid Kenmore, Replaces WPW10189703 AP6016598 W10208121 2219647
    W10189703
    W10189703 Refrigerator Evaporator Fan Motor Compatible with Whirlpool Maytag KitchenAid Kenmore, Replaces WPW10189703 AP6016598 W10208121 2219647
    $49.99 Original price was: $49.99.$33.99Current price is: $33.99.
    W10321304 Refrigerator Door Shelf Bin Compatible with Whirlpool Maytag KitchenAid Kenmore, Replaces WPW10321304 AP6019471 2179574 PS11752778
    W10321304
    W10321304 Refrigerator Door Shelf Bin Compatible with Whirlpool Maytag KitchenAid Kenmore, Replaces WPW10321304 AP6019471 2179574 PS11752778
    W10671238 Refrigerator Center Crisper Drawer Slide Rail Compatible with Whirlpool Maytag KitchenAid Amana Kenmore, Replaces WPW10671238 AP6023702 67001057 8208354 12530701
    W10671238
    W10671238 Refrigerator Center Crisper Drawer Slide Rail Compatible with Whirlpool Maytag KitchenAid Amana Kenmore, Replaces WPW10671238 AP6023702 67001057 8208354 12530701
    $33.99 Original price was: $33.99.$24.99Current price is: $24.99.

    Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
