Fridge compartment temperature rises because the fan motor fails to circulate cold air from the evaporator coils — refrigerator feels warm despite compressor running.
Freezer section loses adequate cooling when the evaporator fan stops moving air over the cooling coils, leaving the freezer too warm.
Failed or failing motor bearings cause grinding, buzzing, or squealing sounds audible from the freezer section during operation.
Lack of airflow from a dead fan motor causes moisture to freeze directly on the coils instead of being properly circulated and removed.
When the fan motor fails, the thermostat detects insufficient cooling and keeps the compressor running non-stop to compensate, increasing energy consumption.
💡 Pro Tip: Diagnosing a Failing Evaporator Fan Motor
Your part is likely the culprit if you notice any of the following:
⚠️ Refrigerator or freezer not cooling properly despite compressor running
⚠️ Unusual grinding, buzzing, or squealing noise coming from the freezer section
⚠️ Frost or ice buildup on the evaporator coils due to poor air circulation
⚠️ Refrigerator runs continuously or cycles on and off more frequently than normal
🔍 Quick test: Open the freezer and try spinning the fan blade by hand. If it doesn't spin freely, or if the motor shows no continuity on a multimeter, replacement is confirmed. Always unplug the refrigerator before testing.
📦 What's in the Box

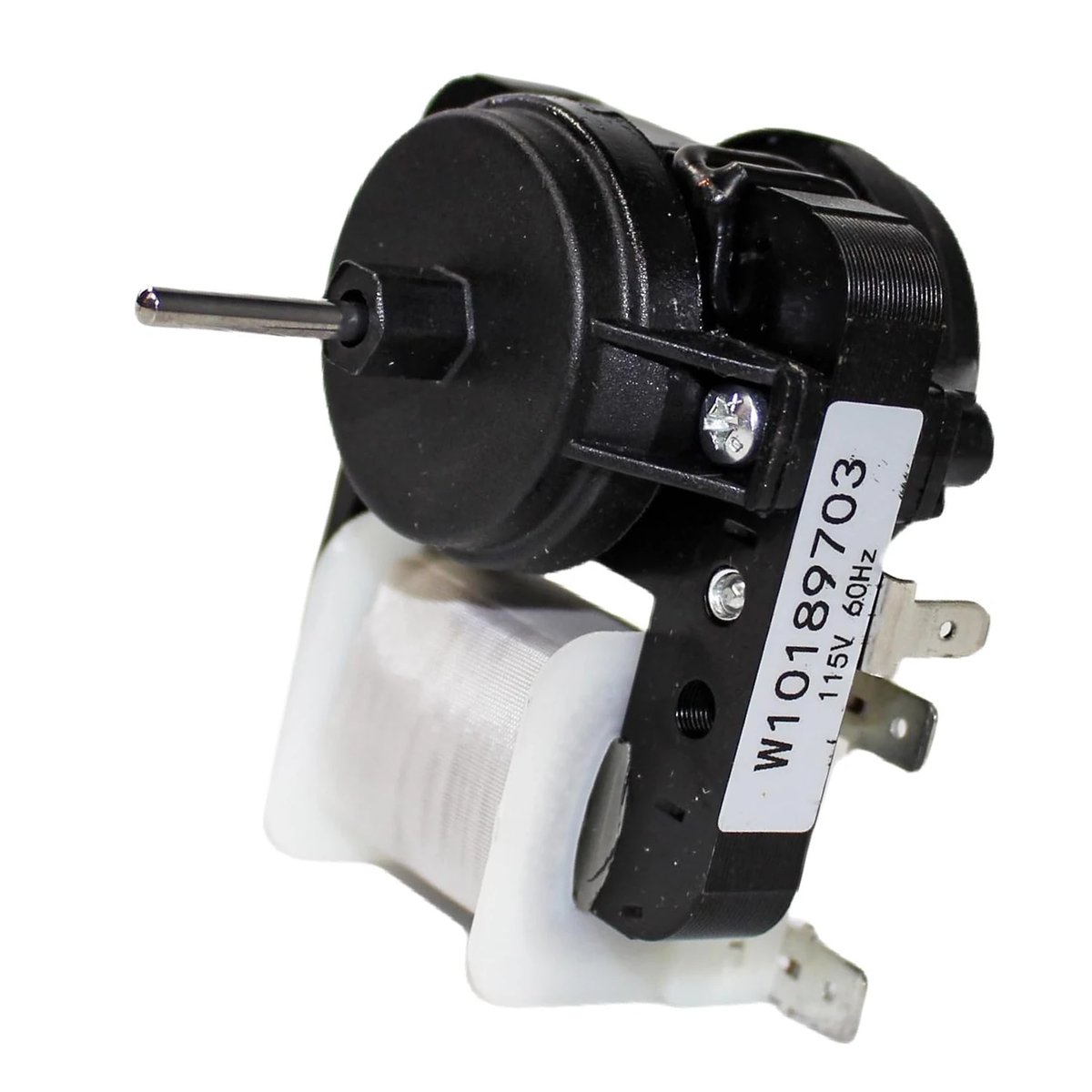

✅ 1× Evaporator Fan Motor (120V / 60Hz / 3000 RPM / 0.135A, shaft 3/4" × 1/3")
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
