Home/Refrigerator Parts/Compressor Start Relay & Overload/WR07X10097
On Sale

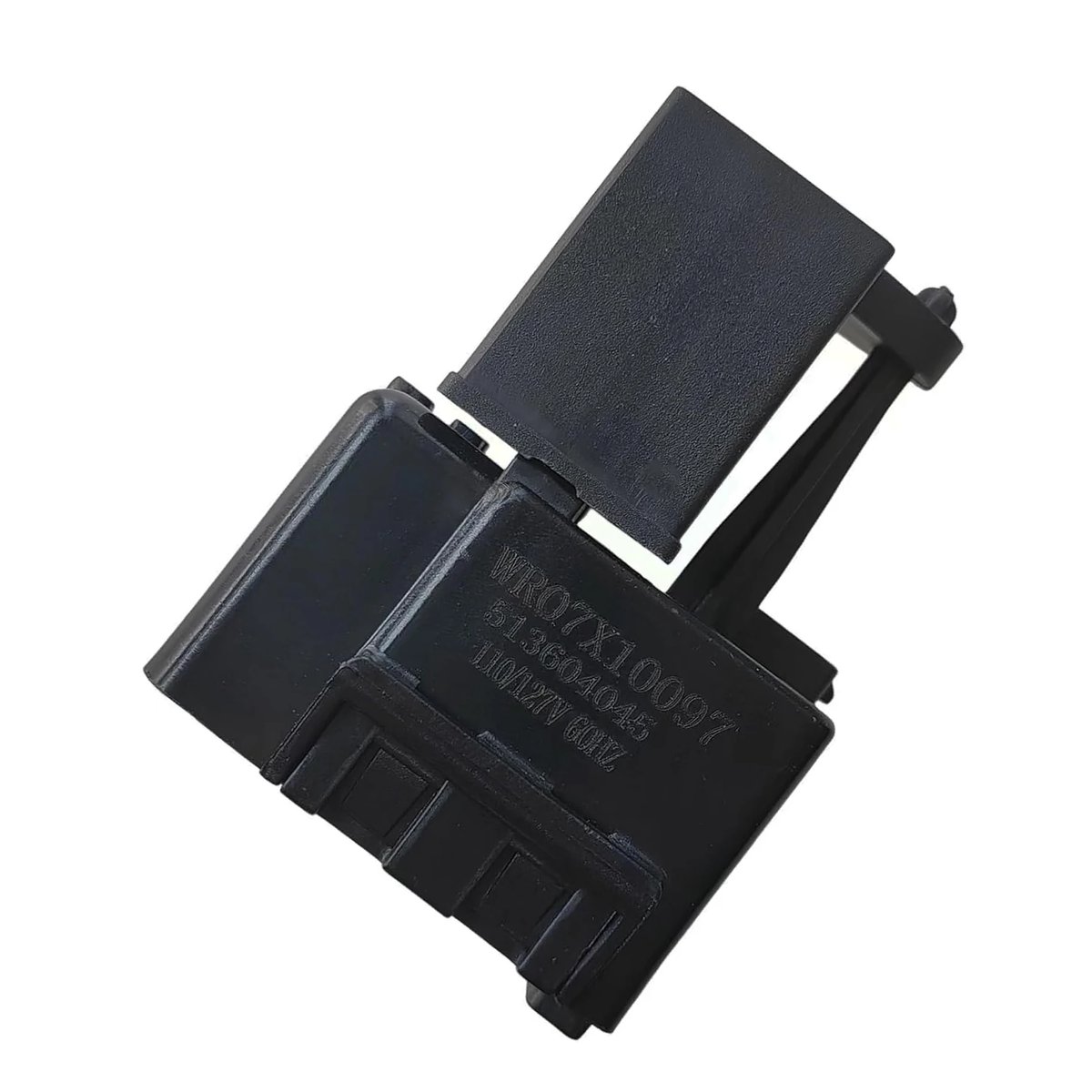

WR07X10097 PTC Start Relay & Overload Assembly Compatible with GE Hotpoint, Replaces AP4300623 PS1766101 1265640 513604045
  • WR07X10097 PTC Start Relay & Overload Assembly Compatible with GE Hotpoint, Replaces AP4300623 PS1766101 1265640 513604045
  • WR07X10097 PTC Start Relay & Overload Assembly Compatible with GE Hotpoint, Replaces AP4300623 PS1766101 1265640 513604045
  • WR07X10097 PTC Start Relay & Overload Assembly Compatible with GE Hotpoint, Replaces AP4300623 PS1766101 1265640 513604045
  • WR07X10097 PTC Start Relay & Overload Assembly Compatible with GE Hotpoint, Replaces AP4300623 PS1766101 1265640 513604045
  • WR07X10097 PTC Start Relay & Overload Assembly Compatible with GE Hotpoint, Replaces AP4300623 PS1766101 1265640 513604045
  • WR07X10097 PTC Start Relay & Overload Assembly Compatible with GE Hotpoint, Replaces AP4300623 PS1766101 1265640 513604045
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 24 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

WR07X10097 PTC Start Relay & Overload Assembly Compatible with GE Hotpoint, Replaces AP4300623 PS1766101 1265640 513604045

SKU: WR07X10097
OEM RetailBranded
$106.77
Via distributor
Source: PartSelect.com · Apr 2026
OEM brand & packaging
Factory direct price
1-year warranty
Our PartBest Value
$58.99
Factory direct
OEM-Compatible
Meets OEM specifications
Factory direct price
1-year warranty
Save by going factory direct
OEM-compatible · no distributor markup
$47.78
45% less than OEM retail
Order within --:-- to ship today
Repair Time15-25 Minutes
DifficultyEasy
DIY FriendlyYes
Tools Needed
Phillips ScrewdriverNut DriverMultimeter (optional for testing)optional
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
WR07X10097 PTC Start Relay & Overload Assembly Compatible with GE Hotpoint, Replaces AP4300623 PS1766101 1265640 513604045
$96.99 Original price was: $96.99.$58.99Current price is: $58.99.
In Stock

This Part Fixes These Problems

Refrigerator Not Cooling

Compressor fails to start or runs only briefly before shutting off, causing fridge and freezer temps to rise.

Compressor Clicking / Won't Start

Repeated clicking or humming every few minutes as the compressor attempts to start then trips on overload.

Compressor Overheating & Tripping

Overload protector repeatedly cuts power due to excessive current draw or high compressor temperature.

Refrigerator Completely Dead

Fridge appears to have no cooling activity — fan may run but compressor never engages due to failed start device.

Repair Guides

OEM vs Aftermarket PTC Start Relay for GE Refrigerators: Honest Comparison (WR07X10097)
May 29, 2026
GE Refrigerator PTC Start Relay & Overload Parts — Models & Compatibility
May 27, 2026
GE Refrigerator Won't Start — 5 Causes & How to Fix WR07X10097
May 25, 2026

Product Description

Why Choose Our WR07X10097 PTC Start Relay & Overload Assembly?

🔧
Built to OEM SpecificationsEngineered to match OEM dimensions and electrical ratings: 115/127V, 60Hz, 12µF 250VAC — a direct drop-in for GE Embraco compressor models.
⚡
PTC Start Device + Overload in One UnitCombines the PTC start relay (kicks off compressor startup) and overload protector (cuts power on overcurrent or overtemperature) in a single plug-in assembly.
🧊
Restores Cooling PerformanceReplacing a failed start device stops repeated clicking from the compressor area and restores normal refrigerator cooling — often the most cost-effective repair available.
🏷️
Wide Cross-Reference CompatibilityReplaces AP4300623, PS1766101, 1265640, 513604045, AH1766101, EA1766101, EAP1766101. Compatible with GE, Hotpoint, Haier, Monogram, and Café brand refrigerators.
🛠️
Tool-Free Plug-In InstallationMounts directly onto compressor pins. No soldering or special tools required. Transfer wire harness and capacitor from old unit in the same orientation — done in under 20 minutes.
💰
Save vs. OEM PricingOEM equivalent listed at $106–$116 at major parts sites. Our aftermarket replacement delivers the same function at a fraction of the cost — no service call needed.

💡 Pro Tip: How to Diagnose a Failed Start Relay & Overload

Your part is likely the culprit if you notice any of the following:

⚠️ Refrigerator not cooling — compressor tries to start but shuts off after 1–2 seconds

⚠️ Loud clicking or humming sound from behind or beneath the fridge every few minutes

⚠️ Compressor is hot to the touch but fan runs normally

⚠️ Visible heat damage, cracking, or burnt odor near the start device on the compressor

🔍 Quick Test: Remove the relay assembly and shake it — if you hear a rattle, it is defective and needs replacement. You can also test resistance across the overload terminals; a healthy reading is approximately 5–6 ohms. If the relay is open or rattles, replace this assembly before condemning the compressor.

📦 What's in the Box

✅ 1× WR07X10097 PTC Start Relay & Overload Protector Assembly (115/127V, 60Hz, 12µF 250VAC, for Embraco compressors)

Questions & Answers

Does this WR07X10097 assembly include both the PTC start relay and the overload protector?
Answered by Support Team  ·  Mar 15, 2024
Yes. This assembly combines both the PTC (Positive Temperature Coefficient) start relay and the overload protector into a single unit. The PTC relay manages compressor startup and disengages once the motor reaches operating speed. The overload protector interrupts power if current draw or temperature becomes excessive, protecting the compressor from damage.
Do I also need to replace the run capacitor when I install WR07X10097?
Answered by Support Team  ·  Nov 20, 2023
The WR07X10097 assembly does NOT include a run capacitor. If your original installation included a separate run capacitor (typically 12µF 250VAC, GE part WR55X24064), you should transfer the existing capacitor onto the new assembly — provided it tests good. If the capacitor is also faulty, replace it separately. Some Embraco compressor variants do not use a capacitor; check your original setup before ordering.
My GE Profile PFS22SISBSS refrigerator is clicking every few minutes and not cooling. Will this part fix it?
Answered by Support Team  ·  Jan 8, 2025
Clicking every 2–3 minutes followed by the compressor shutting off is a classic symptom of a failed PTC start relay or overload protector. The WR07X10097 is the correct assembly for your PFS22SISBSS model. Before ordering, perform a quick shake test: remove the relay and shake it — if you hear an internal rattle, it is confirmed defective. This is one of the most common and least expensive refrigerator repairs.
What are the electrical specifications of this start relay assembly?
Answered by Support Team  ·  Jul 22, 2024
The WR07X10097 PTC start relay and overload assembly is rated for 115/127V at 60Hz and is designed for Embraco (TSD series) compressors commonly used in GE Profile French door and bottom-freezer refrigerators. The associated run capacitor, when used, is 12µF at 250VAC. The relay operates by presenting high resistance once warm, causing it to drop out of the start circuit — no moving parts in the PTC element itself.
Is this part compatible with brands other than GE — such as Hotpoint or Haier?
Answered by Support Team  ·  Feb 10, 2026
Yes. GE manufactures appliances under several brand names, and the WR07X10097 is compatible with GE, Hotpoint, Haier, Monogram, and Café refrigerators that use the same Embraco compressor platform. It is also used on KitchenAid models that were fitted with Embraco (EGYS-series) compressors during service. Always verify by matching the compressor model number or refrigerator model number before purchase.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.




    Customer Reviews

    Reviews

    There are no reviews yet.

    Be the first to review "WR07X10097" Cancel reply

    Your email address will not be published. Required fields are marked *
