Home/Washer & Dryer Parts/Washer Water Inlet Valve/WH13X10024

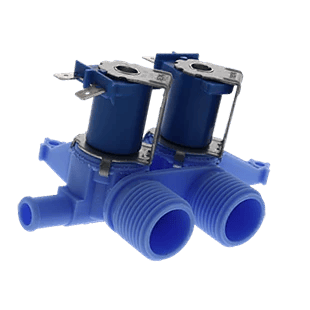

WH13X10024 Dual Water Inlet Valve Compatible with GE Hotpoint RCA Kenmore Washers, Replaces AP3861119 PS1155105 WH13X0086 WH13X10019

Factory Certified

Free Ship $49+

30-Day Returns

1-Year Warranty

Compatible Models

Showing 113 compatible models

Aftermarket Replacement · Factory Direct

OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

WH13X10024 Dual Water Inlet Valve Compatible with GE Hotpoint RCA Kenmore Washers, Replaces AP3861119 PS1155105 WH13X0086 WH13X10019

Name: WH13X10024 Dual Water Inlet Valve
SKU: WH13X10024
Availability: InStock

SKU: WH13X10024

Order within --:-- to ship today

Repair Time15-25 Minutes

DifficultyEasy

DIY FriendlyYes

Tools Needed

Phillips ScrewdriverNeedle-Nose PliersTowel or Bucket

Qty

Ships from China · 10–20 business days

No sales tax outside CA

WH13X10024 Dual Water Inlet Valve Compatible with GE Hotpoint RCA Kenmore Washers, Replaces AP3861119 PS1155105 WH13X0086 WH13X10019

In Stock

This Part Fixes These Problems

Washer Won't Fill

Washer tub does not fill with water or fills extremely slowly during wash or rinse cycles due to failed solenoid coil or clogged valve body.

Fills When Off

Washer continues to fill with water even when turned off or unplugged, indicating a solenoid stuck in the open position.

Only Hot or Only Cold Water

Washer fills exclusively with hot or cold water regardless of temperature setting because one solenoid port has failed internally.

Water Leaking from Valve Area

Water leaks from the rear of the washer at the valve mounting point due to cracked valve body, worn seals, or loose inlet hose connections at the valve.

Water Drips Into Tub Between Cycles

Mineral deposits or sediment hold the valve partially open after the cycle ends, causing slow dripping into the tub when the washer is idle.

Inconsistent Water Temperature

Wash water temperature varies unpredictably between cycles because a partially failing dual solenoid cannot maintain consistent hot/cold flow ratios.

Repair Guides

GE Washer Won't Fill With Water — 7 Causes & How to Fix WH13X10024

May 27, 2026

Product Description

Why Choose Our WH13X10024 Dual Water Inlet Valve?

🔧

Built to OEM SpecificationsEngineered to match GE OEM WH13X10024 dimensions and electrical specs — 120V, 60Hz dual solenoid coil design with rear-mount bracket for a direct drop-in replacement on compatible GE-platform top-load washers.

💧

Precision Dual-Port Water ControlHot and cold solenoid ports open and close independently based on the selected wash temperature, delivering the correct water mix every cycle — restoring accurate temperature control lost when your original valve fails.

🏗️

Durable ABS + Stainless Internal ConstructionValve body molded from reinforced ABS plastic for toughness and corrosion resistance; internal flow paths use stainless-grade materials for moisture resistance and long service life — avoiding the mineral-deposit failures common in cheaper alternatives.

🔄

Broad Cross-Reference CompatibilityReplaces more than 12 obsolete part numbers including WH13X86, WH13X87, WH13X10019, WH13X10004, WH13X0086, WH13X0087, AP3861119, PS1155105, AH1155105, EA1155105, and 1159233 — covering decades of GE, Hotpoint, RCA, and Kenmore models made after 1995.

⚙️

Tool-Free DIY InstallationRear-mount design secures with three screws. Disconnect hoses, unplug two solenoid connectors, swap valve, reconnect — most customers complete the repair in under 20 minutes with only a Phillips screwdriver and pliers.

✅

Stops the Full Spectrum of Valve FailuresAddresses every common dual-inlet valve failure mode: no water fill, slow fill, overfill when off, single-temperature fill, water dripping into tub between cycles, and valve-area leaks — one part, one fix.

💡 Pro Tip: How to Confirm Your Water Inlet Valve Has Failed

Your part is likely the culprit if you notice any of the following:

⚠️ Washer tub does not fill with water, or fills extremely slowly on wash or rinse cycles

⚠️ Washer fills with water even when the machine is turned off or unplugged (valve stuck open)

⚠️ Only hot OR only cold water enters the tub regardless of temperature setting

⚠️ Water drips or leaks from the rear valve area or into the tub between cycles

🔍 Quick test: Turn off the water supply valves and unplug the washer. If water continues flowing into the tub, the inlet valve solenoid is stuck open and must be replaced — do not attempt to clean it, as cleaning can accelerate internal seal failure. Also check the inlet screens for debris before condemning the valve; clogged screens mimic a failed valve on slow-fill complaints.

📦 What's in the Box

✅ 1× WH13X10024 Dual Water Inlet Valve Assembly (120V / 60Hz, rear-mount, dual solenoid coil, approx. 8" L × 7.5" W × 2" H)

Questions & Answers

Will WH13X10024 fit my GE top-load washer if the valve on my machine looks different?

Answered by Support Team · Mar 15, 2024

Yes — GE has updated the WH13X10024 design over the years, so the replacement may look slightly different from your original. As long as your model number is listed in our compatibility chart, the new valve is a confirmed direct replacement and will function identically. The mounting hole pattern, hose port size, and solenoid connector positions are all matched to the original specification.

My washer only fills with cold water no matter what temperature I select. Is this definitely the inlet valve?

Answered by Support Team · Nov 20, 2023

It's a strong indicator. The WH13X10024 has separate hot and cold solenoid coils; when the hot-side coil burns out, only cold water enters regardless of the temperature setting. Before ordering, quickly test by swapping the two solenoid wire connectors on the existing valve — if the problem switches sides (cold port now fails, hot works), the valve is confirmed bad. If the problem doesn't switch, check the water temperature selector switch.

Can I clean the old WH13X10024 valve instead of replacing it?

Answered by Support Team · Jan 8, 2025

We strongly advise against it. Cleaning the internal solenoid seats and rubber diaphragms can dislodge debris that was previously holding the valve partially shut, causing it to fail wide open and flood your laundry area. Once a water inlet valve shows symptoms — slow fill, no fill, or dripping between cycles — replacement is the correct repair. The part is designed as a sealed, non-serviceable assembly.

Is this part compatible with Hotpoint, RCA, and Kenmore washers, or only GE branded machines?

Answered by Support Team · Jul 22, 2024

This valve is compatible with GE, Hotpoint, RCA, and select Sears/Kenmore models, because GE manufactures the appliance platforms sold under all of these brand names. Check our full model compatibility list above to confirm your specific model number. Hotpoint models such as VBSR3100DCWW and VBXR1060T5WB are among the confirmed fits.

How long does installation take and do I need a plumber?

Answered by Support Team · Feb 10, 2026

No plumber needed — this is a straightforward DIY repair. Most homeowners complete it in 15 to 25 minutes using only a Phillips screwdriver and needle-nose pliers. The key steps are: shut off water supply valves, unplug the washer, disconnect two hoses and two solenoid connectors, swap the valve, and reconnect everything. The trickiest part is releasing the internal tub fill hose clamp; needle-nose pliers make this easy.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review "WH13X10024"

Related Parts

DC97-15459G

DC97-15459G Water Inlet Valve Assembly Compatible with Samsung, Replaces AP5623056 PS4220861 3276197 EAP4220861

W10861225

W10861225 Dryer Door Handle Compatible with Whirlpool Maytag Kenmore Amana Crosley WED MGD NED NGD MEDC MGDC MEDX Dryer, Replaces AP5999398 PS11731583 W10714516 4380739 EAP11731583 AH11731583 W10861225VP

WE03X23881

WE03X23881 Dryer Lint Filter Compatible with GE Hotpoint, Replaces AP6031713 PS11763056 4476390 EAP11763056

W10006355

W10006355 Washer Shift Actuator Compatible with Whirlpool Maytag Kenmore Amana, Replaces WPW10006355 AP6014711 PS11747977 1719787

Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
