Turning the burner knob to Lite produces no spark or clicking — all burners fail to light due to a failed spark module sending no signal to the igniters.
Burner continues to click and spark after being lit or even when not in use, caused by a short or stuck circuit inside the spark module.
Burners light sometimes but not reliably — the module sends inconsistent electrical signals to one or more igniters due to internal component degradation.
Certain burners spark and light normally while others produce no response, indicating specific output channels on the spark module have failed.
Absolutely no audible clicking or visible spark occurs when any knob is turned, pointing to a complete spark module failure rather than individual igniter issues.
💡 Pro Tip: Diagnosing a Faulty Spark Module on Your Gas Range
Your part is likely the culprit if you notice any of the following:
⚠️ One or more burners won't spark or click when the knob is turned to Lite
⚠️ Burners spark constantly and won't stop clicking even after the burner is lit
⚠️ Intermittent ignition — burners light sometimes but not reliably
⚠️ No clicking sound at all from any burner when attempting to ignite
Before replacing: confirm the surface burner igniters and wiring harness are intact. Use the wiring diagram to check for an open circuit through the gas valve and inspect each igniter and burner tube for cracks or moisture damage. If igniters are fine but sparking is absent or erratic across all burners, the spark module is the most likely cause. Always shut off gas and unplug the range before servicing.
📦 What's in the Box

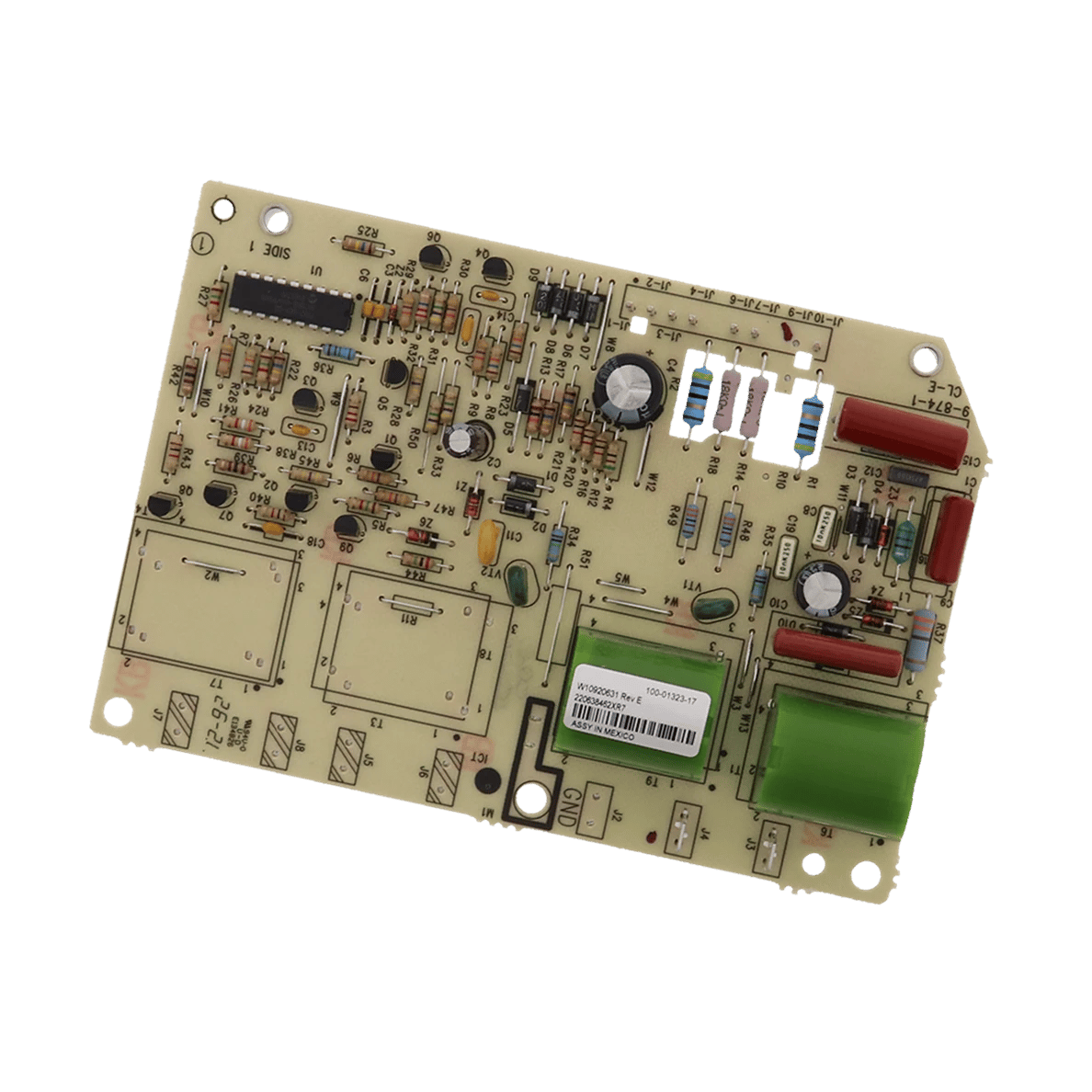

✅ 1× Gas Range Spark Ignition Module (replaces W10920631 / WPW10920631 / W11162730)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
