Oven starts to heat but stalls well below the selected temperature (e.g., won't exceed 325°F). A faulty sensor sends incorrect resistance to the control board, causing the heating element or burner to shut off too early.
Oven runs 50°F or more above or below the set temperature, resulting in undercooked or overcooked food. Replacing the sensor restores accurate temperature calibration.
Food browns unevenly or one side of the oven cooks faster than the other due to the sensor providing inconsistent temperature readings to the control board.
The oven control board shows an E2-F3 or similar error code indicating an open or shorted oven sensor circuit. This is one of the most direct diagnostic signs that the temperature sensor has failed.
The oven takes an unusually long time to reach the target temperature because the sensor is under-reporting the actual cavity temperature, keeping the heating element or burner on but signaling the oven has not yet reached temperature.
💡 Pro Tip: How to Diagnose a Faulty Oven Temperature Sensor
Your part is likely the culprit if you notice any of the following:
⚠️ Oven temperature is way off — runs 50°F or more above or below the set temperature
⚠️ Oven starts to heat but never reaches baking temperature (e.g., stalls below 325°F)
⚠️ Oven heats unevenly or takes an unusually long time to preheat
⚠️ Control board displays an E2 or F3 error code (open or shorted sensor circuit)
To confirm: set your multimeter to resistance (ohms) and probe the sensor terminals. At room temperature (70°F/21°C) you should read approximately 9.3K ohms. A reading far outside this range — or an open/short — confirms the sensor needs replacement. Always unplug the range before testing or replacing.
📦 What's in the Box

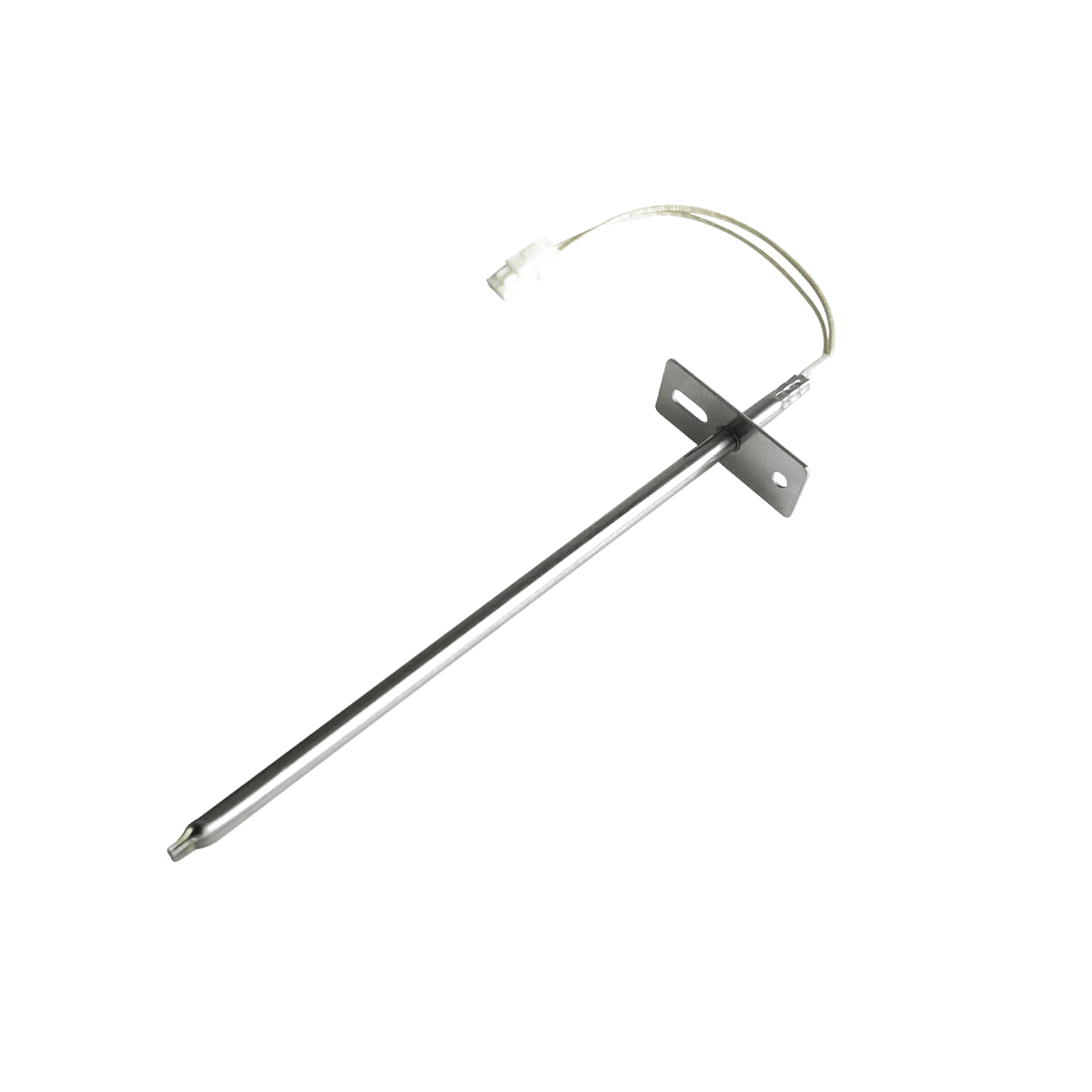

✅ 1× Oven Temperature Sensor / Thermistor Probe (W10833885 compatible, with wire harness connector)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
