Whirlpool Oven Not Heating Right — 5 Temperature Sensor Failures & Fixes

You set your KitchenAid KFGG500ESS1 to 350°F for cookies, but they come out raw in the center and burnt on the edges. Or your Maytag MER8700DS1 barely gets warm, even after preheating for 20 minutes. Nine times out of ten, you're dealing with a failed oven temperature sensor — and it's one of the easiest fixes in appliance repair.

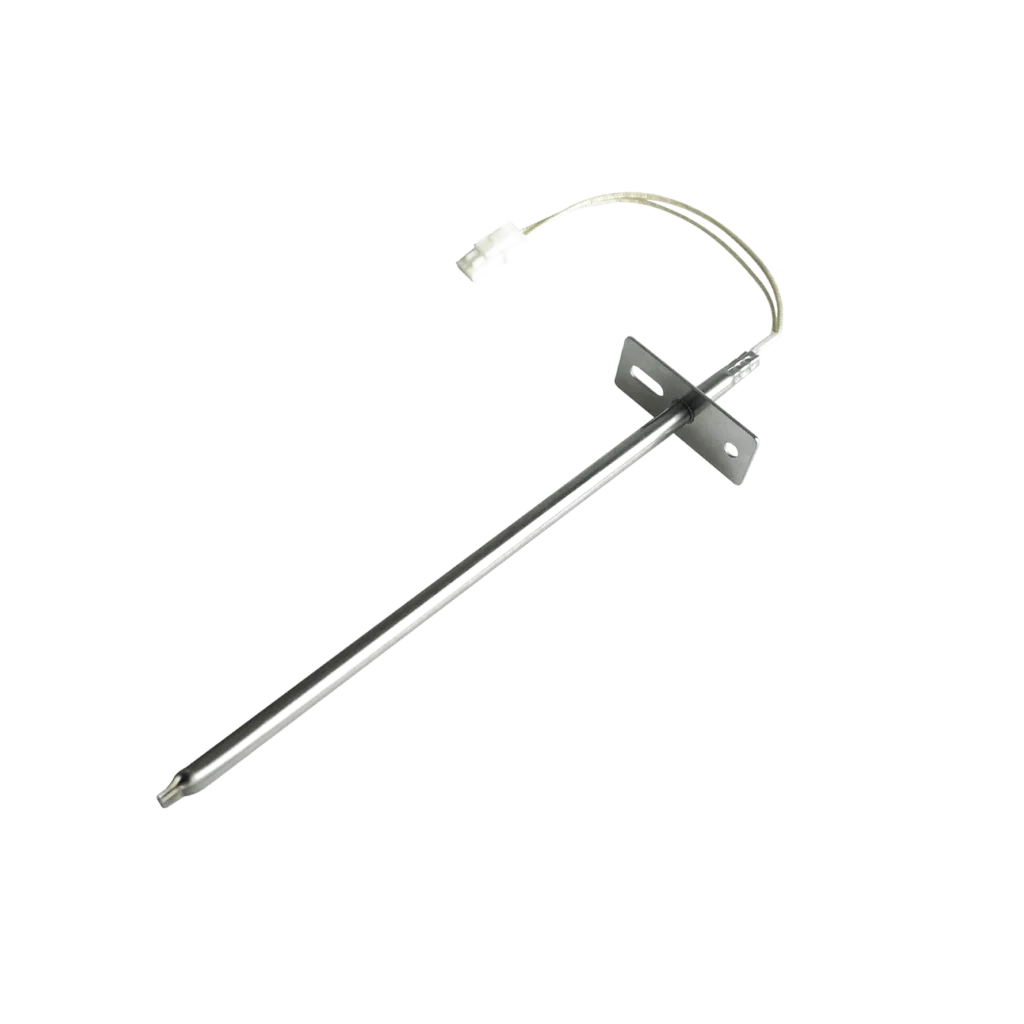

The temperature sensor (part W10833885) tells your oven's control board how hot the cavity actually is. When it fails, your oven either underheats, overheats, or cycles erratically. Here's how to diagnose which failure mode you're dealing with and whether you need the $99 part or something else entirely.

Quick Symptom Check — Which Failure Mode Do You Have?

Before you order parts, run this 60-second check:

• Little to no heat when baking: Oven stays cold or barely reaches 200°F after 30 minutes
• Oven not heating evenly: Hot spots on one side, cold spots on the other — your casseroles cook unevenly
• Oven is too hot: Everything burns, even on lower settings — your oven thermometer reads 50–100°F higher than the display
• Erratic cycling: Temperature swings wildly — bread rises too fast, then collapses
• F1 error code: Control board throws a fault because sensor resistance is out of range

If you're seeing any combination of these, the sensor is the most likely culprit. But let's rule out the other possibilities first.

Cause #1: Failed Temperature Sensor (70% Probability)

What's happening: The sensor is a thermistor — its electrical resistance changes predictably with temperature. At room temp (around 70°F), it should read 1,080–1,100 ohms on a multimeter. When it drifts outside this range or reads open/shorted, your control board gets bad data and can't regulate heat properly.

How to test it:

1. Unplug the range (or flip the breaker — this is 240V, not a joke)
2. Remove the oven racks and locate the sensor — it's a metal probe sticking into the back wall of the oven cavity, usually upper left
3. Pull off the wire connector (might need to remove the back panel to access it)
4. Set your multimeter to ohms and probe the sensor terminals
5. Room temp reading should be 1,080–1,100Ω. If it's way off, open circuit (OL on meter), or zero, it's toast

The fix: Replace with W10833885. It's a direct swap — unscrew the mounting bracket (usually one or two screws), pull the old sensor out, slide the new one in, reconnect the wires. Ten-minute job if you've got a screwdriver and the part.

Cost: $98.99 for the sensor. DIY labor is free. Professional install runs $180–$250 with the service call.

Cause #2: Faulty Bake Element (20% Probability)

What's happening: If your oven isn't heating at all — like, stone cold even after an hour — the bake element might be burned out instead of the sensor. You'd usually see a visible break or blister in the element coil.

How to test it: With power off, test continuity across the element terminals. Should read 15–50 ohms depending on wattage. If it's open, the element is shot.

Why this matters: A bad sensor causes erratic heating. A bad element causes no heating. If your Whirlpool WFG530S0EB0 isn't even trying to warm up, check the element first.

The fix: Element replacement. Different part number, different job — not covered here, but worth mentioning so you don't chase the wrong rabbit.

Cause #3: Control Board Misreading a Good Sensor (5% Probability)

What's happening: Occasionally, the oven control board's sensor circuit fails while the sensor itself is fine. This is rare on Whirlpool/Maytag/KitchenAid platforms, but it happens.

How to test it: If your sensor tests good at room temp (1,080Ω) but the oven still won't regulate, and you're getting F1 errors, the board might be the issue. You'd need to measure voltage at the sensor connector with the oven powered — should see about 5VDC reference voltage from the board.

The fix: Control board replacement. Expensive ($300–$600 depending on model) and usually requires a tech unless you're comfortable with live voltage testing.

Cause #4: Corroded or Loose Wire Connector (3% Probability)

What's happening: The spade connectors at the sensor can corrode from heat cycling, especially on older units like the Jenn-Air JDS1750EP1. Poor connection mimics a failed sensor.

How to spot it: Pull the connector off and inspect. If you see green/white corrosion or burnt plastic, clean the terminals with a wire brush or replace the connector pigtail.

The fix: Clean or replace the connector. If cleaning doesn't restore reliable contact, cut off the old connector and crimp on a new one (appliance parts stores sell universal sensor pigtails).

Cause #5: Sensor Installed Incorrectly After Previous Repair (2% Probability)

What's happening: If someone replaced the sensor before and didn't push it all the way into the oven cavity, it's reading cooler air near the opening instead of actual oven temp. Your oven compensates by running hotter.

How to spot it: Pull the sensor out and check the insertion depth. It should sit 3–4 inches into the cavity. If it's barely in there, reseat it properly.

The fix: Push it in until the mounting bracket sits flush against the back wall. Secure the bracket screws snug but not overtightened (you can crack the ceramic insulation).

Step-by-Step: Replacing the W10833885 Temperature Sensor

Here's the full procedure for a Whirlpool/KitchenAid/Maytag/Jenn-Air range:

1. Kill power. Unplug or flip the 240V breaker. Confirm it's dead with a non-contact voltage tester.
2. Access the sensor. Remove oven racks. Sensor is usually upper left or upper right rear wall — a metal probe about 1/4" diameter sticking through the back panel.
3. Disconnect wires. On some models (like the Amana AGR6603SFS0), you'll need to remove the rear panel to access the connector. Others let you reach it from inside the oven.
4. Unbolt the bracket. One or two hex screws hold the sensor mounting bracket. Remove them and pull the sensor straight out.
5. Install new sensor. Slide W10833885 into the same hole. Push it all the way in (about 3–4 inches). Secure the bracket.
6. Reconnect wires. Match up the spade connectors — they only go one way. Make sure they click on firmly.
7. Test. Restore power. Set oven to 350°F. Use an oven thermometer to verify it reaches and holds 340–360°F (±10°F is normal). Should stabilize within 20 minutes.

When to Call a Pro

This is genuinely one of the easiest oven repairs. If you can handle a screwdriver and a multimeter, you can do this. Call a tech if:

• You're uncomfortable working around 240V (no shame — it'll bite you)
• The sensor tests good but the oven still won't regulate (control board issue)
• You're seeing F1 errors even after replacing the sensor (board or wiring harness problem)
• Your range is still under warranty (let the manufacturer eat the cost)

Otherwise, spend the $99 on the part and 20 minutes of your Saturday morning. You'll save $150–$200 in labor.

Which Models Use the W10833885 Sensor?

This part crosses all the Whirlpool Corp. brands. Confirmed fits include:

• Maytag: MER8700DS1, MES8800FZ1
• KitchenAid: KSIB900ESS0, KFGG500ESS1, KSDG950ESS0, KSGB900ESS01
• Whirlpool: WFG530S0EB0, WEE510S0FB0
• Amana: AGR6603SFS0
• Jenn-Air: JDS1450FS0, JDS1750EP1, JDS1750FB0, JES1450CDB0

Also replaces older part numbers AP5988663, W10586204, PS11726314, 4363199. If your model's not listed, check the compatibility chart on the product page.

Frequently Asked Questions

Can a bad temperature sensor cause my oven to trip the breaker?

No. A failed sensor won't draw enough current to trip a breaker — that's a short in the element, wiring, or control board. If your breaker's popping, call a tech. That's a fire hazard, not a sensor issue.

How long does an oven temperature sensor last?

Typically 8–15 years depending on use. High-heat cooking (self-clean cycles, lots of broiling) shortens lifespan. If your range is 10+ years old and the sensor's never been replaced, it's living on borrowed time.

Will a bad sensor throw an error code, or does it just make the oven cook wrong?

Depends on how it fails. If it goes completely open or shorted, you'll see F1 or F3 error codes on most Whirlpool/Maytag models. If it just drifts out of spec slowly, the oven will cook poorly without throwing a fault — you'll notice burnt food before the control board notices bad data.
