Home/Washer & Dryer Parts/Washer Clutch & Motor Parts/DC31-00090B
On Sale

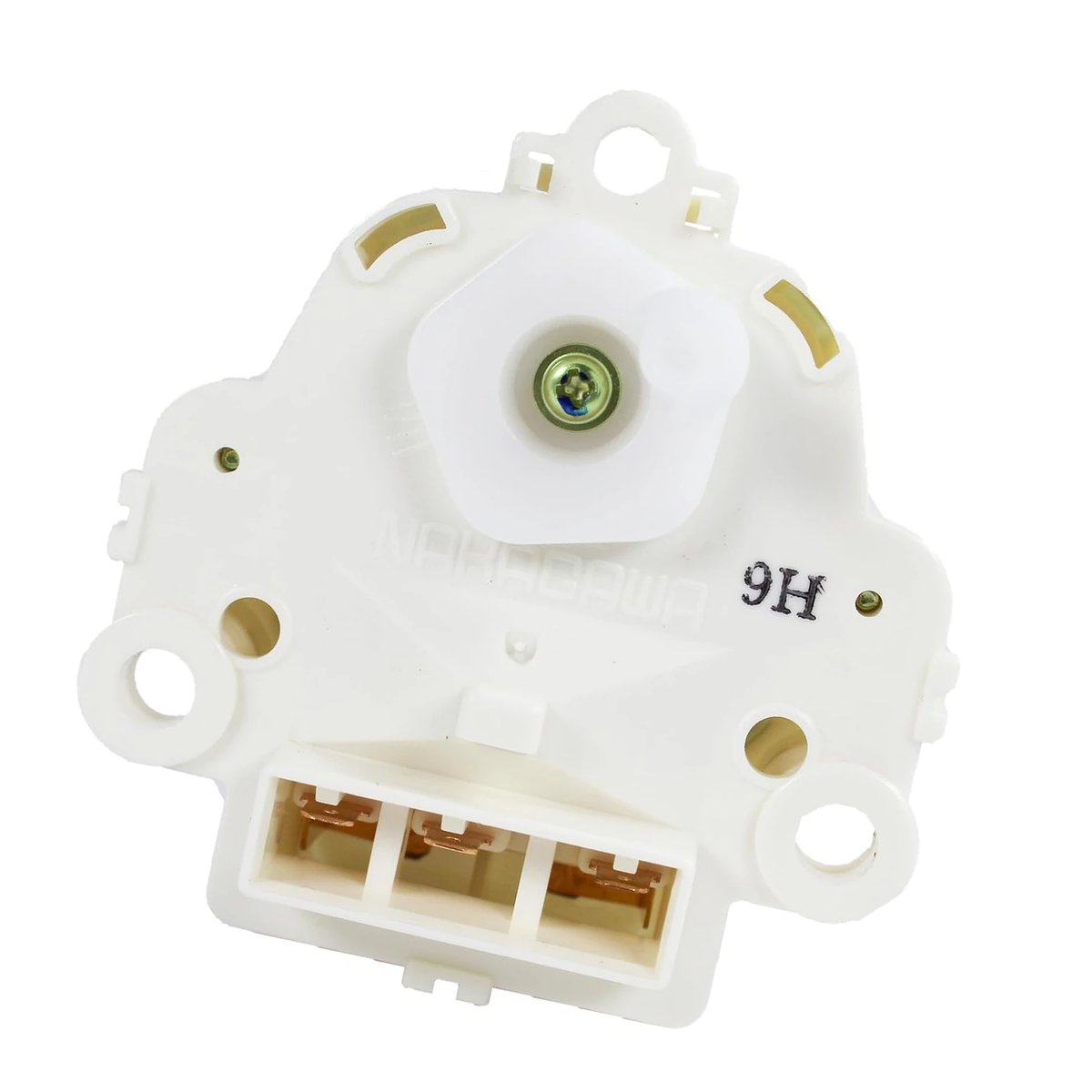

DC31-00090B Washer Motor Drain Clutch Compatible with Samsung, Replaces AP5585694 3290423 PS4204670
  • DC31-00090B Washer Motor Drain Clutch Compatible with Samsung, Replaces AP5585694 3290423 PS4204670
  • DC31-00090B Washer Motor Drain Clutch Compatible with Samsung, Replaces AP5585694 3290423 PS4204670
  • DC31-00090B Washer Motor Drain Clutch Compatible with Samsung, Replaces AP5585694 3290423 PS4204670
  • DC31-00090B Washer Motor Drain Clutch Compatible with Samsung, Replaces AP5585694 3290423 PS4204670
  • DC31-00090B Washer Motor Drain Clutch Compatible with Samsung, Replaces AP5585694 3290423 PS4204670
  • DC31-00090B Washer Motor Drain Clutch Compatible with Samsung, Replaces AP5585694 3290423 PS4204670
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 54 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

DC31-00090B Washer Motor Drain Clutch Compatible with Samsung, Replaces AP5585694 3290423 PS4204670

SKU: DC31-00090B
OEM RetailBranded
$114.44
Via distributor
Source: AppliancePartsPros.com · Apr 2026
OEM brand & packaging
Factory direct price
1-year warranty
Our PartBest Value
$62.99
Factory direct
OEM-Compatible
Meets OEM specifications
Factory direct price
1-year warranty
Save by going factory direct
OEM-compatible · no distributor markup
$51.45
45% less than OEM retail
Repair Time30-45 Minutes
DifficultyModerate
DIY FriendlyYes
Tools Needed
Phillips ScrewdriverFlathead ScrewdriverNut Driver (516")MultimeterPliers
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
DC31-00090B Washer Motor Drain Clutch Compatible with Samsung, Replaces AP5585694 3290423 PS4204670
$102.99 Original price was: $102.99.$62.99Current price is: $62.99.
In Stock

This Part Fixes These Problems

No Agitation

Washer fills with water and drains normally but the drum does not agitate — the clutch motor has failed to shift the transmission into agitate mode.

PC1 / PE1 Error Code

Control board displays PC1 or PE1 error indicating clutch position was not detected; caused by a failed or stuck drain clutch motor.

Loud Grinding Noise During Spin Shift

Loud buzzing, grinding, or humming when the washer transitions from agitation to the spin cycle, indicating the clutch motor is struggling to divert.

Washer Skips Agitation Cycle

Machine skips straight from fill to spin without washing, because the clutch motor cannot mechanically engage the agitator drive.

Incomplete Drain / Water Left in Tub

Water is not fully expelled because the drain diverter controlled by this motor is stuck in the wrong position, preventing complete drainage.

Repair Guides

How to Replace DC31-00090B Washer Motor Drain Clutch on Samsung Top-Load Washers — Step-by-Step
May 26, 2026
Samsung Washer Won't Drain or Spins Slowly — 5 Causes & How to Fix
May 22, 2026

Product Description

Why Choose Our DC31-00090B Washer Motor Drain Clutch?

🔧
Built to OEM Specifications Engineered to match Samsung OEM DC31-00090B exactly — 120V / 60Hz rated, dimensions 3.98 × 3.39 × 2.87 in, weight ~0.28 lbs. Direct plug-and-play replacement with no wiring modifications required.
⚙️
Diverter & Drain Clutch Function This motor-driven clutch assembly shifts the transmission between agitate mode and spin mode, while also controlling the drain diverter valve. A failed unit causes the washer to fill and drain but not agitate — this part fixes it.
🏷️
Replaces 5+ Cross-Reference Numbers Confirmed cross-references: AP5585694, 3290423, PS4204670, PS4137590, TD-SSCL-12A, NTCV601TE. Works as a drop-in replacement for all these numbers on the same washer models.
📋
Fits 50+ Samsung WA-Series Models Compatible with WA48, WA50, WA52, WA54, WA56 series Samsung top-load washers including WA48J7700AW, WA50K8600AV, WA52M8650AW, WA54M8750AV, WA56H9000AW and many more. Always verify your model number before ordering.
💪
High-Strength Durable Construction Made with high-strength ABS housing and precision-wound motor internals. Resists heat and vibration from high-speed spin cycles — engineered for long-term reliability in heavy-duty Samsung top-loaders.
💰
Save vs. OEM Pricing OEM reference price: $114.44 (AppliancePartsPros.com). Our aftermarket part delivers the same fit and function at a fraction of the cost — same fix, smarter spend.

💡 Pro Tip: How to Diagnose a Failed DC31-00090B Drain Clutch Motor

Your part is likely the culprit if you notice any of the following:

⚠️ Washer fills with water and drains, but drum does not agitate at all

⚠️ PC1 or PE1 error code displayed — clutch position not detected by control board

⚠️ Loud grinding or buzzing noise when washer tries to shift from agitate to spin

⚠️ Washer skips the agitation cycle and jumps straight to spin

🔬 To confirm: Enter service diagnostic mode (see tech sheet inside the cabinet lid). Test clutch motor at main control board connector CN4 Pin 8 to CN6 Pin 3. If 120VAC is present at the connector but the clutch does not move, the motor has failed and needs replacement. If no voltage reaches the motor, inspect wiring harness before replacing the part.

📦 What's in the Box

✅ 1× DC31-00090B Washer Motor Drain Clutch Assembly (TD-SSCL-12A / NTCV601TE, 120V 60Hz, ~3" length)

Questions & Answers

Will DC31-00090B fix a PC1 error code on my Samsung WA48J7700AW?
Answered by Support Team  ·  Mar 15, 2024
Yes — the PC1 error code means the control board cannot detect the clutch position. Before replacing, enter service diagnostic mode (refer to the tech sheet inside the cabinet) and check for power at CN4 Pin 8 to CN6 Pin 3 on the main board. If 120VAC is present at the connector but the clutch does not engage, the DC31-00090B motor has failed and this part is the correct fix.
My washer fills and drains fine but won't agitate. Is this the right part?
Answered by Support Team  ·  Nov 20, 2023
This is the most classic symptom of a failed DC31-00090B drain clutch motor. The motor is responsible for mechanically shifting the transmission between agitate and spin modes. If the washer fills, drains, and spins but skips agitation entirely, replace this clutch motor first before checking the main control board.
What part numbers does DC31-00090B replace?
Answered by Support Team  ·  Jan 8, 2025
DC31-00090B is the primary Samsung part number. Confirmed cross-references include: AP5585694, 3290423, PS4204670, PS4137590, TD-SSCL-12A, and NTCV601TE. All of these refer to the same physical Washer Motor Drain Clutch Assembly. Our aftermarket unit is a direct replacement for all of these numbers.
Is this compatible with my Samsung WA52M8650AW/A4?
Answered by Support Team  ·  Jul 22, 2024
Yes — the WA52M8650AW/A4 is one of the confirmed compatible models for DC31-00090B. This part also fits the WA50, WA48, WA54, and WA56 series Samsung top-load washers. Always verify by checking your full model number (found on the label inside the lid) against our compatibility list before ordering.
How difficult is it to replace the DC31-00090B clutch motor myself?
Answered by Support Team  ·  Feb 10, 2026
We rate this repair Moderate. You will need to remove the agitator, wash plate, and inner tub to access the clutch motor at the base of the transmission. No special tools beyond standard screwdrivers and a nut driver are required. The job typically takes 30–45 minutes. We recommend using a multimeter to confirm the motor has failed before replacing it, to avoid unnecessary disassembly.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.
