Condenser fan motor failure prevents the fan from spinning, stopping heat rejection from the refrigerant coil and causing the AC system to blow warm air or trip on high-pressure lockout.
Motor windings fail open or bearings seize, resulting in the outdoor fan blade being completely stationary while the compressor continues to run — or hums without starting.
Without adequate condenser airflow, refrigerant head pressure rises rapidly, causing the high-pressure safety switch to cut out the compressor repeatedly in short cycles.
Shorted or overloaded motor windings generate heat and a distinctive electrical burning odor coming from the condenser cabinet, indicating imminent or complete motor failure.
💡 Pro Tip: How to Know Your Condenser Fan Motor Has Failed
Your part is likely the culprit if you notice any of the following:
⚠️ Outdoor condenser fan blade is not spinning even though the compressor is running
⚠️ AC system runs but provides little or no cooling — refrigerant can't shed heat without the fan
⚠️ High-pressure lockout tripping repeatedly, causing the system to short-cycle
⚠️ Burning smell or loud humming from the outdoor unit without the fan spinning
🔍 Quick test: With power OFF, try spinning the fan blade by hand — it should rotate freely with little resistance. If it's stiff or seized, the motor bearings have failed. If it spins freely but won't start under power, the motor windings are open; check with a multimeter across the run winding terminals (should read 200–400Ω). Also inspect the run capacitor first — a failed 5μF capacitor is often mistaken for a failed motor.
📦 What's in the Box

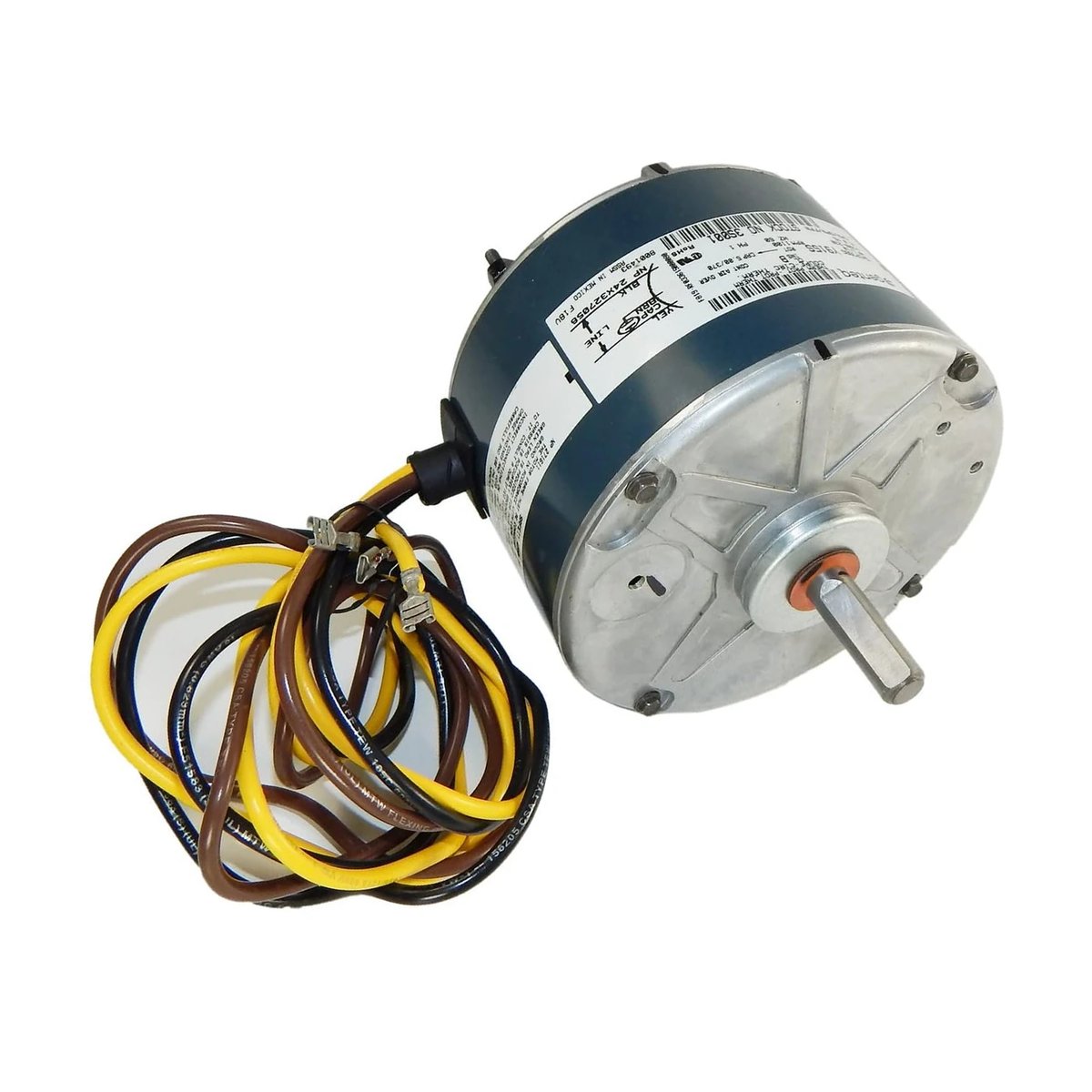

✅ 1× Condenser Fan Motor (1/10 HP, 208-230V, 1100 RPM, 48 Frame, CCWSE)
✅ 1× CBB65 Run Capacitor (5μF / 370V)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
