Dryer runs normally but generates no heat — clothes remain cold and wet after a complete cycle.
Dryer heats weakly or inconsistently, requiring multiple cycles to dry a normal load.
Drying cycles run significantly longer than normal due to insufficient heat output from a degraded coil.
A partially shorted element produces heat continuously even after the set temperature is reached, causing the dryer to run too hot.
A shorted heating element can trip the thermal fuse or high-limit thermostat, preventing the dryer from starting at all.
💡 Pro Tip: How to Diagnose a Failed Dryer Heating Element
Your part is likely the culprit if you notice any of the following:
⚠️ Dryer runs but produces no heat — clothes come out cold and wet after a full cycle
⚠️ Dryer overheats and shuts off early — element may be partially shorted to the housing
⚠️ Clothes take two or more cycles to fully dry — insufficient heat output
⚠️ Visible break or gap in the coil wire when the element housing is removed
🔍 Diagnostic Tip: Set a multimeter to continuity mode. Test each terminal — a good element shows continuity between the two terminals and NO continuity from either terminal to the metal case. If you read continuity to the case, the element is shorted and must be replaced. Always check the thermal fuse first (part 3392519) before condemning the element — a blown fuse is the most common no-heat cause and is inexpensive to replace.
📦 What's in the Box

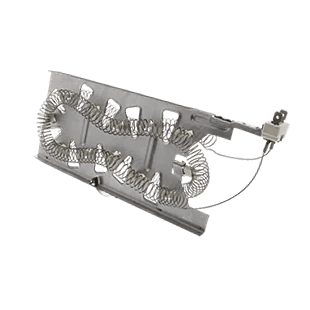

✅ 1× Dryer Heating Element Assembly (5400W / 240V, 5/16" terminals, approx. 13.8" × 5.7", 1.1 lbs)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
