Refrigerator or freezer compartment fails to maintain proper temperature because the condenser fan motor has stopped moving air across the condenser coils.
Unusual humming, grinding, or rattling noise from the bottom rear of the unit caused by worn motor bearings or a seized condenser fan motor.
Compressor shuts off on thermal overload or runs continuously because the failed fan motor is not dissipating heat from the condenser coils.
Condenser fan blade does not rotate when the compressor is running, indicating the motor windings have failed or the motor shaft is seized.
💡 Pro Tip: Is Your Condenser Fan Motor the Problem?
Your part is likely the culprit if you notice any of the following:
⚠️ Refrigerator not cooling or freezer section warmer than usual
⚠️ Loud humming, buzzing, or grinding noise coming from beneath or behind the unit
⚠️ Fan blade spins slowly or does not spin at all when the compressor is running
⚠️ Compressor runs continuously or overheats and shuts off on thermal overload
Unplug the refrigerator and manually spin the fan blade — if it feels stiff, rough, or won't turn freely, the motor bearings have failed. Use a multimeter to verify continuity across the motor windings; an open winding confirms the motor needs replacement.
📦 What's in the Box

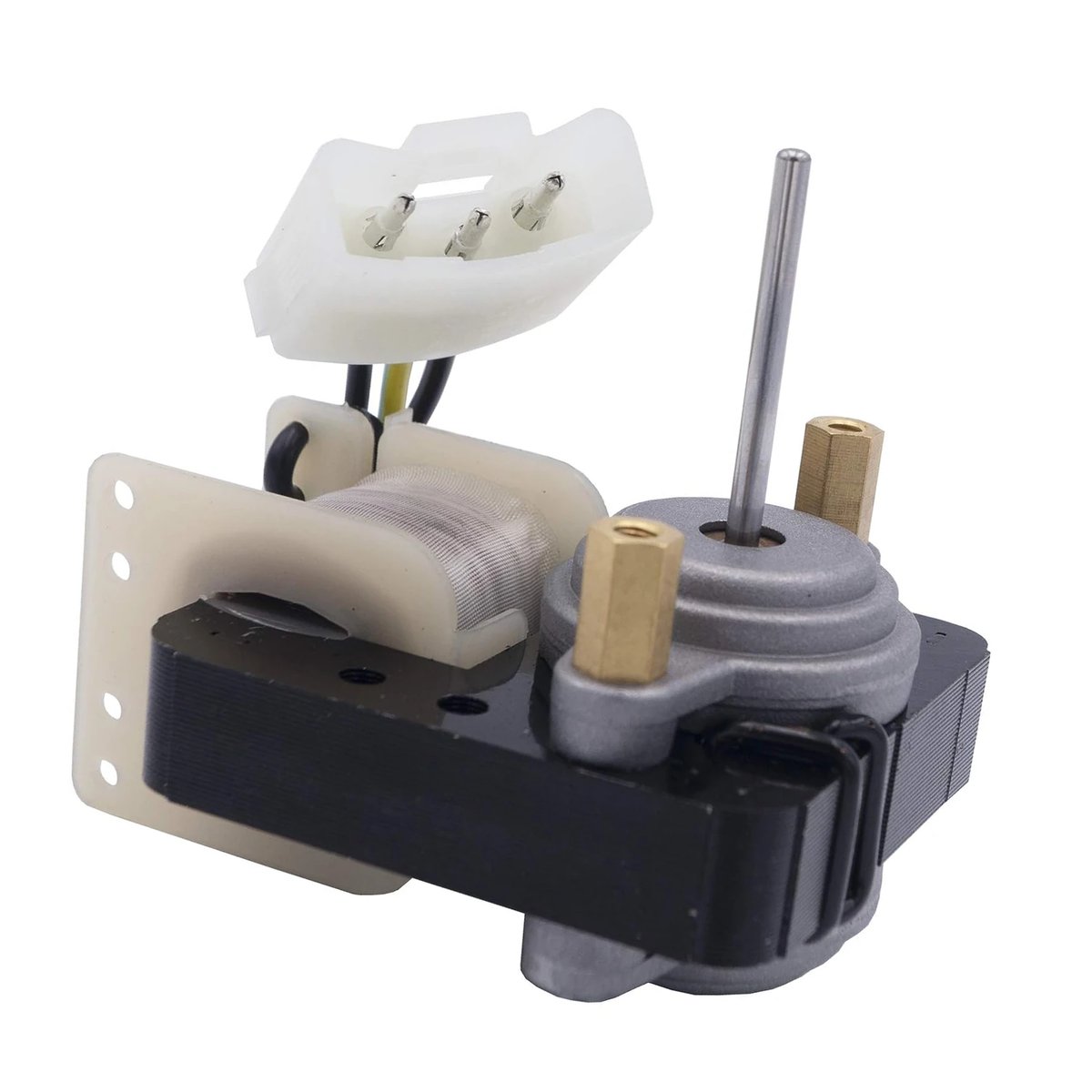

✅ 1× Condenser Fan Motor 241696606 (115V / 0.15A / 50-60Hz) — fan blade and housing sold separately; retain original mounting screws
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
