Refrigerator section is too warm even though the compressor is running — the fan motor has stopped circulating cold air from the evaporator coils.
Freezer fails to reach or maintain proper temperature; evaporator fan motor is not moving air over the cooling coils.
Loud humming, buzzing, rattling, or grinding sounds coming from the back wall of the freezer compartment indicate a failing motor.
Excessive ice accumulation on evaporator coils caused by inadequate air circulation due to a non-functional or weak fan motor.
Noticeable temperature difference between the top and bottom sections of the refrigerator or freezer, caused by disrupted airflow.
💡 Pro Tip: How to Diagnose a Failing Evaporator Fan Motor
Your part is likely the culprit if you notice any of the following:
⚠️ Refrigerator or freezer section is not cooling adequately despite compressor running
⚠️ Unusual humming, buzzing, or rattling noises coming from the back of the freezer
⚠️ Noticeable temperature difference between the top and bottom of the fridge or freezer
⚠️ Excessive ice or frost buildup on evaporator coils due to poor air circulation
🔍 Quick Test: Try spinning the fan blade by hand — if it doesn't turn freely, the motor bearings are worn. No movement? Use a multimeter to check winding continuity. No continuity = replace the motor immediately.
📦 What's in the Box

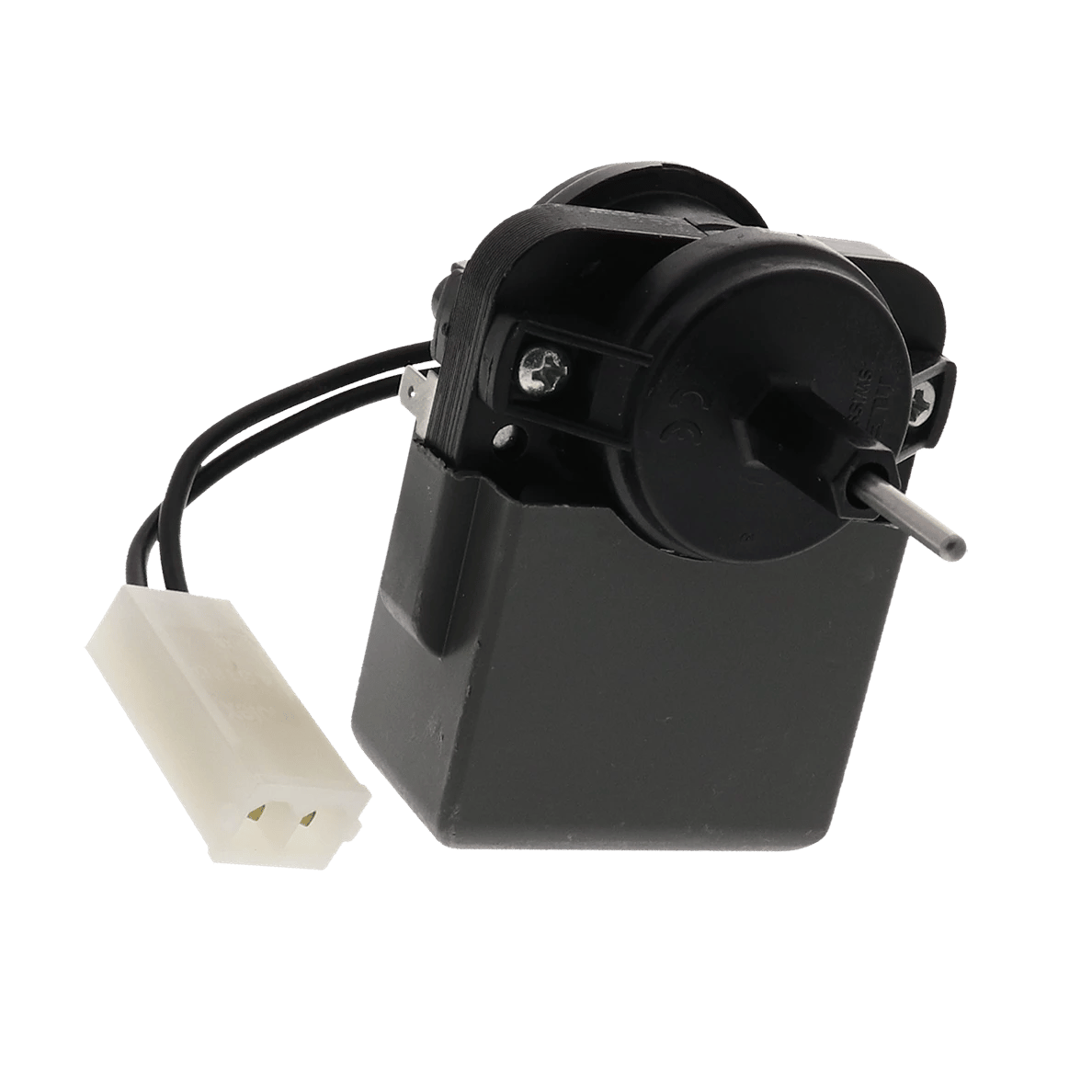

✅ 1× Refrigerator Evaporator Fan Motor with Integrated Wire Harness (Replaces WP2315549 / ESF-U2A, approx. 4.5"L × 2.5"W × 4"H)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
