Home/Dishwasher Parts/Dishwasher Rack Wheels & Rollers/165314

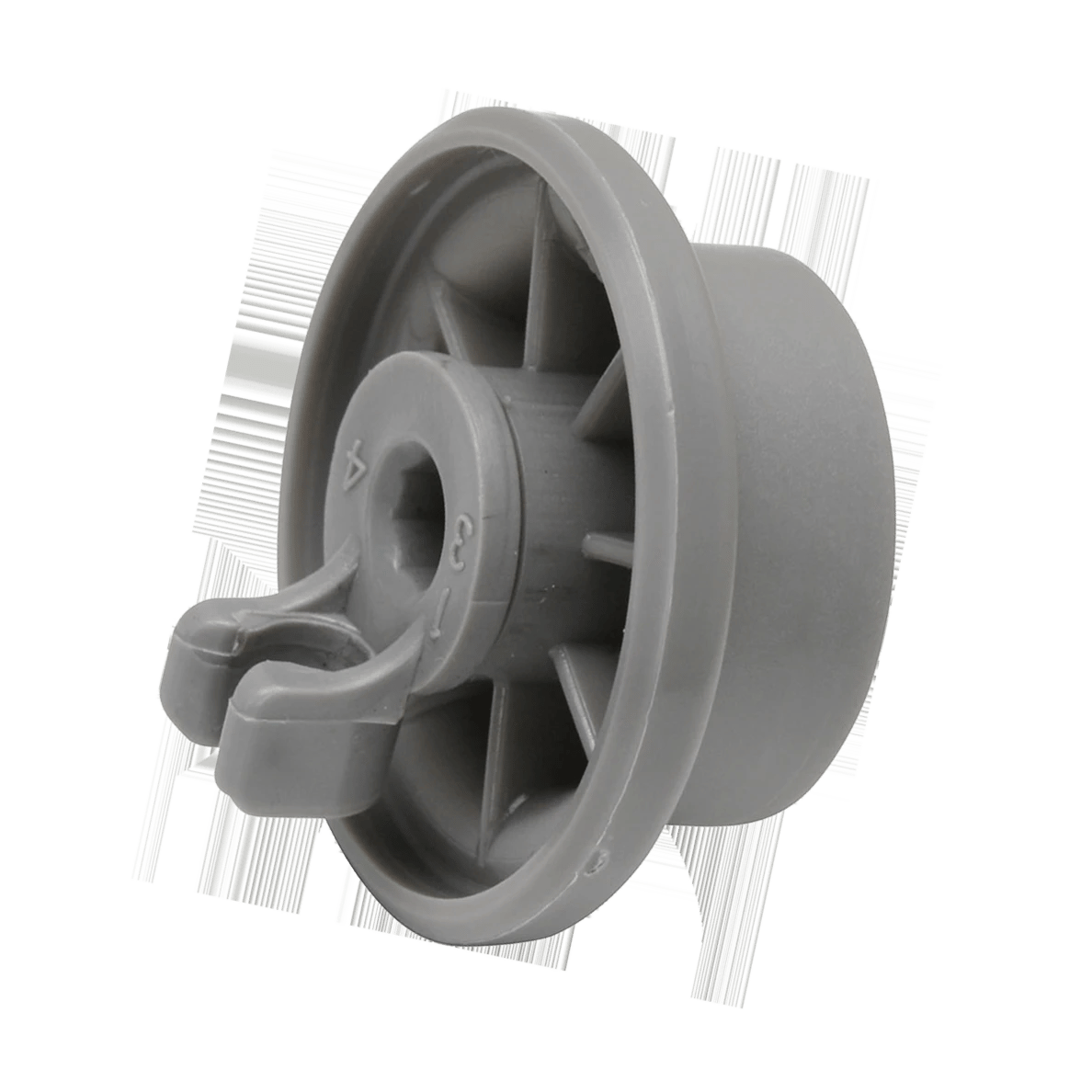

165314 Dishwasher Lower Rack Wheel Compatible with Bosch Kenmore Gaggenau Thermador, Replaces 00165314 AP2802428 420198 423232 PS3439123
  • 165314_1
  • 165314_2
  • 165314_3
  • 165314_4
  • 3 2
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 124 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

165314 Dishwasher Lower Rack Wheel Compatible with Bosch Kenmore Gaggenau Thermador, Replaces 00165314 AP2802428 420198 423232 PS3439123

SKU: 165314
Order within --:-- to ship today
Repair Time2-5 Minutes
DifficultyEasy
DIY FriendlyYes
Tools Needed
None (tool-free snap installation)
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
165314 Dishwasher Lower Rack Wheel Compatible with Bosch Kenmore Gaggenau Thermador, Replaces 00165314 AP2802428 420198 423232 PS3439123
In Stock

This Part Fixes These Problems

Rack Won't Slide Smoothly

Lower rack requires excessive force to push in or pull out, or catches and jerks during movement due to worn, cracked, or missing wheels.

Grinding or Squeaking Noise

Rack makes scraping, grinding, or squeaking sounds when sliding — caused by a damaged wheel rolling unevenly or a missing wheel dragging the rack frame on the tub floor.

Rack Tilts or Sags

One side of the lower rack dips lower than the other, causing dishes to shift or tip during the wash cycle — a classic sign of one or more broken or missing rack wheels.

Rack Becomes Misaligned or Detaches

The lower rack slips off its track or becomes misaligned during use because the locking clip on the wheel is broken or the wheel itself has shattered, removing proper rack guidance.

Repair Guides

How to Extend Your Bosch Dishwasher Lower Rack Wheel Life — Maintenance Guide
May 30, 2026
Bosch Dishwasher Lower Rack Wheel Parts — Models & Compatibility
May 29, 2026
Bosch Dishwasher Lower Rack Hard to Pull Out — 5 Causes & How to Fix
May 26, 2026
OEM vs Aftermarket Dishwasher Lower Rack Wheel for Bosch: Honest Comparison (165314)
May 24, 2026
How to Replace 165314 Dishwasher Lower Rack Wheel on Bosch, Kenmore & Thermador — Step-by-Step
May 23, 2026

Product Description

Why Choose Our 165314 Dishwasher Lower Rack Wheel?

🔧
Built to OEM SpecificationsEngineered to match OEM part 00165314 exactly — 1.42" (3.6 cm) diameter × 1" (2.54 cm) height, gray satin finish, with integrated locking clip for a secure snap-on fit onto the lower rack frame axle.
🌡️
High-Temp ABS PlasticManufactured from BPA-free, heavy-duty ABS plastic rated to withstand dishwasher operating temperatures up to 250°F. Wear-resistant, non-cracking design ensures consistent smooth rolling through thousands of cycles.
🔄
Wide Cross-CompatibilityCompatible with Bosch, Kenmore, Gaggenau, and Thermador dishwashers. Direct drop-in replacement for part numbers 00165314, 00420198, 420198, 423232, AP2802428, AH3439123, EA3439123, EAP3439123, PS3439123, PS8697067.
⚡
Tool-Free 2-Minute InstallNo disassembly, no tools required. Simply pull out the lower rack, unclip the old wheel, align the new wheel slot onto the rack axle, and snap the locking clip into place. Push and pull the rack to confirm a firm fit.
💰
Fraction of OEM CostRestore your dishwasher's rack glide for a fraction of the OEM dealer price. Avoid costly service calls for a part that snaps on in seconds — a true DIY money-saver with no compromise on fit or durability.
🔂
Replace in Pairs for Even WearIndustry-recommended best practice: replace rack wheels in matching pairs to ensure balanced load distribution and prevent uneven wear on the rack frame. Sold individually — order 2 or 4 as needed.

💡 Pro Tip: Is Your Rack Wheel the Culprit?

Your part is likely the culprit if you notice any of the following:

⚠️ Lower rack does not slide in and out smoothly — requires extra force to push or pull

⚠️ Scraping, grinding, or squeaking noise when moving the rack

⚠️ Rack tilts, sags, or becomes misaligned — one side lower than the other

⚠️ Visibly cracked, chipped, or missing wheel — rack dragging directly on the tub floor

🔍 Diagnostic Tip: Pull out the lower rack completely and flip it over. Inspect each wheel for cracks, flat spots, or missing clips. A healthy wheel should spin freely on its axle with no wobble. If one is damaged, replace all wheels on the same side at minimum — always in pairs for even wear.

📦 What's in the Box

✅ 1× Bosch-Compatible Lower Rack Wheel with Locking Clip (Gray ABS, 1.42" dia × 1" H) — Axle not included (integrated into rack frame)

Questions & Answers

Does the 165314 wheel come with the locking clip, or do I need to order it separately?
Answered by Support Team  ·  Mar 15, 2024
The locking clip is included with every 165314 lower rack wheel — no separate purchase needed. The wheel and clip ship together as one assembly. Simply align the wheel onto the rack axle stub and press until the clip snaps firmly into place.
My dishwasher model is a Kenmore 63016302403. Will this wheel fit?
Answered by Support Team  ·  Nov 20, 2023
Yes — the 165314 lower rack wheel is confirmed compatible with Kenmore model 63016302403 and the entire 630163024xx and 630163034xx series. These are Bosch-platform dishwashers sold under the Kenmore brand, and this wheel is a direct fit.
How many wheels should I replace at once? My dishwasher has 4 wheels on the lower rack.
Answered by Support Team  ·  Jan 8, 2025
We strongly recommend replacing rack wheels in matched pairs at minimum. Because all wheels wear at a similar rate, replacing only the visibly broken one often leads to the adjacent wheel failing within weeks. For the best result and longest service life, replace all 4 lower rack wheels at once. Order a 4-pack for complete coverage.
What is the diameter of the 165314 wheel? I want to confirm it matches my original before ordering.
Answered by Support Team  ·  Jul 22, 2024
The 165314 replacement wheel measures approximately 1.42 inches (3.6 cm) in diameter and 1 inch (2.54 cm) in height — identical to the OEM Bosch 00165314 specification. It is gray in color, made of satin-finish ABS plastic, and includes the locking clip. These dimensions match the original Bosch lower rack wheel exactly.
Is this compatible with Thermador and Gaggenau dishwashers, or only Bosch and Kenmore?
Answered by Support Team  ·  Feb 10, 2026
This wheel is compatible with all four brands: Bosch, Kenmore, Gaggenau, and Thermador. Thermador and Gaggenau are sister brands of Bosch and share the same dishwasher platform and rack components. If your original part number is 00165314, 420198, AP2802428, or PS8697067, this wheel is a confirmed direct replacement regardless of which of those four brands is on your appliance.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.




    Customer Reviews

    Reviews

    There are no reviews yet.

    Be the first to review "165314" Cancel reply

    Your email address will not be published. Required fields are marked *

    Related Parts

    W10195840 Dishwasher Upper Rack Adjuster Positioner Compatible with Whirlpool KitchenAid Kenmore Maytag Jenn-Air, Replaces WPW10195840 AP6016800 1872228 PS11750093 W10418323
    W10195840
    W10195840 Dishwasher Upper Rack Adjuster Positioner Compatible with Whirlpool KitchenAid Kenmore Maytag Jenn-Air, Replaces WPW10195840 AP6016800 1872228 PS11750093 W10418323
    $35.99 Original price was: $35.99.$25.99Current price is: $25.99.
    WD12X10136 Lower Dishrack Roller Compatible with GE Hotpoint RCA Kenmore, Replaces AP3676228 PS958945 WD12X10107
    WD12X10136
    WD12X10136 Lower Dishrack Roller Compatible with GE Hotpoint RCA Kenmore, Replaces AP3676228 PS958945 WD12X10107
    $25.99 Original price was: $25.99.$18.99Current price is: $18.99.
    W10350375 Dishwasher Upper Rack Adjuster Kit Compatible with Whirlpool KitchenAid Kenmore, Replaces W10712395 AP5957560 W10250159 PS10065979
    W10350375
    W10350375 Dishwasher Upper Rack Adjuster Kit Compatible with Whirlpool KitchenAid Kenmore, Replaces W10712395 AP5957560 W10250159 PS10065979
    $33.99 Original price was: $33.99.$24.99Current price is: $24.99.
    WD12X10304 Dishwasher Rack Slide End Cap Compatible with GE Hotpoint Kenmore, Replaces AP4484666 WD12X0344 WD12X344 PS2370502 1556527
    WD12X10304
    WD12X10304 Dishwasher Rack Slide End Cap Compatible with GE Hotpoint Kenmore, Replaces AP4484666 WD12X0344 WD12X344 PS2370502 1556527
    $22.99 Original price was: $22.99.$16.99Current price is: $16.99.

    Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
