Fridge or freezer compartment fails to maintain set temperature even though compressor is running — caused by loss of airflow over evaporator coils.
Motor bearings worn or fan blade obstructed by ice buildup, producing continuous humming, grinding, or buzzing from behind the rear panel.
Evaporator fan blade is seized or motor windings have open continuity — fan does not turn when door switch is manually activated.
On dual-evaporator models, a failed fresh-food evaporator fan motor stops cold air circulation to the refrigerator section while freezer remains cold.
💡 Pro Tip: How to Diagnose a Failed Evaporator Fan Motor
Your part is likely the culprit if you notice any of the following:
⚠️ Refrigerator or freezer compartment not cooling properly despite compressor running
⚠️ Loud humming, grinding, or buzzing noise coming from the back panel of the fridge or freezer section
⚠️ Fan blade does not spin freely when turned by hand — motor bearings seized
⚠️ Multimeter continuity test on motor windings shows open circuit (no continuity)
🔍 Diagnostic tip: Open the freezer door and manually press the door switch to activate the fan. If the fan does not spin or makes unusual noise while compressor is running, the evaporator fan motor needs replacement. Also check for ice buildup around the fan blade — frost blockage can mimic motor failure. Defrost completely before condemning the motor.
📦 What's in the Box

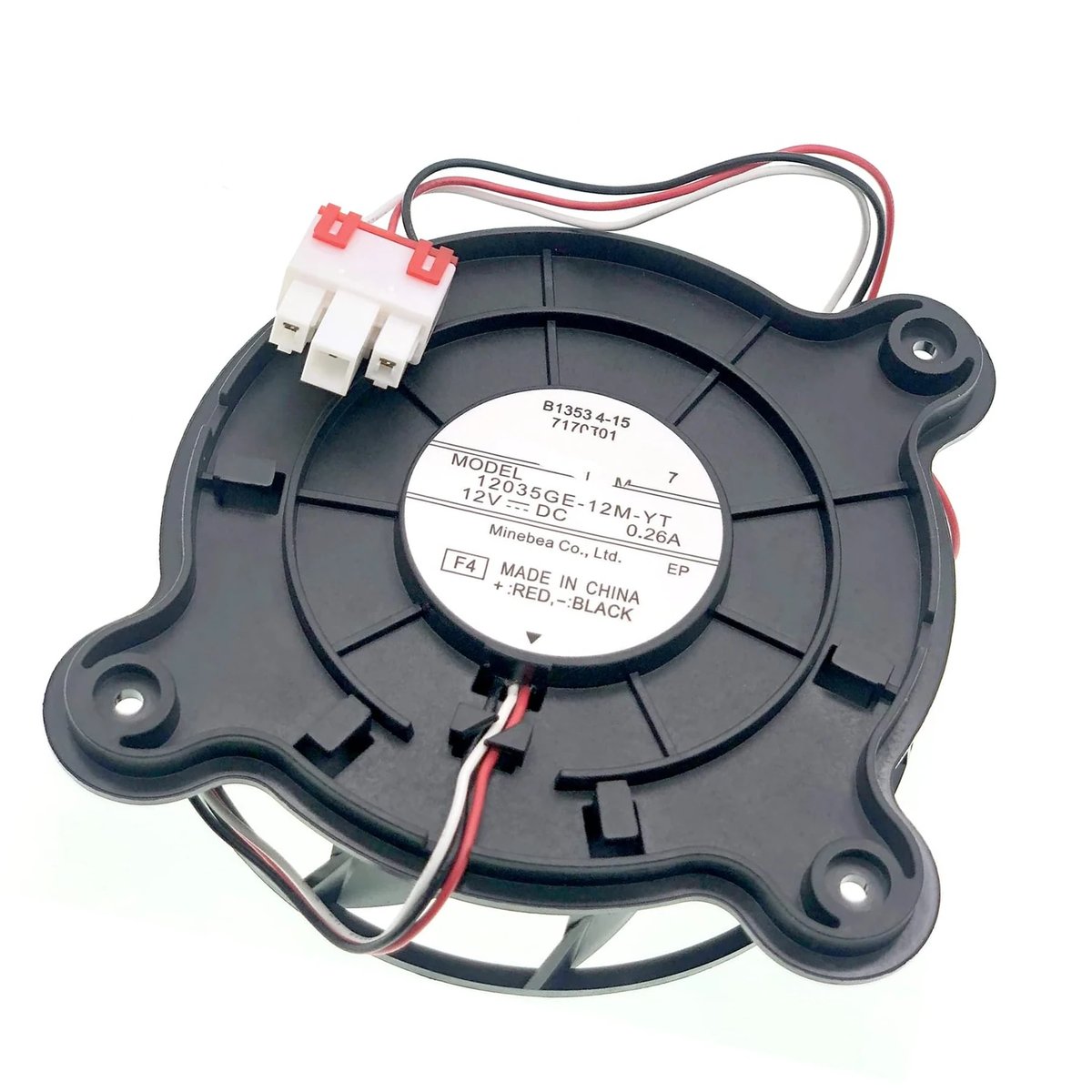

✅ 1× 12035GE-12M-YT BLDC Evaporator Fan Motor Assembly with 3-Wire Harness (DC 12V / 0.26A / 100×100mm)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
