How to Extend Your Whirlpool Suspension Rod Life — Maintenance Guide

6 min read

May 24, 2026

Extends element life 2–3x

Avg element lifespan

5–7 years

With proper care

10–12 years

Most common damage

Spring stretching from overloading, rod corrosion in humid environments, premature wear from consistently unbalanced loads

Maintenance schedule

After each use

Distribute loads evenly

Spread laundry items around the basket perimeter rather than clumping them together. This prevents uneven stress on individual suspension rods and extends their service life.

Monthly

Inspect for excessive movement

Run a high-speed spin cycle with a normal load and observe the washer from outside. Any walking or loud banging indicates developing suspension issues that need attention.

Annually

Visual rod inspection

Pull washer away from wall and inspect visible suspension rods with a flashlight. Check for rust, spring deformation, or rod bending. Catching corrosion early prevents complete failure.

Disconnect power before inspecting suspension rods. Do not operate washer if excessive movement or loud banging occurs during spin cycle — continued use can damage the outer tub and cabinet.

After-each-use checklist

Check for visible rust or corrosion on rod shafts

Surface rust is normal; deep pitting or flaking requires replacement

Inspect spring coil spacing for uniformity

All four springs should look identical — stretched springs indicate failure

Test for excessive washer movement during spin

Machine should stay firmly in place with normal loads

Verify washer completes full spin cycles

Stopping mid-cycle may indicate suspension sensor activation

Listen for unusual banging or grinding sounds

Loud metal-on-metal sounds mean immediate inspection needed

Check for oil leaks beneath washer

Leaking damper fluid indicates rod seal failure

Signs your element needs replacement

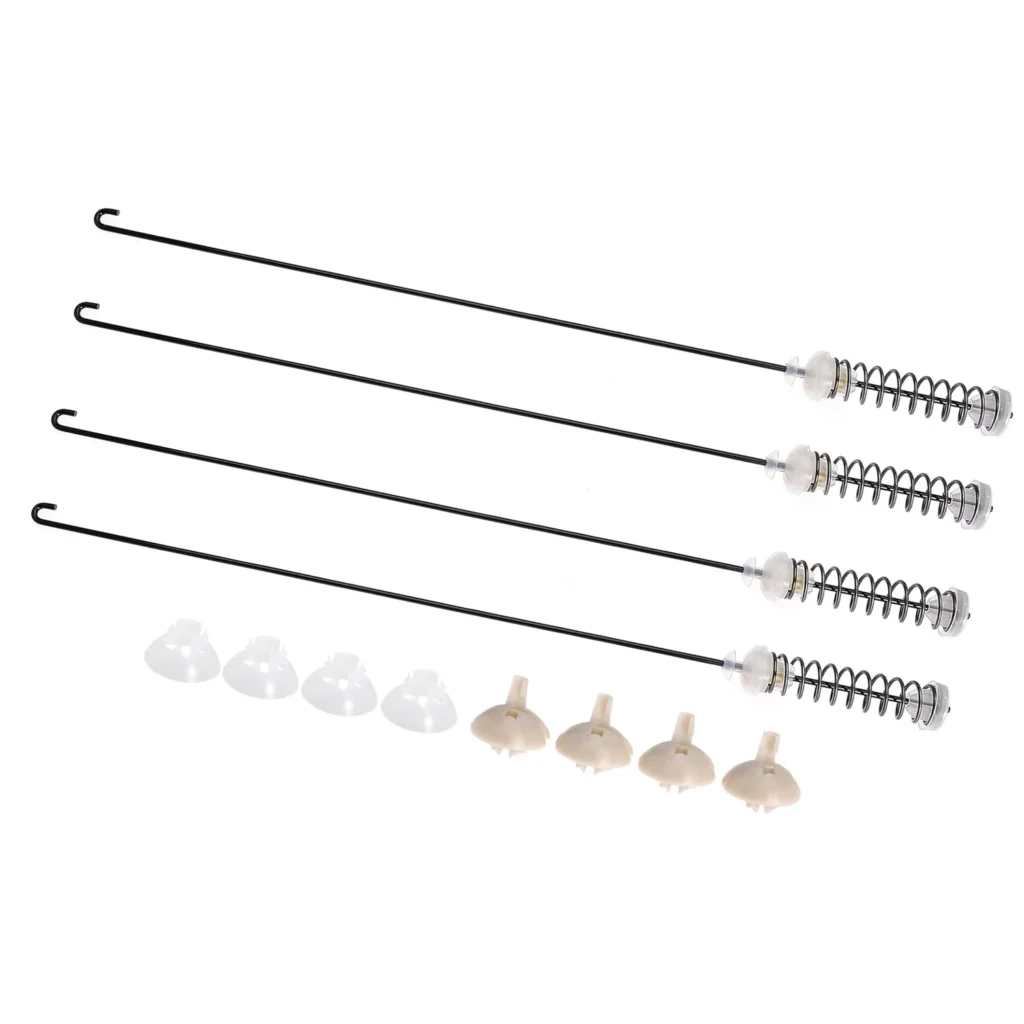

W10780045 W10780045 Suspension Rod Kit Compatible with Whirlpool Maytag Amana Kenmore, Replaces AP5971396 W10537442 W10780053 W10821951 W10821956

Most suspension rods fail between 5-7 years, but I've seen them last 12+ when properly maintained. The problem? Most people don't realize these rods need attention until their washer is walking across the laundry room floor during spin cycle.

The W10780045 suspension rod kit supports the entire wash basket in models like the WTW4815EW0, WTW4816FW2, and 7MWTW1904DM0. When one rod weakens, the others compensate — creating an imbalanced load that accelerates wear on all four. It's a domino effect that starts with a small wobble and ends with your washer sounding like a cement mixer.

How Long Should It Last?

Under normal conditions, these suspension rods should give you 7-10 years of service. The springs integrated into the rods handle thousands of compression cycles during every wash. Heavy loads, unbalanced washing, and overloading can cut that lifespan in half.

I've replaced rods on 3-year-old machines where the owners consistently overloaded the basket. Conversely, I've seen 15-year-old machines with original rods still functioning because the owners followed capacity guidelines and distributed loads evenly.

The key factor? How you load your washer matters more than how often you use it. A properly balanced load of towels creates less stress than a tangled clump of jeans wedged to one side.

Signs It's Wearing Out

Suspension rods don't fail suddenly — they give you warning signs weeks or months before complete failure. Here's what to watch for:

Shaking and Moving During Spin Cycle

This is the first symptom most people notice. If your washer starts walking across the floor or banging against nearby walls during high-speed spin, your suspension rods are weakening. The movement typically gets worse with heavier loads like comforters or multiple bath towels.

Test this: run an empty spin cycle. If the machine stays put when empty but moves with a load, you're looking at suspension issues, not a leveling problem.

Spinning Issues or Incomplete Cycles

When suspension rods fail, the machine's internal sensors detect excessive movement and stop the spin cycle as a safety measure. You'll open the lid to find soaking wet clothes that should've been spun out. The washer might display an error code or simply refuse to complete the cycle.

On models like the WTW4810EW2 and 1CWTW4845EW1, this safety mechanism prevents the basket from hitting the outer tub and causing more expensive damage.

Visible Spring Damage or Rod Corrosion

Pull back your washer and inspect the rods with a flashlight. Look for rust on the rod shaft, stretched springs, or any visible bending. The springs should be uniform with consistent coil spacing. If one spring looks longer than the others, that rod is compromised.

Basement washers and machines in humid environments show corrosion faster. I've seen rods rust through on machines kept in damp crawl spaces.

When to Replace vs Maintain

Here's the honest truth: suspension rods can't really be maintained once they're installed. They're sealed units. What you can do is prevent premature failure and catch problems early.

Replace immediately if you see:

Any visible bending or deformation of the rod shaft
Rust or corrosion that's more than surface discoloration
Spring coils that are noticeably stretched or compressed
Oil leaking from the damper portion (if equipped)

The W10780045 kit includes all four rods and springs. Yes, you could replace just one failed rod, but the others have endured the same number of cycles and stress. Replace all four to avoid doing this job again in six months. I learned this the hard way after a callback from a customer whose "repaired" washer failed again three months later — different rod, same age-related wear.

Important note: these rods come as a complete assembly. The spring isn't sold separately, which customers often ask about. If your spring is damaged, you need the full rod replacement.

Frequently Asked Questions

Can I just replace one suspension rod instead of all four?

Technically yes, but I don't recommend it. The rods work as a balanced system. If one has failed from age-related wear, the others are close behind. Replacing all four with the W10780045 kit saves you from repeating this repair when another rod fails in a few months. Plus, mismatched rod conditions create uneven suspension that actually accelerates wear on the newer rod.

Why does my washer still shake after I leveled it?

Leveling addresses the floor surface, but suspension rods handle internal basket movement during spin. If you've properly leveled the machine on a solid floor and it still shakes violently, your suspension system is worn out. The shaking comes from inside the cabinet, not from how the washer sits on the floor. Check your rods — models like the 3LWTW4815FW0 and 2DWTW4705EW0 are particularly sensitive to worn suspension components.

How do I make my suspension rods last longer?

Load distribution is everything. Don't wrap everything into a ball before tossing it in. Spread items around the basket perimeter. Never exceed the manufacturer's capacity recommendations — that "max fill" line exists for a reason. Run smaller loads more frequently rather than cramming everything into one overloaded wash. And if you live in a humid environment, consider running a dehumidifier in your laundry area to minimize corrosion on the metal components.
