How to Replace 8201756 Ice Dispenser Door Chute Kit on Whirlpool Refrigerator — Step-by-Step

You press the dispenser lever and hear ice tumbling, but nothing comes out. Or worse — ice chunks fall out, then clatter back inside through gaps in the chute door. That's your dispenser door chute kit failing, and it's one of the most annoying refrigerator problems because you know the ice is right there, just trapped.

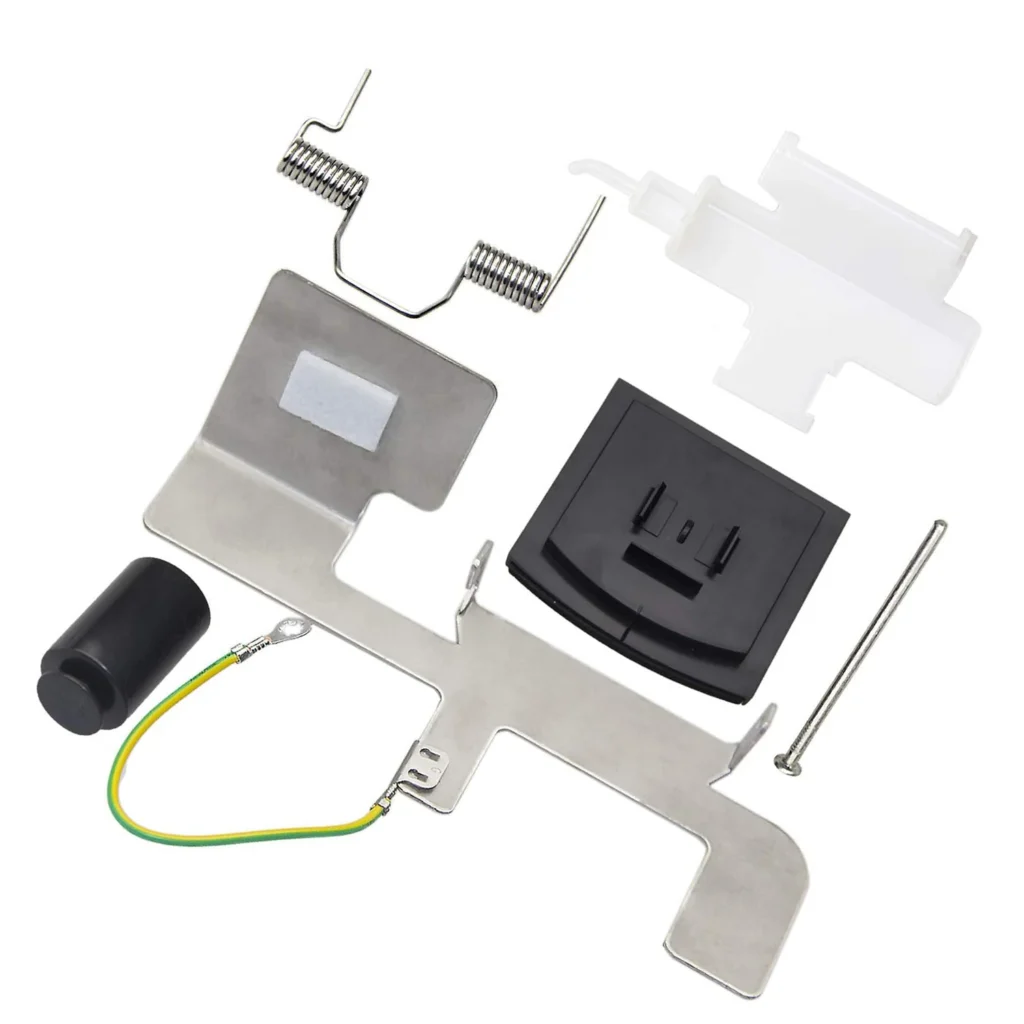

The 8201756 chute kit controls the door flap that opens when you press your glass against the lever. When the plastic hinge cracks or the spring mechanism wears out, ice either won't dispense at all or falls through gaps. This repair takes less than 30 minutes and doesn't require pulling the fridge out from the wall.

What You Need Before Starting

• Phillips screwdriver
• Flathead screwdriver (for panel clips)
• Towel (to catch any ice that falls)
• Flashlight or phone light

Estimated Time: 20-30 minutes
Difficulty: Easy — no technical experience needed

Safety First

You don't need to unplug the refrigerator for this repair since you're only working on the mechanical dispenser assembly. However, ice will likely fall out when you remove the old chute, so keep that towel handy. If your fridge has been overfilling the ice bin, expect a small avalanche when you open things up.

Step 1: Remove the Dispenser Control Panel

Open your freezer door and look at the dispenser housing from inside. You'll see 2-3 screws holding the control panel in place — they're usually along the top edge. Remove these Phillips screws and set them aside. Gently pull the panel forward, but don't yank it. There's a wire harness connected to the back for the control board. You can either disconnect it (press the tab and pull) or let the panel hang to the side while you work.

Step 2: Access the Chute Door Assembly

With the panel removed, you'll see the ice chute opening and the door mechanism. The chute kit sits at an angle, directing ice from the bin down through the dispenser opening. Look for the mounting clips or screws holding it in place — typically two spring clips on either side. Use your flathead screwdriver to carefully release these clips. The old chute assembly should pull straight out once the clips are free.

Step 3: Install the New 8201756 Chute Kit

Line up the new chute kit with the mounting holes. You'll notice the door flap has a spring mechanism that keeps it closed when not in use. Make sure this spring isn't caught or twisted before you snap it into place. Press firmly on both sides until you hear the clips engage. The chute should sit flush against the opening with no gaps — gaps mean ice will fall back through instead of dispensing.

Step 4: Test the Door Mechanism

Before reassembling everything, manually push the dispenser lever arm that contacts the chute door. The door should open smoothly and snap back closed when you release pressure. If it sticks or doesn't close completely, remove the chute and check that the spring tabs are properly seated. This is crucial — a door that doesn't close fully will let ice melt and refreeze into clumps.

Step 5: Reassemble the Control Panel

Reconnect the wire harness if you unplugged it (you'll hear a click when it's secure). Position the control panel back over the opening and replace the screws you removed in Step 1. Don't overtighten — you're threading into plastic, and stripping these holes means you'll need a whole new housing.

Testing After Installation

Close the freezer door and grab a glass. Press it against the dispenser lever and listen. You should hear ice dropping immediately — no delays, no rattling from ice bouncing around inside. Dispense a full glass to make sure ice flows consistently. If you hear ice dropping but nothing comes out, the chute angle might be off. Remove the panel again and make sure the chute assembly is seated completely in the mounting clips.

Check for gaps around the chute door by shining your flashlight up into the dispenser opening. You shouldn't see light coming through from inside the freezer when the door is closed. Any visible gaps mean ice and cold air are escaping.

Frequently Asked Questions

Will this fit my KitchenAid or Kenmore fridge?

The 8201756 kit works across multiple brands because Whirlpool manufactures the ice dispensers for KitchenAid, Kenmore Elite, and Amana side-by-sides. Check your model number against the compatibility list — if you have an ED5 or ED2 series Whirlpool, this is your part. Kenmore models starting with 795 (which are Whirlpool-built) also use this chute.

Why does ice keep jamming even after I replaced the chute?

If the new chute door opens and closes properly but ice still jams, check your ice maker's fill level. Overfilled ice bins cause cubes to bridge across the chute opening, blocking flow. Also check the ice bucket itself — cracks in the bucket let ice cubes shift into positions where they can't drop through the chute properly.

Can I just glue the old chute door instead of replacing it?

Don't bother. The chute door experiences constant freeze-thaw cycles and mechanical stress every time you dispense ice. Epoxy or plastic glue might hold for a few days, but it'll fail again — usually while you're holding a glass under the dispenser, wondering why nothing's happening. The replacement kit costs less than dealing with a second failure.
