Whirlpool Refrigerator Not Dispensing Water — 4 Causes & How to Fix

You press the dispenser paddle and hear the mechanism click, but nothing comes out. Maybe you get a sad trickle that takes 30 seconds to fill a cup halfway. Your Whirlpool WRF535SWHZ worked perfectly yesterday, and now you're filling water bottles from the tap like it's 2005.

The water inlet valve controls water flow to both your ice maker and dispenser. When it fails, you'll notice problems with both systems — or sometimes just one. Here's how to diagnose which part is actually broken.

Quick Symptom Check

Before you start pulling parts, verify what's actually happening:

• Press the water dispenser: No water at all, or just a weak dribble?
• Check the ice maker: Has ice production stopped completely?
• Look under the fridge: Any water pooling on the floor?
• Listen closely: Do you hear a buzzing or clicking when pressing the dispenser?
• Inspect inside: Is there ice buildup around the water line or valve area?

If you're seeing multiple symptoms — like no water AND no ice — the inlet valve is your prime suspect. Let's work through this systematically.

Cause #1: Failed Water Inlet Valve (65% of Cases)

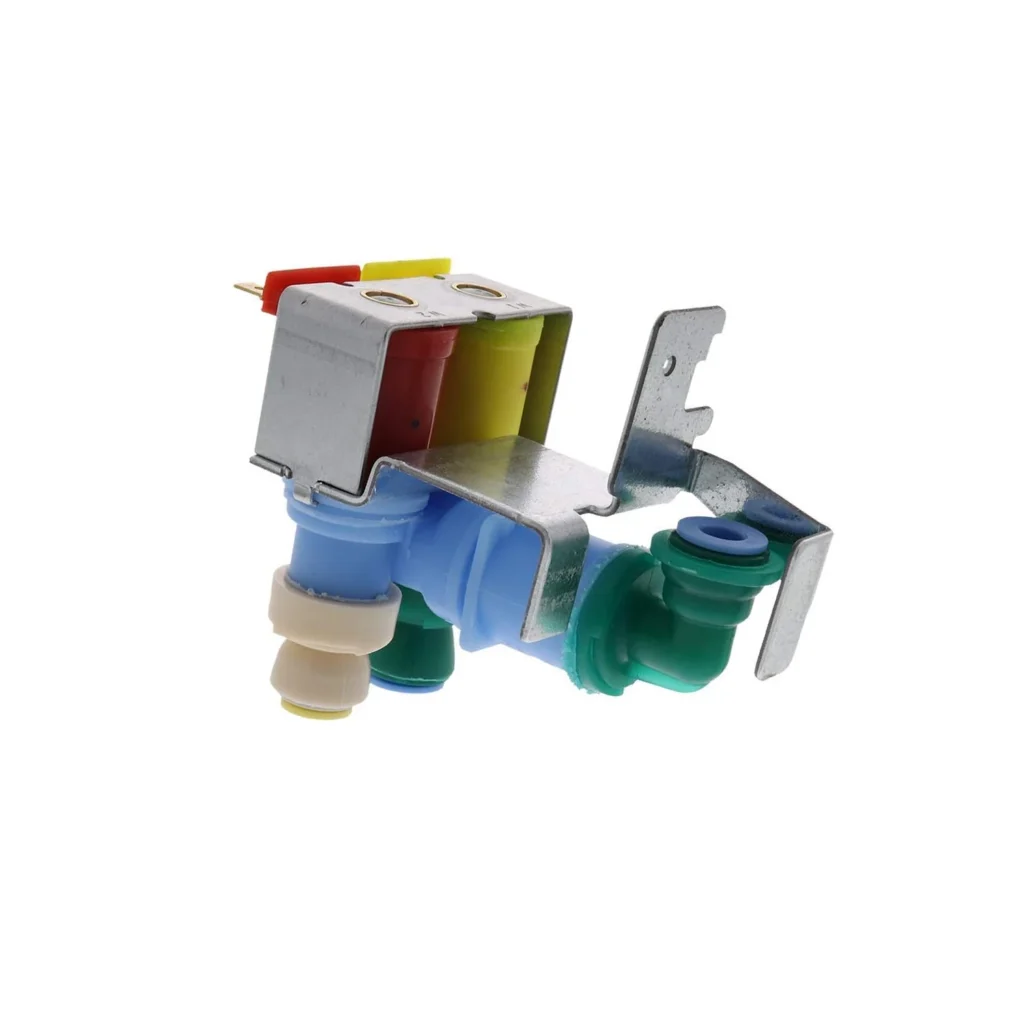

What it does: The W10420083 valve is an electronic solenoid that opens when you press the dispenser or when your ice maker calls for water. It's got two coils inside — one for the dispenser, one for the ice maker.

Why it fails: Sediment buildup clogs the tiny screen filter inside the valve. Hard water deposits corrode the solenoid coils. After 5–8 years of constant cycling, the mechanical parts just wear out.

How to diagnose:

1. Unplug the fridge and locate the valve at the back bottom (you'll need to pull the fridge out)
2. Check if the water line has good pressure by disconnecting it briefly into a bucket — should be strong flow
3. Use a multimeter to test the valve solenoids: should read 200–500 ohms across each coil terminal
4. If you get infinite resistance or zero, the valve is dead

The fix: Replace the valve. It's a 20-minute job with just a screwdriver and channel locks. Turn off the water supply, disconnect the old valve, swap in the new W10420083, and reconnect everything. Models like the KRFC300ESS and WRX735SDBM00 use this exact same valve.

Cost: $112.99 for the OEM part, about $200–$300 if you hire someone.

Cause #2: Frozen Water Line (20% of Cases)

Your valve might be fine — the water line could be frozen solid somewhere between the valve and the dispenser. This happens when your freezer temperature drops too low (below 0°F) or when warm humid air keeps entering the freezer.

How to diagnose:

• Freezer temperature reads colder than 5°F
• You see frost buildup along the back wall
• The ice maker stopped working at the same time as the dispenser
• Sometimes water works, sometimes it doesn't (intermittent freezing)

The fix: Unplug the fridge for 6–8 hours to thaw everything. Check your freezer temperature setting — should be around 0°F to 5°F. If it keeps freezing, you've got a defrost system problem (different issue entirely).

Cause #3: Low Water Pressure from Supply Line (10% of Cases)

The inlet valve needs at least 20 PSI to open properly. If your home water pressure is weak, or if there's a kink in the supply line, the valve won't get enough pressure to trigger.

How to diagnose:

• Disconnect the water line at the valve and turn on the supply — should fill a quart container in under 10 seconds
• Check for kinks in the line behind the fridge
• Look for a partially closed shut-off valve
• Verify your home's main water pressure (should be 40–80 PSI)

The fix: Straighten kinked lines, fully open the shut-off valve, or replace a clogged supply line. If your whole house has low pressure, that's a plumbing issue beyond the fridge.

Cause #4: Clogged Water Filter (5% of Cases)

This one's embarrassingly simple. Your water filter cartridge is supposed to be changed every 6 months. If it's been 18 months, it's probably restricting flow so much that the valve can't work properly.

How to diagnose: Remove the water filter completely and try the dispenser. If water flows normally without the filter, you just solved it.

The fix: Install a fresh filter. Or if you're on well water or don't care about filtration, you can run without a filter using the bypass plug.

When to Call a Pro

The valve replacement itself is straightforward. But if you've replaced the W10420083 valve and you're STILL not getting water, you might have:

• A control board issue sending wrong signals to the valve
• Broken wiring between the board and valve
• A failed door switch (fridge thinks the door is open, won't dispense)
• Frozen lines deep inside the door that require disassembly

These scenarios need someone who can trace electrical circuits and access hidden components. If you're uncomfortable working with water lines or pulling the fridge out, it's worth the service call.

Frequently Asked Questions

How long does a refrigerator water inlet valve typically last?

Most inlet valves last 7–10 years with normal use. If you've got hard water with high mineral content, you might see failures at 5–6 years. The sediment screen gets clogged faster, and the solenoid coils corrode from constant mineral exposure. Installing an inline filter before the valve can double its lifespan.

Can I repair the W10420083 valve instead of replacing it?

Not really. You could try cleaning the sediment screen, but if the solenoid coils are burned out or the internal diaphragm is cracked, there's no fixing it. These valves are sealed units. Replacement is faster and more reliable than attempting repairs. The $112.99 OEM part gives you peace of mind for another decade.

Why does my ice maker still work but the water dispenser doesn't?

The W10420083 has two separate solenoid coils — one for ice, one for water. If only the dispenser coil fails, the ice maker coil might still function normally. This is actually pretty common. The dispenser gets used more frequently (multiple times per day), while the ice maker cycles less often (maybe 8–10 times per day). Eventually both coils fail, but one usually goes first.
