LG Washer Won't Start — Lid Lock Assembly Stuck or Clicking

You load the washer, press start, and... nothing. Just a repetitive clicking sound where the lid lock should engage. Or maybe the washer simply refuses to begin the cycle, displaying an error code you've never seen before. For LG washers in the WTL and WT series — including models like the WT21WV6, WM3500CW, and WM3700HVA — this scenario almost always traces back to a failed lid lock assembly.

The lid lock isn't just a safety feature. It's the electronic gatekeeper that confirms the lid is closed before allowing the washer to spin. When it fails, your washer thinks the lid is open even when it's not.

Quick Symptom Check

• Washer won't start cycle — control panel lights up but nothing happens when you press start
• Rapid clicking noise from the lid area — the lock mechanism attempting and failing to engage
• Door/Lid error code — often dE, dE1, or dE2 on LG models
• Control panel frozen after selecting cycle — stuck at "sensing" or initial stage
• Lid light stays on indicating the washer thinks the lid is open
• Manual lid unlock doesn't work — you can't release it even after powering off

Cause #1: Lid Lock Assembly Electrical Failure

Probability: 75%

The lid lock assembly contains both a mechanical latch and an electronic switch. The electronic portion fails first in most cases — usually from voltage spikes, moisture exposure from humid laundry rooms, or simple wear after thousands of cycles.

How to diagnose:

1. Unplug the washer completely
2. Open the lid and locate the lid lock assembly (top center of the washer opening)
3. Remove the two screws securing the assembly — you'll need to lift the top panel on some models like the WT19WV6
4. Disconnect the wire harness and check for burn marks, corrosion, or loose pins
5. Use a multimeter set to continuity mode — test between the lock terminals with lid closed
6. You should get continuity when the lock engages. No continuity = failed assembly

On models like the WM3170CW and WM3670HVA, the assembly is behind the top control panel. You'll need to remove the detergent dispenser drawer first, then access screws underneath.

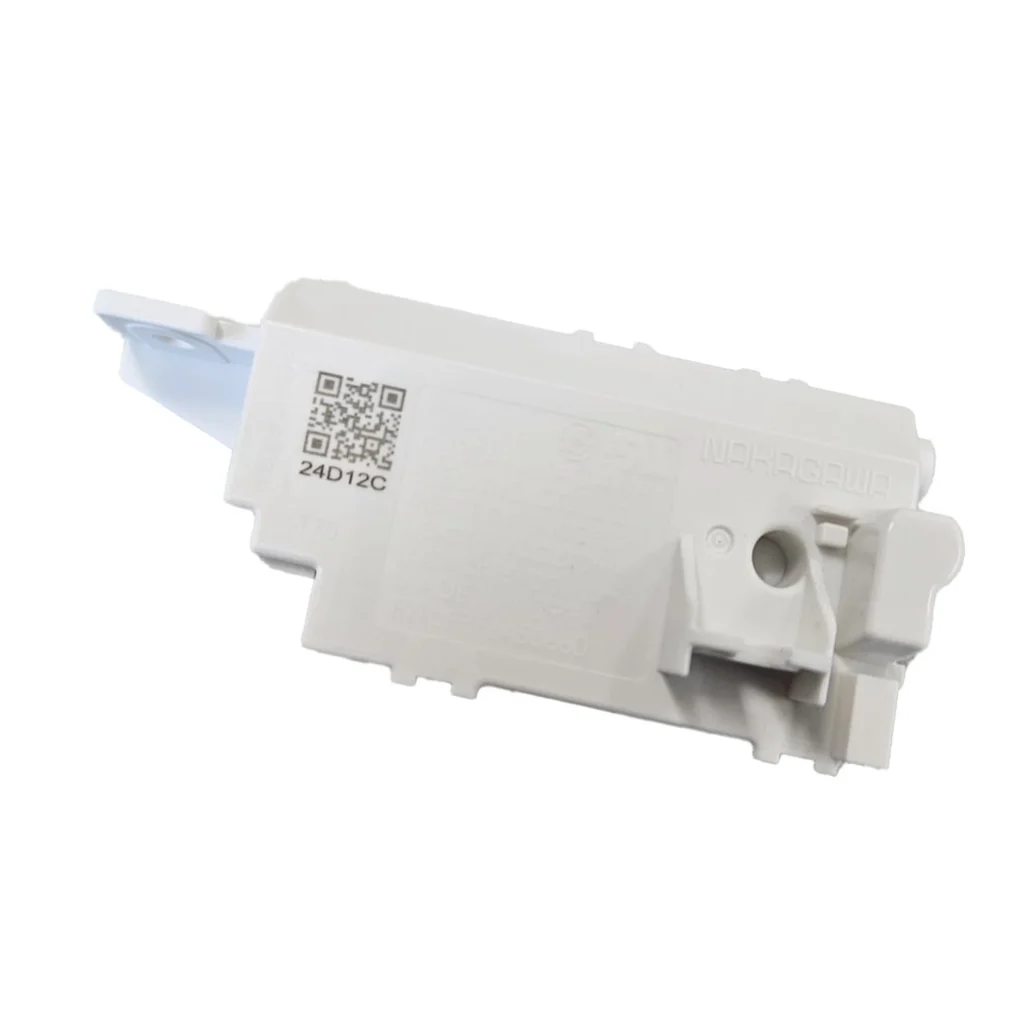

The fix: Replace the entire lid lock assembly with EBF64556603. This part supersedes the older EBF64556602 and EBF64556604 versions and fits the entire WTL and WT series lineup. Cost runs $45–$65 depending on where you source it.

Cause #2: Broken Lid Strike or Misalignment

Probability: 15%

The lid lock can't engage if the strike plate (the piece on the lid that the lock grabs) is broken or misaligned. This happens after someone forces the lid open during a cycle or if the lid hinges have loosened over time.

How to diagnose:

1. Open the lid and inspect the plastic strike piece — it's on the underside of the lid, centered
2. Look for cracks, missing chunks, or visible movement when you wiggle it
3. Close the lid slowly and watch whether the strike aligns directly with the lock assembly
4. Check if the lid sits flush when closed — gaps indicate hinge problems

The fix: If the strike is broken, you'll need to order a replacement strike plate (separate part number, usually around $12). If it's just misaligned, tighten the lid hinge screws. Some models allow you to adjust the lid position slightly by loosening and repositioning the hinge bolts.

Cause #3: Wiring Harness Damage

Probability: 8%

Less common but worth checking: the wire harness connecting the lid lock to the main control board can develop breaks or short circuits. This is especially true on older WT18 and WTL3 series models where vibration over years works wires loose.

How to diagnose:

1. With the washer unplugged, trace the wires from the lid lock down into the cabinet
2. Look for pinched wires, worn insulation, or connectors that feel loose
3. Wiggle the harness while someone else watches for movement at the connection points
4. Check the connector at both ends — lid lock side and control board side

The fix: Repair damaged wiring with heat-shrink connectors or replace the entire harness if multiple breaks exist. Clean any corroded connector pins with contact cleaner.

Cause #4: Main Control Board Communication Error

Probability: 2%

Occasionally the lid lock assembly is fine, but the main control board stops communicating with it. This creates the same symptoms but replacing the lock won't help.

How to diagnose:

1. If you replaced the lid lock and symptoms persist, suspect the control board
2. Run a diagnostic cycle (press Temp + Options simultaneously, then Spin + Options to enter test mode)
3. Select the lid lock test — if nothing happens and the new lock is properly wired, the board is faulty
4. Check for other error codes or strange behavior that suggests broader control issues

The fix: Main control board replacement runs $200–$350 depending on model. This is where you start weighing repair costs against washer age.

When to Call a Pro

You can handle lid lock replacement yourself if you're comfortable with basic tools and following diagrams. It's usually a 20-minute job on top-load models, 45 minutes on front-loaders where you need to disassemble more panels.

Call a technician if:

• You've replaced the lid lock and checked all wiring but symptoms continue
• The diagnostic mode shows errors beyond the lid lock
• You're uncomfortable working with electrical connectors
• Your washer is still under warranty (DIY repair voids most coverage)

For models like the WM3600HVA and WM3700HVA, the front-load design makes access trickier. If you're not confident removing the top control panel assembly, a service call might save you from creating new problems.

Frequently Asked Questions

Can I bypass the lid lock to test if the washer works?

You can temporarily jumper the lid lock connector to see if the washer runs, but don't operate it this way. The lid lock prevents the washer from spinning with the lid open — bypassing it creates a serious safety hazard. Use this test only to confirm diagnosis, then properly install the replacement part before regular use.

Why does my LG washer click 6 times then stop?

The clicking is the lid lock solenoid attempting to engage. Six clicks followed by stopping indicates the washer tried the maximum number of lock attempts before giving up and throwing an error. This pattern confirms the lid lock assembly has failed and isn't sending the proper signal back to the control board.

Will any lid lock fit my LG washer or do I need the exact part number?

The EBF64556603 is designed specifically for LG WTL and WT series models. It replaces older versions EBF64556602 and EBF64556604. While these three are interchangeable within the compatible model range (check the full list for your specific model), using a non-compatible lock from a different series won't work — the mounting holes, connector type, and electronic specifications differ.
