Home/Dishwasher Parts/Dishwasher Thermal Fuse/W10402110
On Sale
W10402110 Dishwasher Thermal Fuse Kit Compatible with Whirlpool KitchenAid Kenmore Amana, Replaces AP5645909 W10195528 PS4704481 W10402110VP
  • W10402110_1
  • W10402110_2
  • W10402110_3
  • W10402110_4
  • W10402110_5
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 104 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

W10402110 Dishwasher Thermal Fuse Kit Compatible with Whirlpool KitchenAid Kenmore Amana, Replaces AP5645909 W10195528 PS4704481 W10402110VP

SKU: W10402110
OEM RetailBranded
$35.60
Via distributor
Source: AppliancePartsPros.com · Mar 2026
OEM brand & packaging
Factory direct price
1-year warranty
Our PartBest Value
$23.99
Factory direct
OEM-Compatible
Meets OEM specifications
Factory direct price
1-year warranty
Save by going factory direct
OEM-compatible · no distributor markup
$11.61
33% less than OEM retail
Repair Time15-20 Minutes
DifficultyEasy
DIY FriendlyYes
Tools Needed
MultimeterPhillips ScrewdriverFlat-head ScrewdriverNeedle-nose Pliers
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
W10402110 Dishwasher Thermal Fuse Kit Compatible with Whirlpool KitchenAid Kenmore Amana, Replaces AP5645909 W10195528 PS4704481 W10402110VP
$32.99 Original price was: $32.99.$23.99Current price is: $23.99.
In Stock

This Part Fixes These Problems

Dishwasher Won't Start

Dishwasher is completely unresponsive — no lights, no sounds, no cycle initiation. A blown thermal fuse cuts all power to the unit.

No Power to Control Panel

Display and buttons are completely dark and unresponsive. The thermal fuse is the first component to check when the panel won't illuminate.

Dishwasher Shuts Off Mid-Cycle

Appliance stops unexpectedly during wash or rinse cycle and cannot be restarted. Indicates the fuse tripped due to an overheating event.

Intermittent Operation

Dishwasher runs unreliably — starts sometimes but not others. A partially degraded thermal fuse can cause erratic electrical continuity.

Thermal Fault Error Code

Control board displays an error code related to thermal protection. Replacing the fuse clears the fault and restores normal operation.

Repair Guides

How to Replace W10402110 Dishwasher Thermal Fuse on Whirlpool & KitchenAid — Step-by-Step
May 28, 2026
How to Extend Your Whirlpool Dishwasher Thermal Fuse Life — Maintenance Guide
May 27, 2026

Product Description

Why Choose Our W10402110 Dishwasher Thermal Fuse Kit?

🔧
Built to OEM SpecificationsEngineered to match OEM W10402110 dimensions and electrical ratings — direct drop-in replacement with no modification required on most models.
🛡️
Overheat Protection RestoredThe thermal fuse acts as your dishwasher's last line of defense — it cuts electrical power the instant internal temperature exceeds a safe threshold, preventing component damage or fire risk.
🏷️
Wide Brand CompatibilityConfirmed fit for Whirlpool, KitchenAid, Kenmore, Amana, Maytag, Magic Chef, Crosley, and Estate dishwasher models — one kit covers hundreds of units.
📦
Complete Installation KitIncludes the thermal fuse, protective insulating sleeve, aluminum foil wrap, and zip ties — everything needed for a clean, secure install right out of the box.
⚡
Premium Heat-Resistant MaterialsConstructed from high-grade, heat-resistant polymer and metal components with excellent mechanical performance and reliable insulation — built to endure repeated thermal cycling.
💰
Save vs. OEM PriceOEM reference price is $35.60–$55.85 depending on retailer. Our aftermarket kit delivers the same fit and function at a fraction of the cost — no service call needed.

💡 Pro Tip: How to Know Your Thermal Fuse Has Blown

Your part is likely the culprit if you notice any of the following:

⚠️ Dishwasher completely dead — no lights, no response when pressing buttons

⚠️ Control panel does not illuminate but the door beeps when closed

⚠️ Dishwasher cuts out mid-cycle without warning and won't restart

⚠️ Error codes on display indicating a thermal or overheat fault

🔍 Diagnostic tip: Use a multimeter set to continuity mode and probe both terminals of the fuse. A good fuse will beep (closed circuit). No continuity = blown fuse — replace immediately. Always also check the door latch (W10619006) and control board (WPW10380685) before ordering, as all three can cause a no-power symptom.

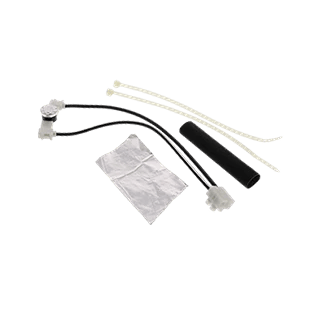

📦 What's in the Box

✅ 1× Thermal Fuse (W10402110 compatible)

✅ 1× Protective Insulating Sleeve

✅ 1× Aluminum Foil Wrap

✅ Zip Ties for secure mounting

Questions & Answers

Will this fuse kit work on my Kenmore Elite dishwasher that suddenly went completely dead?
Answered by Support Team  ·  Mar 15, 2024
Yes — if your Kenmore Elite dishwasher has lost all power (no lights, no response), the thermal fuse W10402110 is the most likely cause. First test the existing fuse with a multimeter for continuity. No continuity confirms it has blown. Our W10402110-compatible kit is a direct replacement. Also inspect the door latch and control board if replacing the fuse alone doesn't restore power.
Why does the kit include a wire harness and extra hardware — can't I just replace the fuse itself?
Answered by Support Team  ·  Nov 20, 2023
The OEM W10402110 is packaged as a full kit because the fuse is not sold individually under its own separate part number. The included wire harness, protective sleeve, foil wrap, and zip ties are all part of the proper installation. Importantly, you should never reuse the old wire harness — heat cycling over time degrades the connectors and can cause the new fuse to fail prematurely.
My KitchenAid KUDS30IXSS4 dishwasher cuts out during the cycle. Is this the right part?
Answered by Support Team  ·  Jan 8, 2025
Yes, the KitchenAid KUDS30IXSS4 is a confirmed compatible model for W10402110. A dishwasher that stops mid-cycle and won't restart is a classic symptom of a tripped thermal fuse. Test with a multimeter — if you get no continuity reading across the fuse terminals, replace it with our kit. Also consider checking your dishwasher's exhaust path and door gasket for any blockages that may have caused the initial overheating.
What is the difference between W10402110 and W10195528?
Answered by Support Team  ·  Jul 22, 2024
W10195528 is a superseded (older) part number for the same thermal fuse component. W10402110 is the current OEM part number that replaced it. Our kit is compatible with both references — it replaces W10195528, W10402110VP, AP5645909, PS4704481, and 2443847 interchangeably. If your parts list or appliance manual references W10195528, our W10402110-compatible kit is the correct modern replacement.
How do I know if the fuse is the problem versus the control board or door latch?
Answered by Support Team  ·  Feb 10, 2026
Use a multimeter on continuity mode: probe both terminals of the thermal fuse. A good fuse beeps (closed circuit); a blown fuse shows no continuity. If the fuse tests good, check the door latch (W10619006) for proper engagement — a faulty latch prevents cycle start. If both test good, the main control board (WPW10380685) may have failed. Always start with the fuse since it is the least expensive and most common failure point for a completely dead dishwasher.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.




    Customer Reviews

    Reviews

    There are no reviews yet.

    Be the first to review "W10402110" Cancel reply

    Your email address will not be published. Required fields are marked *

    Related Parts

    W10195840 Dishwasher Upper Rack Adjuster Positioner Compatible with Whirlpool KitchenAid Kenmore Maytag Jenn-Air, Replaces WPW10195840 AP6016800 1872228 PS11750093 W10418323
    W10195840
    W10195840 Dishwasher Upper Rack Adjuster Positioner Compatible with Whirlpool KitchenAid Kenmore Maytag Jenn-Air, Replaces WPW10195840 AP6016800 1872228 PS11750093 W10418323
    $35.99 Original price was: $35.99.$25.99Current price is: $25.99.
    W10083957V Dishwasher Food Chopper Blade Assembly Compatible with Whirlpool KitchenAid Maytag Kenmore Amana Jenn-Air, Replaces AP5983779 WP8268383 8268383 W10083957 4211710 PS11722146 W10083957VP WP8268383VP AP4260709
    W10083957V
    W10083957V Dishwasher Food Chopper Blade Assembly Compatible with Whirlpool KitchenAid Maytag Kenmore Amana Jenn-Air, Replaces AP5983779 WP8268383 8268383 W10083957 4211710 PS11722146 W10083957VP WP8268383VP AP4260709
    WD12X10136 Lower Dishrack Roller Compatible with GE Hotpoint RCA Kenmore, Replaces AP3676228 PS958945 WD12X10107
    WD12X10136
    WD12X10136 Lower Dishrack Roller Compatible with GE Hotpoint RCA Kenmore, Replaces AP3676228 PS958945 WD12X10107
    $25.99 Original price was: $25.99.$18.99Current price is: $18.99.
    165314 Dishwasher Lower Rack Wheel Compatible with Bosch Kenmore Gaggenau Thermador, Replaces 00165314 AP2802428 420198 423232 PS3439123
    165314
    165314 Dishwasher Lower Rack Wheel Compatible with Bosch Kenmore Gaggenau Thermador, Replaces 00165314 AP2802428 420198 423232 PS3439123

    Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
