The fan motor draws cold air over the evaporator coils and pushes it into the fresh-food section. A failed motor stops this airflow, leaving the fridge warm while the freezer stays cold.
Worn motor bearings or a seized rotor cause grinding, buzzing, or squealing sounds from the freezer compartment. Replacing the motor eliminates the noise entirely.
Intermittent winding failure causes the fan to run briefly and then stop. This leads to temperature fluctuations and compressor short-cycling.
Without adequate airflow from a working fan motor, moisture accumulates and freezes on the evaporator coils, further blocking cooling and eventually causing a complete freeze-up.
Poor air circulation caused by a weak motor forces the compressor to run non-stop trying to reach the set temperature, resulting in higher energy bills and premature compressor wear.
💡 Pro Tip: Is Your Evaporator Fan Motor the Culprit?
Your part is likely the culprit if you notice any of the following:
⚠️ Refrigerator section is warm while the freezer remains cold
⚠️ Loud grinding, buzzing, or squealing noise coming from the freezer area
⚠️ Evaporator fan starts then shuts off after a few seconds
⚠️ Excessive frost buildup on evaporator coils due to poor airflow
🔍 Diagnosis Tip: Open the freezer door and press the door switch manually. If you hear no fan hum or the fan blade does not spin freely, the motor winding has likely failed. Use a multimeter to confirm: an open circuit across the motor terminals confirms replacement is needed.
📦 What's in the Box

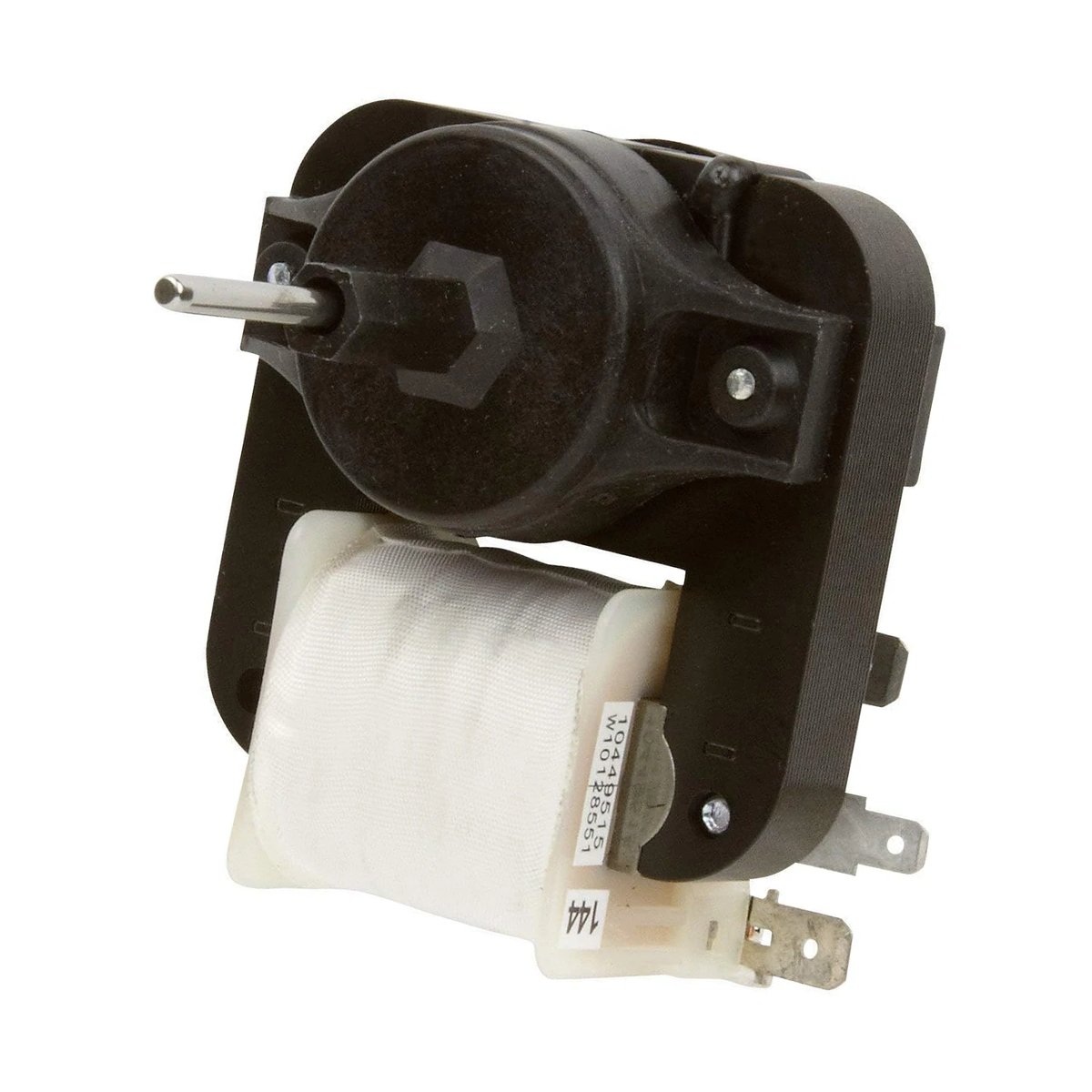

✅ 1× Freezer Evaporator Fan Motor (115V / 60Hz / 0.14A, shaft 1/8" dia × 5/8" length)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
