Home/Refrigerator Parts/Refrigerator Evaporator Fan Motor/DA31-00146E
On Sale

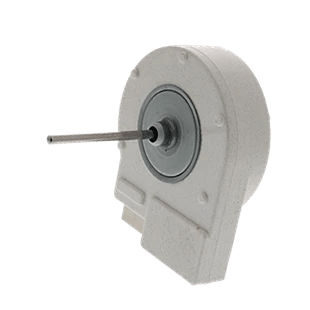

DA31-00146E Evaporator Fan Motor Compatible with Samsung, Replaces AP4136569 DA31-00146G 1486536 PS4138376
  • DA31 00146E_1
  • DA31 00146E_2
  • DA31 00146E_3
  • DA31 00146E_4
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 50 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

DA31-00146E Evaporator Fan Motor Compatible with Samsung, Replaces AP4136569 DA31-00146G 1486536 PS4138376

SKU: DA31-00146E
OEM RetailBranded
$152.64
Via distributor
Source: RepairClinic.com · Apr 2026
OEM brand & packaging
Factory direct price
1-year warranty
Our PartBest Value
$83.99
Factory direct
OEM-Compatible
Meets OEM specifications
Factory direct price
1-year warranty
Save by going factory direct
OEM-compatible · no distributor markup
$68.65
45% less than OEM retail
Order within --:-- to ship today
Repair Time30-45 Minutes
DifficultyEasy
DIY FriendlyYes
Tools Needed
Phillips screwdriverFlathead screwdriverNeedle-nose pliersMultimeter (for diagnosis)
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
DA31-00146E Evaporator Fan Motor Compatible with Samsung, Replaces AP4136569 DA31-00146G 1486536 PS4138376
$137.99 Original price was: $137.99.$83.99Current price is: $83.99.
In Stock

This Part Fixes These Problems

Refrigerator Not Cooling

Fan motor failure stops cold air from circulating into the fresh-food section, causing temperatures to rise while the freezer may still feel cold.

Freezer Not Cooling

A seized or dead evaporator fan motor prevents air from moving over the evaporator coils, leaving the freezer warm and unable to maintain set temperature.

Loud Humming or Squealing Noise

Worn motor bearings produce a loud buzzing, humming, or high-pitched squeal from behind the freezer back wall — noise typically stops when the freezer door is opened.

Frost or Ice Build-Up in Freezer

Inadequate airflow from a failing fan allows moisture to accumulate and freeze on the evaporator coils and freezer back wall, causing excessive frost build-up.

Unusual Noises / Vibration

A damaged or unbalanced motor can produce rattling or vibrating sounds; if the fan blade cannot be spun freely by hand, the motor needs replacement.

Repair Guides

How to Replace DA31-00146E Evaporator Fan Motor on Samsung Refrigerator — Step-by-Step
May 30, 2026
Samsung Refrigerator Too Warm? 5 Causes & Fixes for DA31-00146E Fan Motor Issues
May 28, 2026
Samsung Refrigerator Evaporator Fan Motor Parts — Models & Compatibility
May 24, 2026
How to Extend Your Samsung Evaporator Fan Motor Life — DA31-00146E Maintenance Guide
May 24, 2026

Product Description

Why Choose Our DA31-00146E Evaporator Fan Motor?

🔧
Built to OEM Specifications12V DC, 2770 RPM, 0.29A, 3.48W — engineered to match original Samsung DREP3020LA/HAL motor performance exactly. Motor base 3"L × 2"W with a 2" shaft extension for precise drop-in fitment.
❄️
Restores Proper Cold-Air CirculationLocated in the back of the freezer compartment, this motor draws air over the evaporator coils and circulates cold air throughout both the freezer and fresh-food sections, keeping every shelf at the right temperature.
🔇
Eliminates Loud Freezer NoiseA failing evaporator fan motor is one of the most common causes of loud humming or squealing from the freezer area. Swapping in a fresh motor immediately silences the noise and restores quiet operation.
⚡
Energy-Efficient BLDC DesignBrushless DC motor technology runs at only 3.48 W, reducing energy draw while delivering consistent airflow — the same low-power BLDC architecture used in the original Samsung assembly.
🔁
Wide Cross-Reference CompatibilityDirect replacement for AP4136569, DA31-00146G, 1486536, DREP3020LA/HAL, and PS4138376. Fits dozens of Samsung and Maytag side-by-side and French door refrigerator models.
🛠️
DIY-Friendly InstallationAccess the motor by removing the freezer back panel, unplug the wire harness, slide out the old motor, and slide in the new one. Most homeowners complete the repair in 30–45 minutes with basic hand tools — no special equipment needed.

💡 Pro Tip: How to Confirm Your Evaporator Fan Motor Has Failed

Your part is likely the culprit if you notice any of the following:

⚠️ Loud humming, buzzing, or high-pitched squealing coming from the freezer area — noise stops when the freezer door is opened

⚠️ Refrigerator section warming up while the freezer still feels cold (or vice versa)

⚠️ Excessive frost or ice build-up on the back wall of the freezer compartment

⚠️ Fan blade does not spin freely when turned by hand, or motor shows no continuity on a multimeter test

🔍 Diagnostic tip: Try turning the fan blade by hand — if it does not spin freely, replace the motor. If the blade spins freely but the motor still won't run, use a multimeter to test the motor windings for continuity. No continuity = confirmed bad motor. Also verify the main control board is delivering voltage to the fan connector before condemning the motor.

📦 What's in the Box

✅ 1× Evaporator Fan Motor DA31-00146E (12V DC, 2770 RPM, BLDC) — fan blade NOT included

Questions & Answers

Does this motor come with the fan blade?
Answered by Support Team  ·  Mar 15, 2024
No — the DA31-00146E motor does not include the fan blade. You can reuse your existing blade by pulling it off the old motor shaft with needle-nose pliers and pressing it onto the new motor shaft. If the blade is cracked or damaged, order part number DA31-00242A separately.
My refrigerator section is warm but the freezer is fine — is DA31-00146E the right part to fix this?
Answered by Support Team  ·  Nov 20, 2023
Yes, this is a very common symptom of a failed evaporator fan motor. The freezer evaporator fan circulates cold air into both compartments. When it fails, the fridge section warms up while the freezer may remain cold for a while. Replacing the DA31-00146E motor typically resolves this issue. Also check that the evaporator coils are not completely frosted over — if so, run a manual defrost cycle first.
Can I use DA31-00146E instead of DA31-00146J?
Answered by Support Team  ·  Jan 8, 2025
No — these are not interchangeable. The DA31-00146J runs at 1920 RPM while the DA31-00146E runs at 2770 RPM. Using the wrong motor speed can cause improper cooling or control board errors. Always confirm which motor your specific model requires before ordering.
How do I test the evaporator fan motor before replacing it?
Answered by Support Team  ·  Jul 22, 2024
First, try spinning the fan blade by hand — if it does not turn freely, the motor bearings have seized and it needs replacement. If the blade spins freely, use a multimeter to check the motor windings for continuity. No continuity confirms a failed motor. Also verify that the main control board is outputting voltage to the motor connector — if there is no voltage at the board, the board may be the actual fault rather than the motor.
My new DA31-00146E seems to be spinning in the wrong direction and ice is building up on the evap coil. What's wrong?
Answered by Support Team  ·  Feb 10, 2026
Rotation direction is controlled by the motor wiring and the main control board signal. First confirm the wire harness connector is fully seated and oriented correctly — reversing the connector can reverse rotation. Also verify that your refrigerator model is listed as compatible with DA31-00146E; some international model variants require a different motor. If the connector orientation is correct and the model is confirmed compatible, test the defrost heater and defrost thermostat as a separate ice-build-up cause.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.




    Customer Reviews

    Reviews

    There are no reviews yet.

    Be the first to review "DA31-00146E" Cancel reply

    Your email address will not be published. Required fields are marked *

    Related Parts

    W10189703 Refrigerator Evaporator Fan Motor Compatible with Whirlpool Maytag KitchenAid Kenmore, Replaces WPW10189703 AP6016598 W10208121 2219647
    W10189703
    W10189703 Refrigerator Evaporator Fan Motor Compatible with Whirlpool Maytag KitchenAid Kenmore, Replaces WPW10189703 AP6016598 W10208121 2219647
    $49.99 Original price was: $49.99.$33.99Current price is: $33.99.
    WR51X443 Defrost Heater with Thermostat Compatible with GE Hotpoint Kenmore RCA, Replaces AP2071465 PS303934 WR51X461 WR51X372
    WR51X443
    WR51X443 Defrost Heater with Thermostat Compatible with GE Hotpoint Kenmore RCA, Replaces AP2071465 PS303934 WR51X461 WR51X372
    $116.99 Original price was: $116.99.$70.99Current price is: $70.99.
    240534701 Refrigerator Door Shelf Retainer Bar Compatible with Frigidaire Kenmore, Replaces AP3214631 PS734936 948952 EAP734936
    240534701
    240534701 Refrigerator Door Shelf Retainer Bar Compatible with Frigidaire Kenmore, Replaces AP3214631 PS734936 948952 EAP734936
    $32.99 Original price was: $32.99.$23.99Current price is: $23.99.
    240337103 Refrigerator Crisper Drawer Compatible with Frigidaire Kenmore Crosley Gibson White Westinghouse, Replaces AP2115849 PS429854 240337102 240337105 891037
    240337103
    240337103 Refrigerator Crisper Drawer Compatible with Frigidaire Kenmore Crosley Gibson White Westinghouse, Replaces AP2115849 PS429854 240337102 240337105 891037
    $70.99 Original price was: $70.99.$47.99Current price is: $47.99.

    Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
