Home/Refrigerator Parts/Condenser Fan Motor/833697

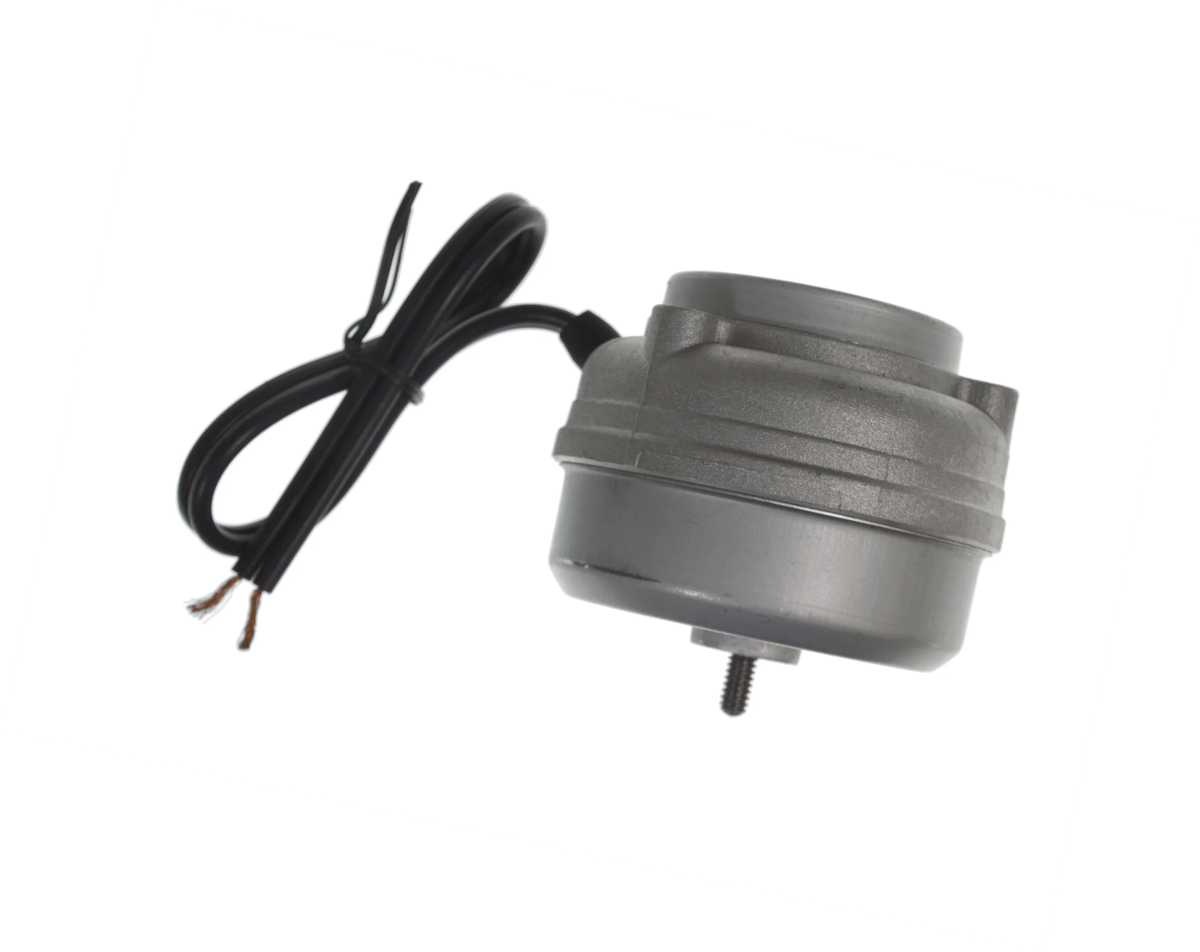

833697 Refrigerator Condenser Fan Motor Kit Compatible with Whirlpool Maytag KitchenAid Kenmore Amana, Replaces AP3120994 PS395284 10884507 833697VP
  • 833697_1
  • 833697_2
  • 833697_3
  • 833697_4
  • 833697_5
  • 833697_6
  • 833697_7
  • 833697_8
  • 833697_9
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 50 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

833697 Refrigerator Condenser Fan Motor Kit Compatible with Whirlpool Maytag KitchenAid Kenmore Amana, Replaces AP3120994 PS395284 10884507 833697VP

SKU: 833697
Order within --:-- to ship today
Repair Time20-45 Minutes
DifficultyEasy
DIY FriendlyYes
Tools Needed
Phillips ScrewdriverFlat-Head ScrewdriverMultimeterNeedle-Nose PliersWire Nuts (if splicing required)
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
833697 Refrigerator Condenser Fan Motor Kit Compatible with Whirlpool Maytag KitchenAid Kenmore Amana, Replaces AP3120994 PS395284 10884507 833697VP
In Stock

This Part Fixes These Problems

Refrigerator Not Cooling

Fridge or freezer temperature rises and food spoils; failed motor stops airflow over condenser coils causing compressor overload.

Compressor Runs Constantly

Refrigerator never reaches set temperature and compressor runs non-stop because condenser heat cannot be dissipated without the fan.

Loud Grinding or Squealing Noise

Worn ball bearings in the condenser fan motor produce grinding, squealing, or rattling sounds from the lower rear of the refrigerator.

Fan Not Spinning

Condenser fan blade is stationary even with the compressor running; motor winding or bearing failure prevents rotation.

Refrigerator Running Hot on Exterior Sides

Side walls or lower rear of cabinet become unusually hot due to condenser heat buildup from inadequate fan-driven airflow.

Repair Guides

Whirlpool Refrigerator Condenser Fan Motor Parts — Models & Compatibility
May 30, 2026
How to Extend Your Whirlpool Condenser Fan Motor Life — Maintenance Guide
May 26, 2026
How to Replace 833697 Condenser Fan Motor Kit on Whirlpool Refrigerator — Step-by-Step
May 23, 2026

Product Description

Why Choose Our 833697 Condenser Fan Motor Kit?

🔧
Built to OEM Specifications 115V AC, 60 Hz, 2 watts, clockwise rotation — exactly matching the original Whirlpool factory spec for a drop-in fit with no modification.
❄️
Restores Full Cooling Performance Draws air through condenser coils and over the compressor, cooling hot refrigerant before it reaches the evaporator so your fridge stays at the correct temperature.
🏷️
Wide Cross-Brand Compatibility Fits Whirlpool, Maytag, KitchenAid, Kenmore, Amana, Jenn-Air, Admiral, Roper, Magic Chef, Crosley, Estate, Norge, Caloric, Inglis, and more — one part number covers 15+ brands.
🔩
Complete Kit — Everything Included Comes with the motor, mounting screws, blade nut, and cushion pad so you have everything needed for a complete installation without a separate hardware run.
💰
Fraction of the OEM Price Save significantly versus buying an OEM-branded motor while receiving an identically performing part built to the same electrical and mechanical tolerances.
⚡
DIY-Friendly Installation Located at the rear lower panel of the refrigerator. Most homeowners complete the swap in 20–45 minutes with basic hand tools — no soldering required on most models.

💡 Pro Tip: How to Tell If Your Condenser Fan Motor Has Failed

Your part is likely the culprit if you notice any of the following:

⚠️ Refrigerator or freezer section is warmer than normal and food is spoiling faster

⚠️ Compressor runs continuously or for abnormally long cycles without reaching set temperature

⚠️ Loud grinding, squealing, or rattling noise from the back lower section of the refrigerator

⚠️ Fan blade is not spinning even though the compressor is running and power is confirmed

🔍 Diagnostic tip: Unplug the fridge, reach behind the lower rear access panel, and try spinning the fan blade by hand. If it spins with resistance or makes noise, the motor bearings are worn. Then use a multimeter set to continuity mode across the motor terminals — no continuity confirms a failed motor that needs replacement.

📦 What's in the Box

✅ 1× Condenser Fan Motor (115V / 2W / Clockwise / 1200–1550 RPM)

✅ Mounting screws and hardware set

✅ Blade nut and cushion pad

Questions & Answers

What are the exact electrical specs for the 833697 condenser fan motor?
Answered by Support Team  ·  Mar 15, 2024
The 833697 is rated at 115V AC, 60 Hz, 2 watts, with a clockwise rotation. The motor operates between 1200–1550 RPM depending on the production run — the manufacturer has revised the RPM spec over the years, but all versions are direct drop-in replacements for the original.
Does this motor come with the fan blade, or do I need to reuse my old one?
Answered by Support Team  ·  Nov 20, 2023
The kit includes the motor, mounting hardware, blade nut, and cushion pad, but the fan blade itself is not included. You will reuse the fan blade from your original motor. If your existing blade is damaged, order blade part number 833697BLADE separately.
My refrigerator's existing wires don't have a plug connector — do I need to splice wires?
Answered by Support Team  ·  Jan 8, 2025
Yes, on some older models there is no quick-connect plug and you will need to splice the wires using wire nuts (included in the kit). Match the wire colors from the old motor to the new one. This is a straightforward connection that takes only a few minutes.
How do I know if the condenser fan motor is bad before ordering?
Answered by Support Team  ·  Jul 22, 2024
First, check that the fan blade spins freely by hand with no grinding resistance. If it is stiff or noisy, the bearings are worn. Then unplug the fridge and use a multimeter on the motor terminals — if there is no continuity, the motor winding has failed and the motor must be replaced.
Will this 833697 motor fit my Kenmore side-by-side refrigerator?
Answered by Support Team  ·  Feb 10, 2026
Yes — Kenmore refrigerators are manufactured by Whirlpool, and the 833697 is a direct fit for a wide range of Kenmore side-by-side and top-freezer models. Please verify by checking that your existing part number is listed in our 'Replaces' list above, or contact us with your full model number for confirmation.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.
