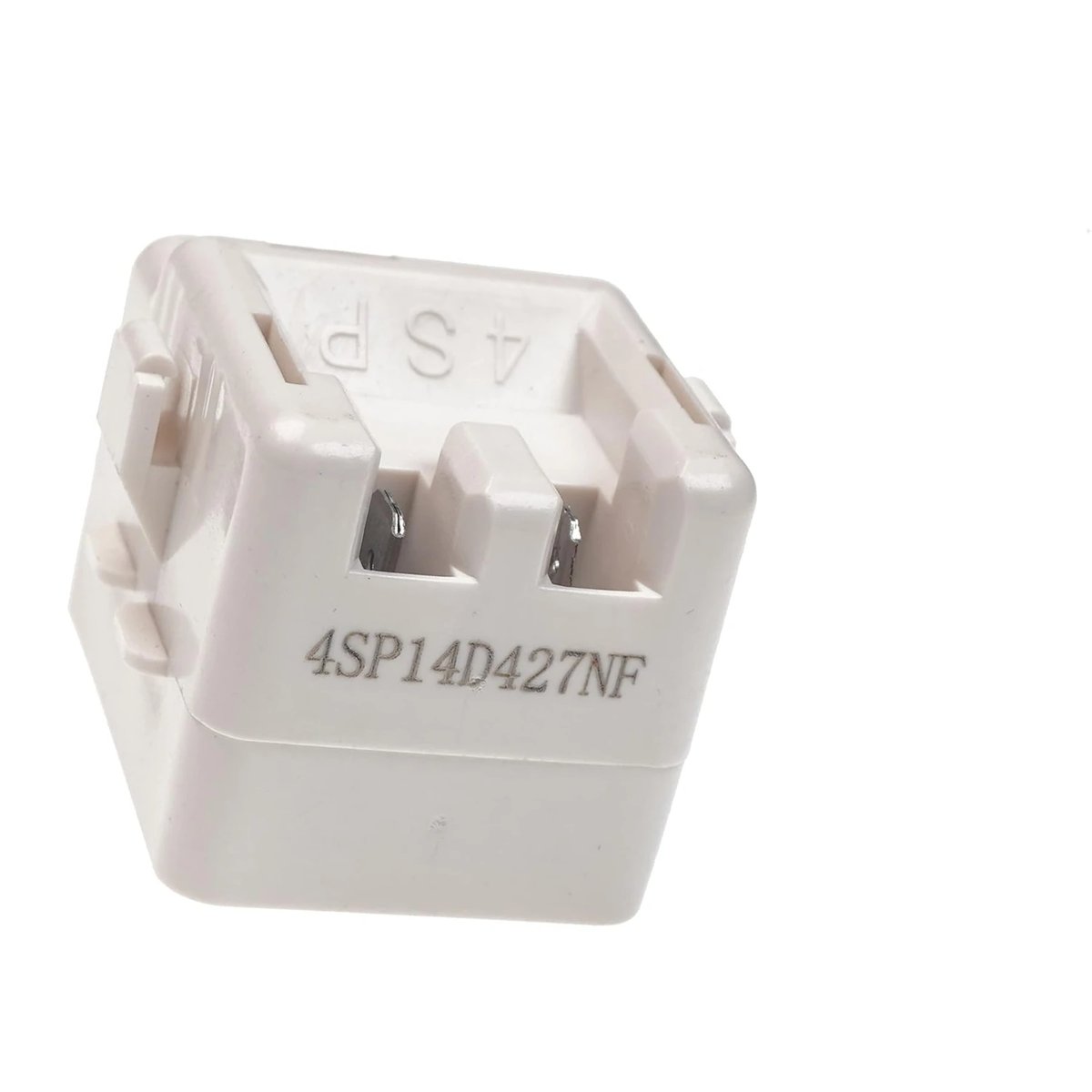

61005518 Refrigerator Compressor Relay and Overload Compatible with Whirlpool Maytag Kenmore, Replaces 12002782 AP4009659 PS2004057 1194680
  • 61005518 01
  • 61005518 02
  • 61005518 03
  • 61005518 04
  • 61005518 05
  • 61005518 06
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 38 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

61005518 Refrigerator Compressor Relay and Overload Compatible with Whirlpool Maytag Kenmore, Replaces 12002782 AP4009659 PS2004057 1194680

SKU: 61005518
Order within --:-- to ship today
Repair Time10-20 Minutes
DifficultyEasy
DIY FriendlyYes
Tools Needed
No tools required
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
61005518 Refrigerator Compressor Relay and Overload Compatible with Whirlpool Maytag Kenmore, Replaces 12002782 AP4009659 PS2004057 1194680
In Stock

This Part Fixes These Problems

Refrigerator Not Cooling

The compressor fails to start because the start relay cannot provide the initial current boost needed. Replacing the relay restores the compressor startup sequence and normal cooling.

Compressor Clicks But Won't Run

A failed relay causes the compressor to attempt a start, click off, and retry every few minutes. A new relay and overload unit eliminates this restart loop.

Fridge Too Warm / Food Spoiling

When the overload protector fails open, the compressor cannot complete a run cycle, resulting in rising cabinet temperature. Replacing this part restores full cooling capacity.

Compressor Overheating / Tripping

A worn overload protector may trip prematurely due to heat fatigue, cutting the compressor off before the refrigerator reaches set temperature. A new overload restores correct thermal trip thresholds.

Repair Guides

Whirlpool, Maytag & Kenmore Refrigerator Compressor Start Relay Parts — Models & Compatibility
May 30, 2026
How to Replace 61005518 Compressor Relay and Overload on Whirlpool Refrigerator — Step-by-Step
May 28, 2026
OEM vs Aftermarket Compressor Start Relay for Whirlpool: What $40 Actually Buys You (ER61005518)
May 27, 2026
OEM vs Aftermarket Compressor Relay for Whirlpool & Maytag: Honest Comparison (61005518)
May 26, 2026
Whirlpool Refrigerator Won't Start — 5 Compressor Relay Failures & Fixes
May 26, 2026

Product Description

Why Choose Our 61005518 Refrigerator Relay & Overload?

🔧
Built to OEM SpecificationsEngineered to match the original Whirlpool 61005518 / 12002782 relay and overload unit — same footprint, same terminal layout, same electrical ratings for a true drop-in fit.
⚡
Dual-Function Start Relay + Overload ProtectionThe integrated start relay briefly energizes the compressor windings at startup, then drops out once the motor reaches running speed. The overload protector guards against both overcurrent and excessive heat, preventing costly compressor burnout.
🏠
Wide Brand CompatibilityFits Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Admiral, Estate, Magic Chef, and Crosley top-mount refrigerators — one part number covers hundreds of models.
🛠️
Tool-Free 10-Minute InstallThe relay and overload assembly simply unplugs from the compressor side terminals and the new unit clips directly on — verified by hundreds of DIYers in under 10 minutes with zero tools required.
✅
Replaces 9+ OEM Part NumbersDirect cross-reference for 12002782, 1194680, AP4009659, PS2004057, AH2004057, EA2004057, ER61005518 — eliminates the guesswork when ordering a replacement.
💪
Durable High-Grade MaterialsConstructed from impact-resistant thermoplastic housing with corrosion-resistant contacts — resists cracking and arcing under the vibration and heat conditions found inside a refrigerator compressor compartment.

💡 Pro Tip: Diagnosing a Bad Compressor Relay & Overload

Your part is likely the culprit if you notice any of the following:

⚠️ Refrigerator is not cooling but the interior light still works

⚠️ You hear a click or brief hum every few minutes but the compressor never starts

⚠️ Shake the old relay — a rattling sound inside confirms an internal failure

⚠️ Freezer is warm and food is spoiling faster than normal

🔍 Quick field test: Unplug the relay from the compressor and shake it near your ear. If you hear loose pieces rattling inside, the relay is confirmed bad and this part will restore normal operation. If the compressor vibrates slightly but won't start, also check the run capacitor (W10662129) as a secondary suspect.

📦 What's in the Box

✅ 1× Compressor Start Relay & Overload Assembly (61005518 / ER61005518)

Questions & Answers

Will this relay fit my Maytag MTB1956GEQ refrigerator?
Answered by Support Team  ·  Mar 15, 2024
Yes. The 61005518 relay and overload is a confirmed fit for the Maytag MTB1956GEQ and many other Maytag top-mount models. Cross-reference part number AP4009659 or PS2004057 to double-check compatibility with your specific serial number.
How do I know if my relay is bad without a multimeter?
Answered by Support Team  ·  Nov 20, 2023
Remove the relay from the compressor and shake it next to your ear. If you hear loose components rattling inside the housing, the internal contacts have failed and the relay must be replaced. A good relay will produce no rattling sound.
Is this the same as part number 12002782?
Answered by Support Team  ·  Jan 8, 2025
Yes. Part number 12002782 is one of the primary OEM cross-references for the 61005518 relay and overload assembly. Our replacement unit is a direct substitute for both numbers and all other listed cross-references including AP4009659, PS2004057, 1194680, AH2004057, EA2004057, and ER61005518.
My compressor hums briefly and then clicks off. Does this part fix that?
Answered by Support Team  ·  Jul 22, 2024
In most cases, yes. A brief hum followed by a click-off cycle every few minutes is the classic symptom of a failed start relay. The relay can no longer boost the compressor windings long enough for the motor to reach running speed, so the overload trips it off. Replacing the 61005518 relay and overload assembly typically resolves this symptom immediately.
Do I need any special tools to install this relay?
Answered by Support Team  ·  Feb 10, 2026
No tools are required. The relay and overload assembly is a plug-on component that clips directly onto the compressor's side terminals. Simply unplug your refrigerator, pull the old relay straight off the compressor, and push the new one firmly into place. Most homeowners complete this repair in under 10 minutes.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.
