Home/Refrigerator Parts/Evaporator Fan Motor/241854301

On Sale

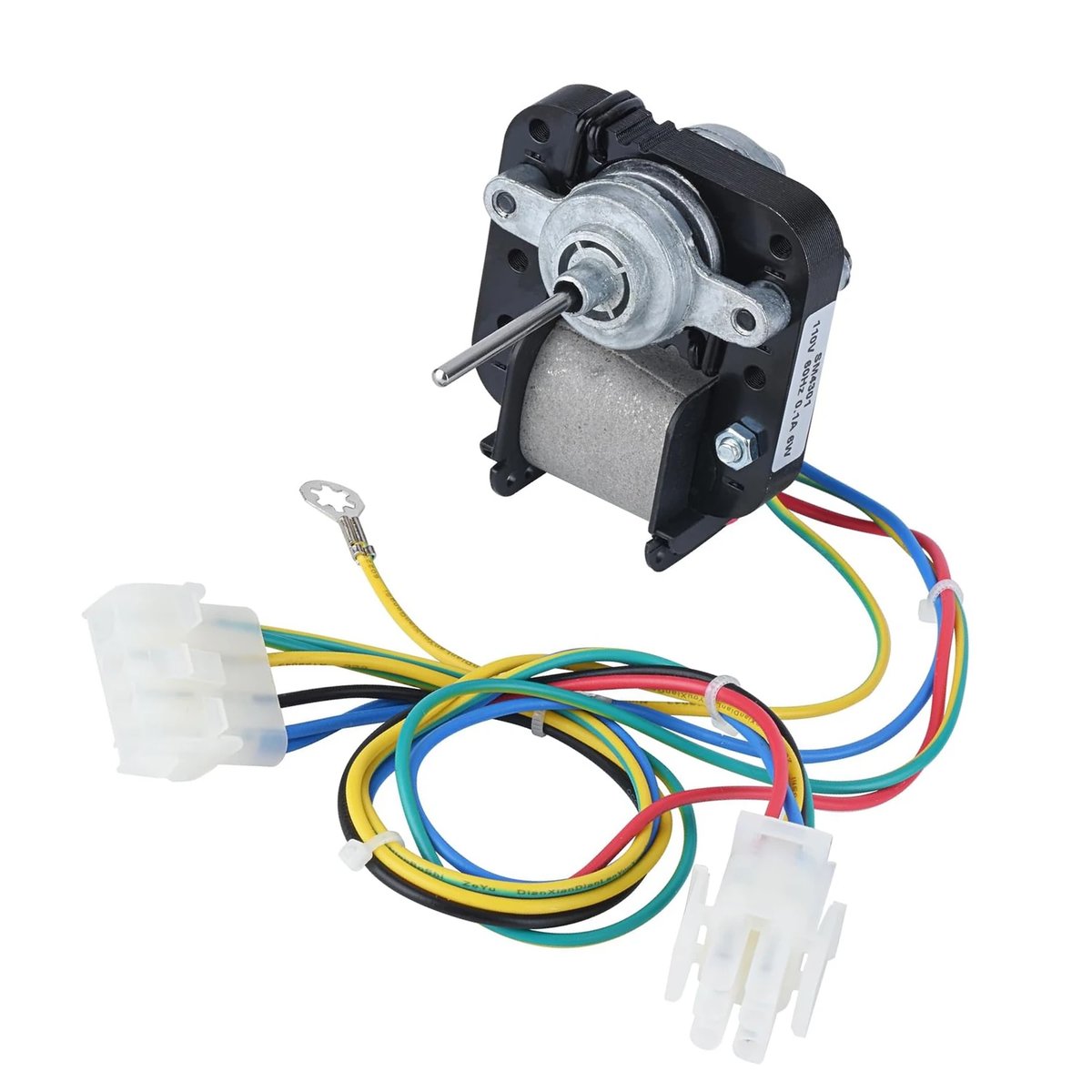

241854301 Evaporator Fan Motor Compatible with Frigidaire Electrolux Kenmore Kelvinator, Replaces AP4343697 PS2331827 1465278 5303918549

Factory Certified

Free Ship $49+

30-Day Returns

1-Year Warranty

Compatible Models

Showing 94 compatible models

Aftermarket Replacement · Factory Direct

OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

241854301 Evaporator Fan Motor Compatible with Frigidaire Electrolux Kenmore Kelvinator, Replaces AP4343697 PS2331827 1465278 5303918549

Name: 241854301 Evaporator Fan Motor
SKU: 241854301
Price: 73.99 USD
Availability: InStock

SKU: 241854301

OEM RetailBranded

$134.40

Via distributor

Source: FrigidaireApplianceParts.com (RepairClinic) · Mar 2025

OEM brand & packaging

Factory direct price

1-year warranty

Our PartBest Value

$73.99

Factory direct

OEM-Compatible

Meets OEM specifications

Factory direct price

1-year warranty

Save by going factory direct

OEM-compatible · no distributor markup

$60.41

45% less than OEM retail

Order within --:-- to ship today

Repair Time20-35 Minutes

DifficultyEasy

DIY FriendlyYes

Tools Needed

Phillips ScrewdriverFlathead ScrewdriverMultimeterNut Driver

Qty

Ships from China · 10–20 business days

No sales tax outside CA

241854301 Evaporator Fan Motor Compatible with Frigidaire Electrolux Kenmore Kelvinator, Replaces AP4343697 PS2331827 1465278 5303918549

In Stock

This Part Fixes These Problems

Refrigerator Not Cooling

Fridge or freezer section is too warm — the fan motor has failed and is no longer circulating cold air from the evaporator coils through the compartments.

Loud Freezer Noise

Grinding, rattling, or squealing noise coming from the freezer area caused by worn motor bearings or ice buildup around the fan blade impeding rotation.

Fan Not Spinning

The evaporator fan blade does not turn or turns slower than normal, resulting in complete loss of air circulation and rapid temperature rise inside the fridge.

Uneven Temperature / Warm Spots

One compartment stays cold while the other warms up — a common symptom when the fan motor partially fails and air circulation becomes insufficient.

Frost Buildup on Evaporator Coils

Excessive ice or frost accumulates on the back panel coils because stagnant air from a failed fan motor allows moisture to freeze unchecked on the evaporator.

Repair Guides

How to Replace 241854301 Evaporator Fan Motor on Frigidaire Refrigerator — Step-by-Step

May 30, 2026

Frigidaire Refrigerator Evaporator Fan Motor Parts — Models & Compatibility

May 28, 2026

Frigidaire Refrigerator Warm But Freezer Cold — 4 Causes & How to Fix

May 23, 2026

How to Extend Your Frigidaire Evaporator Fan Motor Life — Maintenance Guide

May 23, 2026

Product Description

Why Choose Our 241854301 Evaporator Fan Motor?

🔧

Built to OEM SpecificationsEngineered to match OEM part 241854301 exactly — 120V, 60Hz, 6W, 0.1A with 1-3/4" shaft and quick-disconnect terminal. Drop-in fit, no modifications needed.

❄️

Restores Cold Air CirculationDraws air over the evaporator coils and pushes cold air into both the freezer and fresh food compartments, maintaining consistent temperatures throughout your refrigerator.

🔌

Wiring Harness IncludedComes complete with attached wiring harness and quick-disconnect plugs for direct replacement — no wire splicing required. Also includes plastic wire retainer clips and terminal connectors.

🏷️

Wide Multi-Brand CompatibilityCompatible with refrigerators sold under Frigidaire, Electrolux, Kenmore, Kelvinator, Gibson, Tappan, White Westinghouse, and Crosley brand names — one part covers dozens of models.

💰

Fraction of OEM PriceOEM sourced for $134.40 at authorized dealers. Our aftermarket replacement delivers identical performance and fit at a significantly lower cost — same fix, smarter spend.

🛠️

DIY-Friendly InstallationLocated behind the freezer back panel. With a basic screwdriver set and 20–35 minutes, most homeowners can complete this repair without a service call. Production reference: FD-F6110A-6020.

💡 Pro Tip: Is Your Evaporator Fan Motor the Problem?

Your part is likely the culprit if you notice any of the following:

⚠️ Refrigerator or freezer compartment not cooling properly or uneven temperature

⚠️ Loud grinding, rattling, or squealing noise coming from the freezer area

⚠️ Fan blade not spinning, or spinning slower than normal

⚠️ Frost or ice buildup on the evaporator coils behind the freezer back panel

🔍 Quick diagnosis: Try spinning the fan blade by hand with the fridge unplugged — if it doesn't turn freely, the motor bearings have seized and replacement is needed. Also test motor winding continuity with a multimeter; no continuity = failed motor.

📦 What's in the Box

✅ 1× Evaporator Fan Motor 241854301 (120V / 60Hz / 6W / 0.1A, 1-3/4" shaft)

✅ Pre-attached wiring harness with quick-disconnect plugs

✅ Plastic wire retainer clips and terminal connectors

Questions & Answers

Will this motor work for my Kenmore refrigerator model 253.68802015?

Answered by Support Team · Mar 15, 2024

Yes — Kenmore model 253.68802015 is on the confirmed compatibility list for part 241854301. Kenmore refrigerators in the 253.6xxxx series are manufactured by Frigidaire/Electrolux, so this motor is a direct fit. Always verify your full model number before ordering.

Does this replacement motor come with the fan blade?

Answered by Support Team · Nov 20, 2023

No, the fan blade is not included and must be transferred from your old motor. The motor ships with the wiring harness pre-attached, along with wire retainer clips and terminal connectors. Simply pull the blade off the old shaft and press it onto the new motor shaft — no tools required for that step.

My refrigerator is making a loud grinding noise from the freezer but still cooling. Do I need this part?

Answered by Support Team · Jan 8, 2025

Likely yes. A grinding or squealing noise from the freezer area is the classic symptom of evaporator fan motor bearing failure. The motor may still spin (hence some cooling) but the bearings are worn and the motor will fail completely soon. We recommend replacing it promptly to avoid a warm fridge and potential food spoilage.

What are the exact electrical specifications of this motor?

Answered by Support Team · Jul 22, 2024

The 241854301 evaporator fan motor is rated at 120 Volts, 60 Hz, 6 Watts, and 0.1 Amps. The shaft length is 1-3/4 inches and it features a quick-disconnect wiring harness. Production reference number is FD-F6110A-6020. These specs match the original Frigidaire OEM motor exactly.

How do I test if the evaporator fan motor is actually bad before ordering?

Answered by Support Team · Feb 10, 2026

There are two quick tests: (1) Unplug the fridge, access the freezer back panel, and try spinning the fan blade by hand — if it doesn't rotate freely, the bearings are seized and you need a new motor. (2) Use a multimeter set to continuity/resistance mode and probe the motor winding terminals — if there is no continuity, the motor windings have failed. If the blade spins freely but the motor won't run when powered, test for 120V reaching the motor connector.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review "241854301"

Related Parts

W10225581

W10225581 Bimetal Defrost Thermostat Compatible with Whirlpool Kenmore KitchenAid Maytag, Replaces WPW10225581 AP6017375 PS11750673 2188824 2321799

240337103

240337103 Refrigerator Crisper Drawer Compatible with Frigidaire Kenmore Crosley Gibson White Westinghouse, Replaces AP2115849 PS429854 240337102 240337105 891037

WR51X10101

WR51X10101 Defrost Heater Kit Compatible with GE Hotpoint Kenmore, Replaces AP4355467 WR51X10053 WR51X10032 WR51X10097

AAP73252202

AAP73252202 Refrigerator Door Bin Compatible with LG Kenmore, Replaces AP5602939 AAP73252201 AAP73252211 PS3637058

Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
