Maintenance

How to Extend Your Samsung Dishwasher Spray Arm Life — Maintenance Guide

6 min read

May 20, 2026

Extends element life 2–3x

Avg element lifespan

5–6 years

With proper care

8–10 years

Most common damage

Clogged spray jets from hard water deposits, cracked mounting tabs from impact damage, worn bearing hub from mineral buildup

Maintenance schedule

After each use

Visual Check

Before closing the door, glance at the middle rack to confirm no tall items are touching or blocking the spray arm's rotation path.

Monthly

Deep Clean and Inspection

Remove spray arm assembly, rinse under hot water, clear all jets with a toothpick, check bearing hub for cracks or excessive play.

Every 3 months

Descaling Treatment

Run empty dishwasher with commercial descaling tablet to dissolve mineral deposits in jets, hub bearing, and internal water channels.

Always disconnect power before removing spray arm. Hot water and steam can cause burns during or immediately after a wash cycle.

After-each-use checklist

All spray jets clear and visible through holes

Hold up to light source — you should see through every hole

Spray arm spins freely by hand with no resistance

Should complete full rotation with light push, no grinding feel

No cracks visible at hub connection or around spray holes

Use flashlight to check stress points where arms meet center hub

Lock ring securing arm is intact and threads smoothly

Replace if cross-threaded or cracked — prevents arm from dislodging

Middle rack dishes coming out completely clean

If not, problem is spray arm coverage or water pressure

No rattling or knocking sounds during wash cycle

Indicates either loose arm or contact with obstructing dish

Signs your element needs replacement

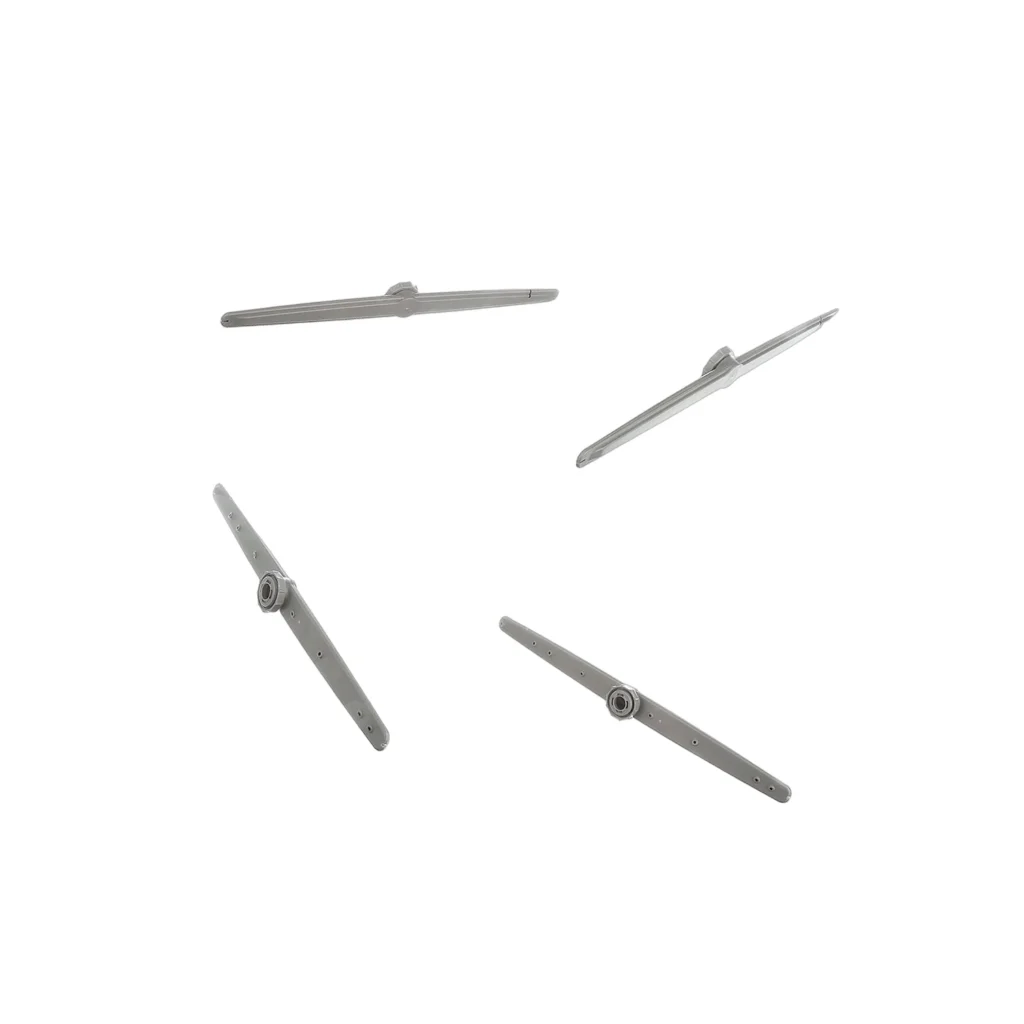

DD82-01064A DD82-01064A Middle Spray Arm Assembly Compatible with Samsung, Replaces AP5800424 PS8764562 3315008

A $112 spray arm replacement isn't something you want to deal with every two years. Yet that's exactly what happens when calcium deposits clog the jets, or a rogue fork jamb snaps off a mounting tab. The DD82-01064A middle spray arm assembly in your Samsung dishwasher is designed to last 8-10 years, but most fail around year 5 because of preventable buildup and damage.

Here's how to keep yours spinning smoothly for the long haul.

How Long Should It Last?

Under normal conditions, Samsung's middle spray arm assembly should give you 8-10 years of service. But "normal" means soft water, regular cleaning, and nothing jamming the rotation. Hard water cuts that lifespan in half. So does loading dishes incorrectly — a single tall pot that blocks the spray arm's rotation can crack the mounting hub in one wash cycle.

The assembly itself has three main failure points: the spray jets (which clog), the bearing hub (which wears), and the mounting tabs (which crack). Address these proactively and you'll hit that 10-year mark.

Signs It's Wearing Out

Your spray arm tells you when it's struggling. You just need to know what to look for.

Dishes on the Middle Rack Stay Dirty

When the middle rack consistently has food residue after a full cycle, your spray arm isn't distributing water properly. This usually means clogged jets on one side of the arm. Pull the arm out and hold it up to a light — you should see clear holes through every jet. If even two or three are partially blocked, water pressure drops across the entire arm.

The Arm Doesn't Spin Freely

Open your empty dishwasher mid-cycle and watch the middle spray arm. It should rotate smoothly with consistent speed. If it stutters, stops completely, or only spins in one direction, the bearing hub is either gunked up with detergent residue or starting to crack. Give it a spin by hand when the machine's off — you should feel zero resistance.

Visible Cracks in the Plastic Arms
Check where the spray arm connects to the center hub. That's where stress cracks start, especially if you've been loading tall items that hit the arm during rotation. Even hairline cracks will spread once water pressure gets behind them. Also inspect the spray holes themselves — cracks radiating from the jets mean the plastic is degrading from heat cycles.

When to Replace vs Maintain

Here's the honest breakdown: if you've got clogged jets and calcium buildup, cleaning saves you $112. If the bearing hub has a crack or the arm has split seams, you're buying a new assembly. There's no gluing or patching these — water pressure is too high.

The gray area is worn bearings. If the hub spins but feels slightly loose or makes a grinding sound, you can extend its life with descaling treatments, but you're looking at replacement within 6-12 months anyway. Budget accordingly.

Most importantly: if you're only seeing issues on one section of your middle rack, don't assume the spray arm is the problem. Check the water inlet valve pressure first. A weak valve mimics a failing spray arm but costs half as much to fix.

Frequently Asked Questions

How often should I remove and clean the spray arm?

Every three months minimum, monthly if you have hard water. It takes five minutes — twist the lock ring counterclockwise, lift the arm out, and run it under hot water while poking a toothpick through each jet. Don't use anything metal that might enlarge the holes.

Can I run my dishwasher with a partially clogged spray arm?

You can, but you're wasting water and detergent while baking food onto your dishes. More importantly, when jets are blocked, water pressure increases on the remaining open holes, which accelerates cracking around those spray points. Clean it now or replace it sooner.

Will descaling tablets prevent spray arm clogs?

They help but aren't a complete solution. Monthly descaling treatments (run the dishwasher empty with a descaler tablet) reduce mineral buildup in the jets and bearing hub. But they won't catch the food particles that slip through your filter screen, so you still need to physically remove and rinse the arm quarterly.
