How to Extend Your Kenmore Evaporator Fan Motor Life — 3015924900 Maintenance Guide

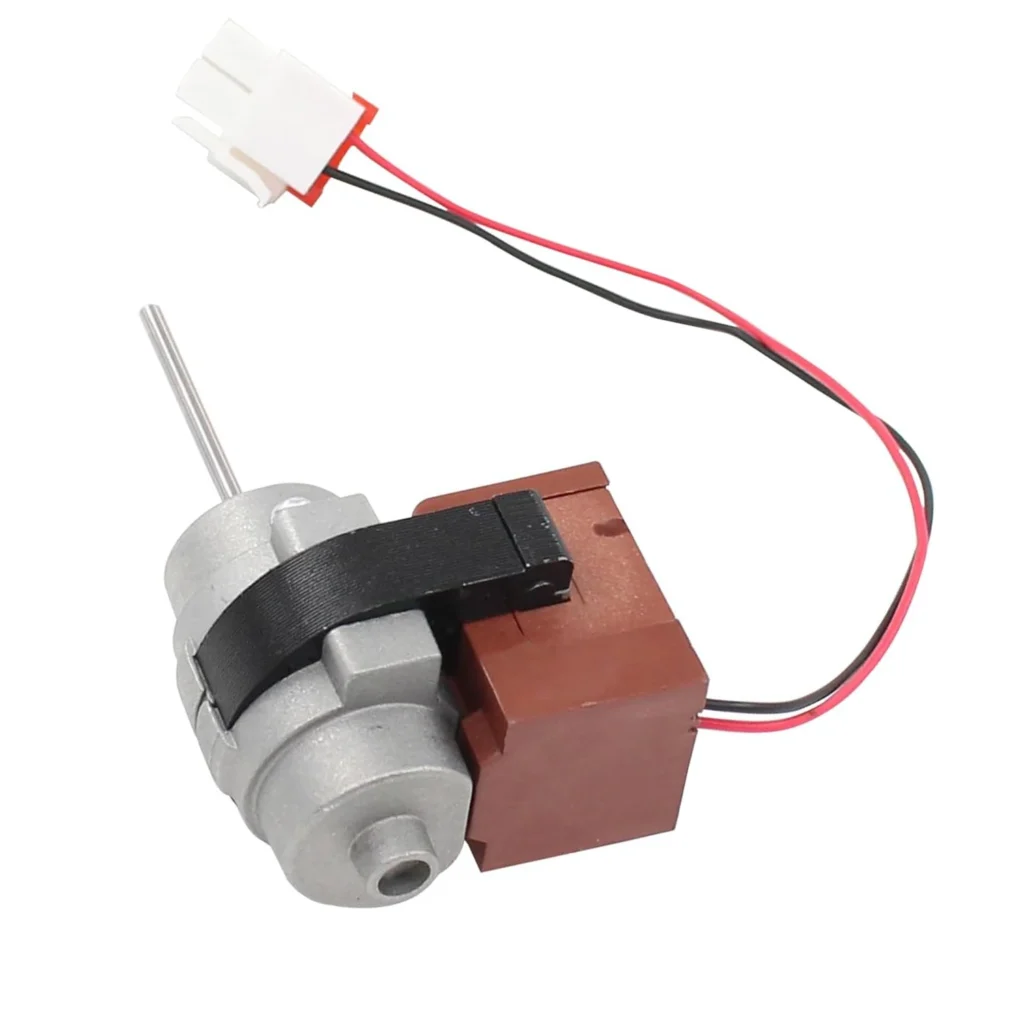

Most evaporator fan motors in Kenmore refrigerators fail between year 5 and 8, but I've seen units running smoothly past 12 years with proper care. The 3015924900 motor runs at 2100 RPM and pulls just 2 watts — but that constant spinning means dust, frost buildup, and bearing wear become your biggest enemies.

How Long Should It Last?

The 3015924900 motor is rated for approximately 50,000 hours of operation under normal conditions. Since your fridge runs 24/7, that translates to roughly 5-7 years of continuous use. But here's what actually affects lifespan:

Temperature cycling matters. Every defrost cycle puts thermal stress on the motor windings. If you're constantly adjusting temperature settings or the door's left open frequently, you're shortening motor life.

Frost accumulation kills motors early. When ice builds up on the fan blades, the motor works harder to maintain 2100 RPM. That extra load wears bearings faster and can overheat the 13V DC windings.

Dust acts like insulation. The evaporator compartment isn't sealed. Kitchen grease, pet hair, and dust get pulled through the fins and coat everything. That layer prevents heat dissipation from the motor housing.

Signs It's Wearing Out

The 3015924900 doesn't just stop working overnight. It'll give you warnings if you're paying attention.

Intermittent Noise That Comes and Goes

You'll hear a grinding or squealing sound for 10-15 seconds, then it stops. The motor's still running, but the bearings are dry. This happens because the lubricant has degraded from years of temperature swings. If you catch it at this stage, you've got maybe 3-6 months before complete failure.

Freezer's Cold But Fridge Section Runs Warm

The evaporator fan circulates cold air from the freezer to the fresh food compartment. When the motor starts failing, it can't push enough airflow. You'll notice the freezer maintains temperature fine, but milk spoils faster and the back wall of the fridge doesn't feel as cold. Check the fan — it might be running slower than 2100 RPM or stopping altogether.

Frost Builds Up Around the Fan Blade

This creates a vicious cycle. A weak motor can't circulate air properly, which causes frost accumulation, which makes the motor work even harder. If you're defrosting your freezer more than twice a year, the fan motor's likely struggling.

Maintenance Schedule That Actually Works

Every 6 months: Unplug the fridge and access the evaporator compartment (usually behind the back panel inside the freezer). Use a soft brush to remove dust from the fan blades and motor housing. Don't use water — moisture causes more problems than it solves.

Annually: Check for frost buildup around the fan assembly. If you see ice accumulation, you've got a defrost system issue that needs addressing before it kills the motor. Also verify the fan blade spins freely by hand with power off — if there's resistance, the bearings are wearing out.

During defrost cycles: Listen for unusual sounds. The motor should be nearly silent at 2W power draw. Any clicking, grinding, or buzzing means something's wrong.

When to Replace vs Maintain

Here's the honest assessment: the 3015924900 isn't designed to be serviced. The motor's sealed, and you can't replace bearings or relubricate windings. Once you hear grinding noises or the motor runs intermittently, it's replacement time. At $41.99, trying to limp along with a failing motor just risks food spoilage that costs way more.

That said, preventive maintenance — keeping dust off and preventing frost buildup — can push lifespan past 10 years. I've replaced motors in Kenmore models 11173027711, 11173022120, and 11173025713 where the owner never once cleaned the evaporator compartment. Those motors barely made it 4 years.

If your fridge is already 8+ years old and the motor's original, budget for replacement in the next 1-2 years even if it seems fine. Having the part on hand beats scrambling when food's warming up.

Frequently Asked Questions

Can I lubricate the 3015924900 motor bearings myself?

No. The motor's sealed and there's no access port for lubrication. Attempting to drill into the housing or remove the end cap will destroy the motor. If bearings are dry and making noise, replacement is the only fix.

How do I know if the motor stopped or if there's an electrical problem?

Access the fan and check for obstructions first. Spin the blade by hand — it should rotate smoothly. Then test for 13V DC at the motor connector with a multimeter. If you've got voltage but no motor action, the motor's failed. No voltage means you're troubleshooting the control board or wiring harness.

Will running the fridge at a warmer temperature extend motor life?

Not really. The motor runs constantly regardless of temperature setting — that's its job. What matters more is stable temperature (fewer compressor cycles) and keeping the evaporator clean. Setting your freezer to 0°F and fridge to 37°F is optimal for both food safety and component longevity.
