How to Replace WR55X36435 Refrigerator Inverter Control Board on GE Café Refrigerators — Step-by-Step

Your GE Café refrigerator just stopped cooling. The lights work, you hear clicking from behind, but the compressor won't run. If you've got models like the CVE28DP2NS1 or CXE22DP3PBD1, there's a good chance your inverter control board (WR55X36435) has failed. This board manages variable-speed compressor operation — when it dies, your fridge becomes an expensive cabinet.

The inverter board sits behind the lower access panel at the back of your refrigerator. It's the brain that tells your compressor how fast to run based on cooling demand. Unlike older single-speed compressors, these variable-speed systems are quieter and more efficient — until the control board shorts out.

What You Need Before Starting

This repair takes about 45-60 minutes and requires moderate skill. You'll be working with electrical connections behind your refrigerator, so attention to detail matters.

• Phillips screwdriver
• 1/4" nut driver or socket set
• Needle-nose pliers
• Digital camera or smartphone (for documenting wire connections)
• Work gloves
• Flashlight or headlamp
• Insulated wire connectors (if originals are damaged)

Difficulty: Moderate | Time Required: 45-60 minutes

Safety First

Unplug your refrigerator completely before starting. Don't just turn off the circuit breaker — physically disconnect it. The inverter board handles high voltage and can store residual charge even when unplugged. Wait 5 minutes after unplugging before touching any wiring. If your fridge is built-in and hard to pull out, locate the junction box and disconnect power there. Never bypass this step.

Step 1: Access the Rear Lower Panel

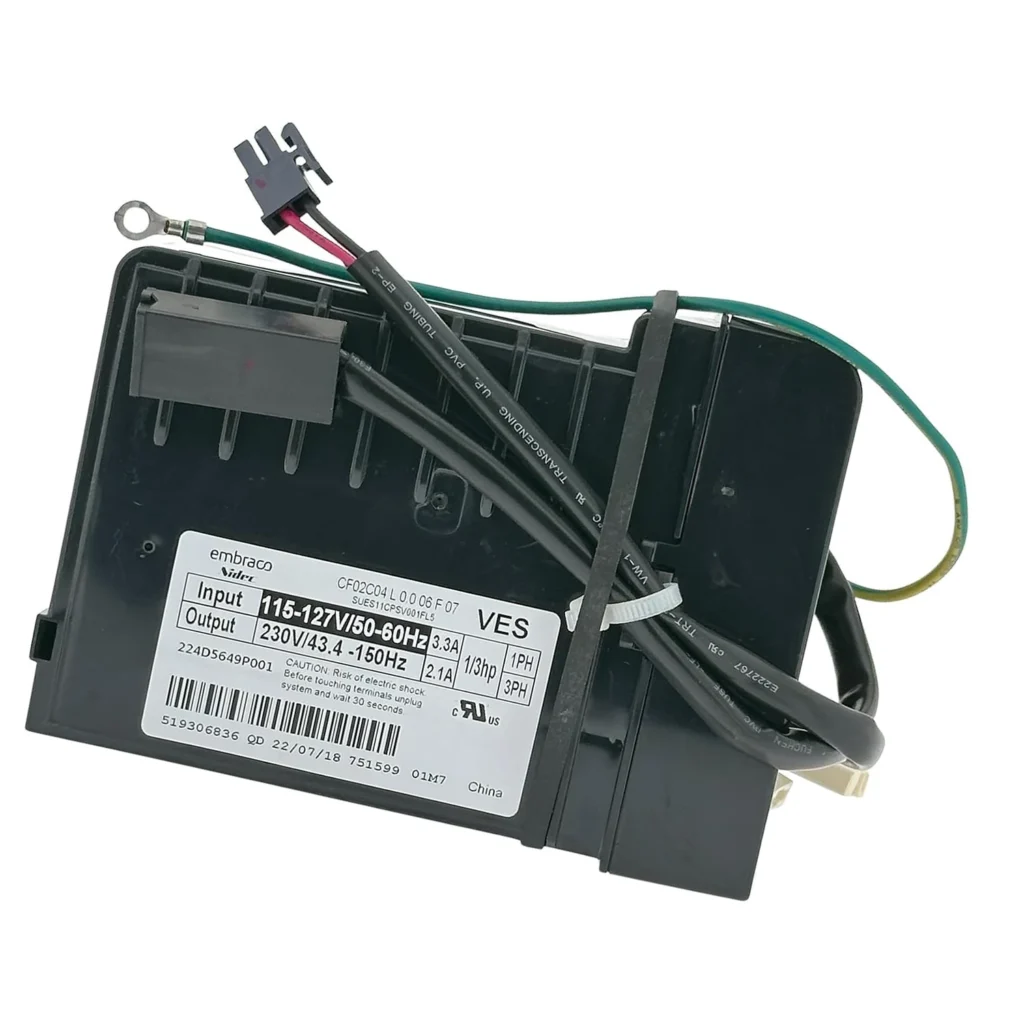

Pull your refrigerator away from the wall — you'll need at least two feet of clearance. The inverter board is behind a metal panel at the bottom rear of the unit. Remove the screws securing this panel (usually 4-6 Phillips head screws). Set the panel aside. You'll see the compressor, condenser fan, and a black rectangular box mounted near the compressor — that's your inverter board.

Step 2: Photograph All Wire Connections

This is critical. Take clear photos of every wire connection from multiple angles. The inverter board on models like the CGE29DP4TBW2 and CVE28DP4NCW2 has roughly 6-8 wire harness connections. They're color-coded, but don't rely on memory. Label each connector with masking tape if you want extra insurance. The main power harness is the thickest connector — it's usually white or gray.

Step 3: Disconnect Wire Harnesses and Remove Failed Board

Press the locking tabs on each connector and pull straight out — don't yank at an angle or you'll damage the pins. Some connectors are tight and require wiggling. Once all wires are disconnected, remove the mounting screws holding the inverter board to its bracket. On most GE Café models, there are two screws securing the board. The board itself will feel warm if it's been recently powered.

Step 4: Install the New WR55X36435 Board

Mount the new board using the same screw holes. Don't overtighten — you're screwing into plastic standoffs. Reconnect each wire harness in the exact order you removed them, referencing your photos. You should hear a distinct click when each connector seats properly. Double-check that no wires are pinched between the board and mounting bracket. Pay special attention to the ground wire — it's usually green and connects to a ring terminal on one of the mounting screws.

Step 5: Reassemble and Test

Reinstall the rear panel, but don't push the refrigerator back yet. Plug it in and listen. You should hear the compressor start within 30 seconds. Modern inverter-driven compressors ramp up gradually — it's not the loud clunk of old-school compressors. Let it run for 5 minutes, then check that the condenser fan is spinning and air is blowing across the coils. If everything sounds normal, push the fridge back into place.

Testing After Installation

Check your freezer temperature after 2 hours — it should be dropping toward 0°F. The fresh food section takes longer, usually 4-6 hours to stabilize around 37°F. If the compressor runs but doesn't cool, you may have a sealed system problem beyond just the board. Listen for the compressor cycling on and off over the next day — variable-speed systems run almost continuously but at different speeds.

Frequently Asked Questions

Will this board work on my older GE Profile refrigerator?

The WR55X36435 is specifically designed for GE Café, Monogram, and select Haier models with variable-speed compressors. It replaces part numbers AP7176581, PS16660026, and 519306836. Check your model number against the compatibility list — this won't work on older models with standard compressors that use relay boards instead of inverter boards.

Why did my inverter board fail in the first place?

Heat and voltage spikes are the main killers. These boards run hot by design — they're managing significant current to drive the compressor. Power surges from lightning or grid fluctuations can fry components. Some failures are just age-related — capacitors and transistors degrade over time. If you've had multiple board failures, consider installing a whole-house surge protector or at least a good quality surge strip for your fridge.

Can I test the old board to confirm it's actually dead?

Not easily. Inverter boards contain complex circuitry that requires specialized equipment to diagnose properly. Visual signs of failure include burnt components, bulging capacitors, or obvious scorch marks on the circuit board. But most failures are internal with no visible damage. If your compressor won't run, the board clicks repeatedly, or you're getting temperature errors on the display, the inverter board is the likely culprit on these models.
