How to Replace WD21X25468 Pressure Sensor Assembly on GE Dishwasher — Step-by-Step

Your GE dishwasher flashes an H2O error code, refuses to fill properly, or stops mid-cycle because it thinks there's a water problem — even though your supply valve is wide open. The pressure sensor assembly (part number WD21X25468) is likely the culprit. This small component monitors water levels during the fill cycle, and when it fails, your dishwasher gets confused about how much water it's actually receiving.

One customer on a GDF645SSN3SS model shared: "Tried to fix with a non GE part, didn't work. Your GE brand pressure sensor worked like a charm." The good news? This repair takes 15-30 minutes and requires basic tools you probably already own.

What You Need Before Starting

Gather these tools before you pull the dishwasher out:

• Nut drivers (typically 1/4" and 5/16")
• Phillips and flathead screwdrivers
• Adjustable wrench or wrench set
• Pliers (needle-nose work best)
• Towel or shallow pan (for residual water)

Repair time: 15-30 minutes | Difficulty: Easy

Safety First

Unplug your dishwasher completely or flip the circuit breaker before starting. Even with power off, turn off the water supply valve under your sink — you'll be disconnecting water connections, and nobody wants a kitchen flood. Expect a small amount of residual water when you remove the old sensor, so keep that towel handy.

Step 1: Pull the Dishwasher Forward

Remove the toe kick panel at the bottom of your dishwasher (usually two screws). Unscrew the mounting brackets that secure the unit to your countertop. Carefully pull the dishwasher forward about two feet — enough to access the bottom panel underneath. You don't need to completely remove it from the cabinet.

Step 2: Access the Pressure Sensor

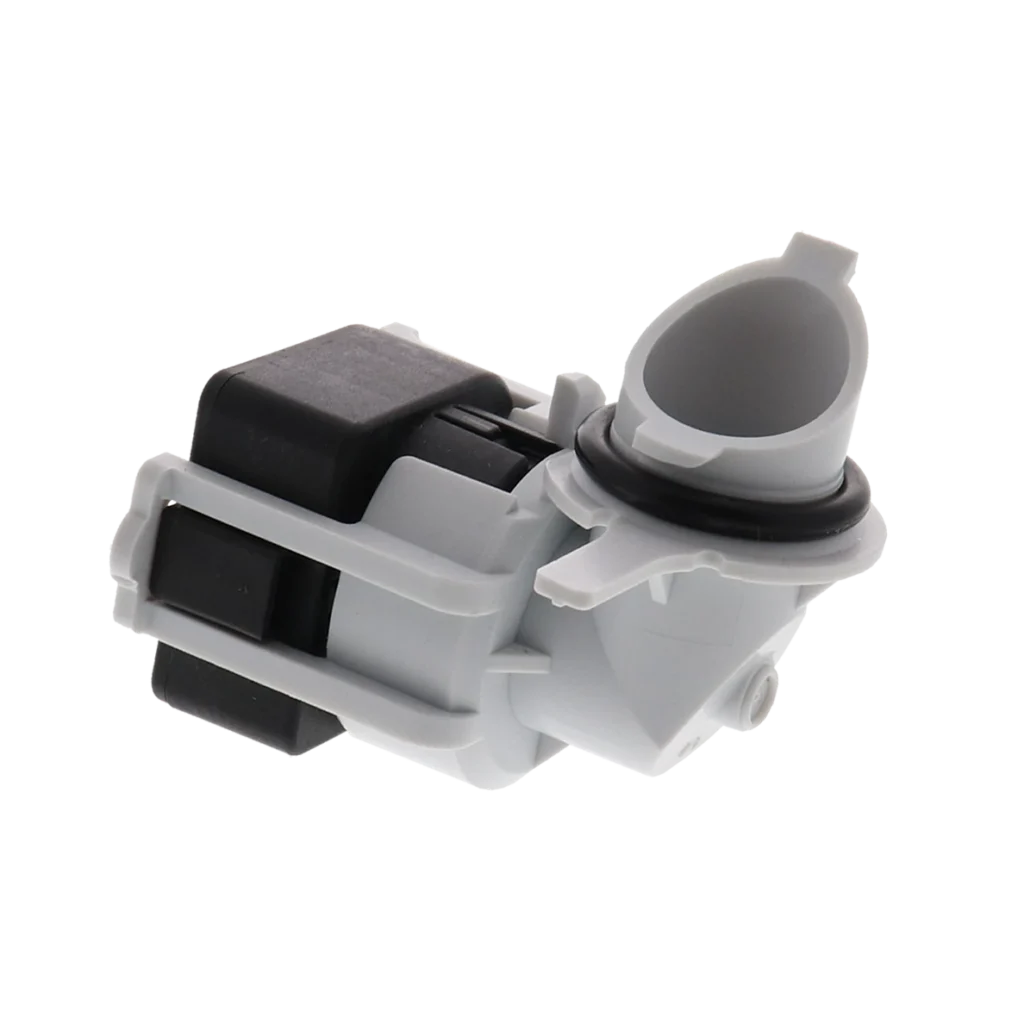

Tilt the dishwasher back slightly or lay it on its back if space allows. Remove the bottom access panel (typically 4-6 screws). The pressure sensor is mounted on the left side near the water inlet valve — it's a small black or gray component about the size of a matchbox with a tube and wire connector attached.

Step 3: Disconnect the Old Sensor (Critical Step)

Here's where most people mess up. As one repair tech warned: "The wires are very delicate and will pull out of the connector very easily! Do not remove the connector by pulling on the wires." Instead, squeeze the connector tab itself with your fingers or needle-nose pliers, then gently wiggle it off the sensor terminals. Never yank the wires.

Next, disconnect the pressure tube (clear or white hose) from the sensor. It may be held with a clip or simply pressed on. Use pliers to release any retaining clip, then twist and pull the tube straight off.

Step 4: Remove Mounting Hardware and Install New Sensor

The sensor is held in place by a single screw or bracket. Remove it with your screwdriver or nut driver. Note the orientation of the old sensor before removing it completely — the new one needs to face the same direction.

Position your new WD21X25468 sensor in the same spot and secure it with the mounting screw. Push the pressure tube firmly onto the new sensor until you feel it seat (you'll hear a small click on some models). Finally, push the wire connector onto the sensor terminals until it locks — again, handle the connector body, not the wires.

Step 5: Reassemble and Test

Reinstall the bottom access panel, slide the dishwasher back into position, and secure the mounting brackets. Replace the toe kick panel. Turn the water supply back on and restore power.

Run a short cycle and watch for proper filling. The dishwasher should fill to the correct level without displaying H2O error codes. As one successful DIYer reported on their GDT530PGP5WW: "Once the dishwasher was out, the entire process was complete in less than 15 minutes."

Testing After Installation

Start a normal wash cycle and listen during the initial fill. You should hear steady water flow for about 60-90 seconds. Check underneath the dishwasher for any leaks around the sensor connections. If the cycle completes without error codes and your dishes come out clean, you're done. The pressure sensor should now accurately monitor water levels through all cycle phases.

Frequently Asked Questions

Will aftermarket pressure sensors work on GE dishwashers?

They might, but reliability varies wildly. One customer tried a generic part first and it failed immediately — the OEM WD21X25468 fixed the issue permanently. Pressure sensors need precise calibration to match GE's control board programming, so using the correct part number matters more here than with mechanical components.

Do I need to recalibrate the sensor after installation?

No. The WD21X25468 is pre-calibrated from the factory. Once installed, the dishwasher's control board automatically communicates with the sensor during the first fill cycle. Just run a normal wash — no special programming or calibration mode required.

What causes pressure sensors to fail?

Hard water deposits, age, and thermal cycling are the main culprits. Over time, minerals can clog the pressure tube or corrode the sensor diaphragm. On models like the GDF645SMN3ES and GDT550PMR6ES, sensors typically last 5-8 years before failure. If your dishwasher is older and the sensor fails again within a year, check your water inlet valve — debris from a failing valve can damage new sensors.
