How to Replace WB16K10026 Double Burner Assembly on GE Gas Range — Step-by-Step

Your GE range's left burner stopped working yesterday, and now the right one is acting weird too. If you've got model JGBS20WEA1WW or similar, chances are your WB16K10026 double burner assembly is shot. This part controls two burners at once — when it fails, you lose half your cooktop.

What You Need Before Starting

This repair takes about 30-45 minutes and requires minimal tools. You're working with gas connections, so don't rush it.

• Phillips head screwdriver
• Flathead screwdriver
• Adjustable wrench or 1/2" wrench
• Flashlight (you'll need to see under the cooktop)
• Towel or soft cloth (to protect your cooktop surface)

Difficulty: Moderate — You're dealing with gas fittings, but they're straightforward.
Time Required: 30-45 minutes

Safety First

Turn off the gas supply valve to your range — it's usually behind the range or in the cabinet below. Don't skip this step. Even with the range off, gas can still be present in the lines. Unplug the range from the wall outlet. Let everything cool completely if you've been cooking. Gas leaks aren't something you want to discover halfway through this repair.

Step 1: Remove Grates and Burner Caps

Lift off the grates and set them aside. Remove the burner caps from both burners on the affected side. These just lift straight up. You'll see the burner heads underneath — remove those too by lifting straight up. Some models have a small screw holding the burner head; check yours before yanking.

Step 2: Lift the Cooktop

Most GE ranges have a cooktop that lifts like a car hood. Look for the front edge of the cooktop near the control panel. Gently lift from the front — it'll prop open with built-in supports. Place your towel on the counter behind the range to protect the surface when you tilt it back. If your model doesn't lift, you'll need to remove screws around the perimeter to take the entire top off.

Step 3: Disconnect the Gas Line

Here's where your wrench comes in. The double burner assembly has one gas inlet line connecting to it. Use your adjustable wrench to loosen the fitting — turn counterclockwise. You'll hear a small hiss of residual gas; that's normal. The line should disconnect completely from the burner assembly. Don't force it — if it's stuck, spray some penetrating oil and wait five minutes.

Step 4: Remove the Old Assembly

The WB16K10026 is held in place by two to four screws (depends on your exact model). Use your Phillips screwdriver to remove them. Keep these screws — you'll reuse them. Disconnect the electrode wires from each burner position. They're held by small clips or screws. Take a photo with your phone before disconnecting so you remember which wire goes where. Lift the old assembly straight up and out.

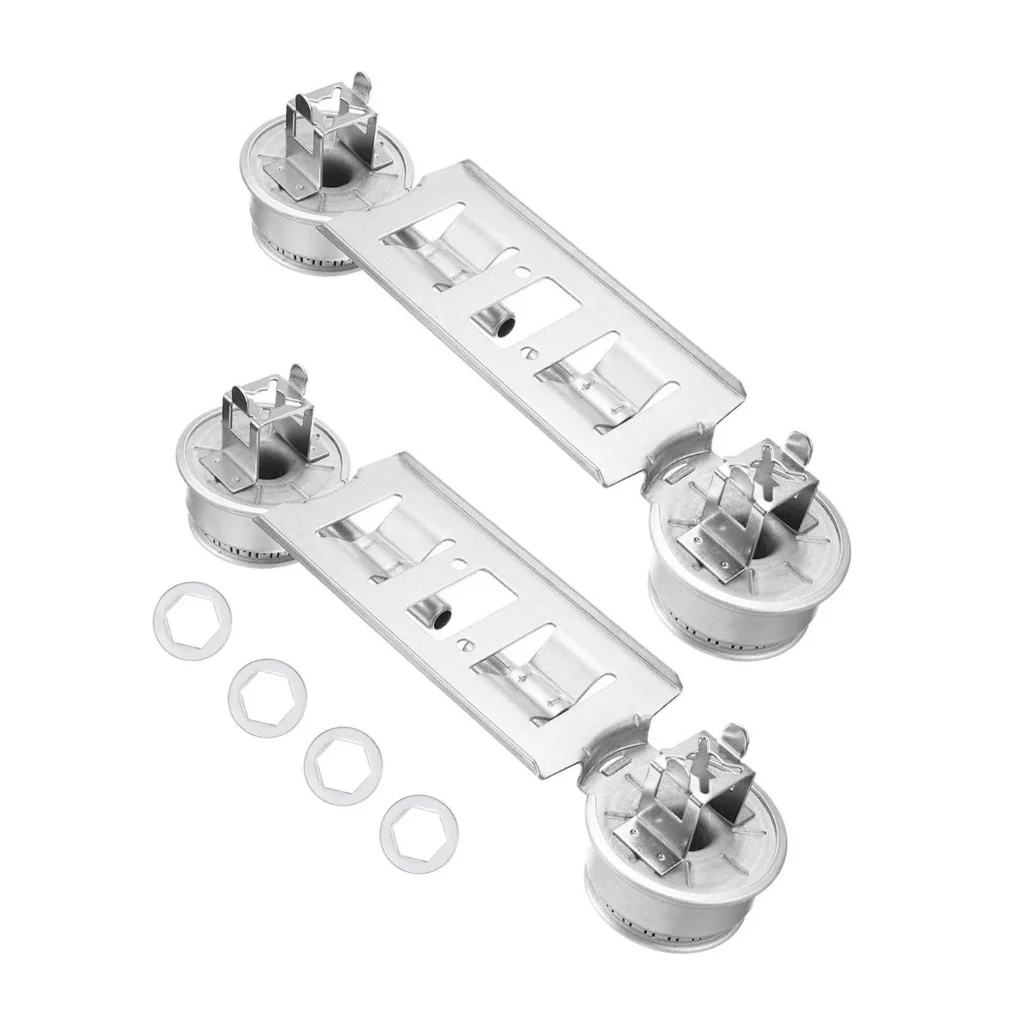

Step 5: Install the New WB16K10026

Set your new double burner assembly in position. The gas inlet should align with the supply line. Reconnect the electrode wires exactly as they were (check that photo). These wires create the spark that ignites the gas — if they're on the wrong burner, things get confusing fast. Secure the assembly with the screws you saved. Tighten them snug but don't strip them out.

Step 6: Reconnect the Gas Line

Thread the gas line back onto the inlet fitting. Hand-tighten first, then use your wrench to snug it up. You want it tight enough that it won't leak, but you're not trying to fuse metal here. A quarter turn past hand-tight is usually perfect. Mix a little dish soap with water and brush it on the connection. Turn the gas back on briefly — if you see bubbles, it's leaking. Tighten more and test again.

Testing After Installation

Lower the cooktop back down. Replace the burner heads, caps, and grates. Turn on the gas supply fully. Plug the range back in. Try igniting both burners. They should light within a few seconds with a nice blue flame. If you get a yellow or orange flame, the burner head might not be seated properly — lift it, rotate slightly, and set it back down. Test each burner at different settings to make sure the flame adjusts correctly.

Frequently Asked Questions

Will WB16K10026 work on Hotpoint and Kenmore gas ranges too?

Yes, this assembly replaces several part numbers including AP2633210, WB29K17, and 868697. It's compatible with many Hotpoint and Kenmore models that use the same burner design as GE. Check the compatible models list for your specific model number before ordering.

Why did both burners fail at once?

Because they share one assembly. The WB16K10026 is a double unit — one piece of metal casting with two burner ports. If there's a crack in the casting or the manifold degrades, both sides can stop working. Sometimes one fails first and the other follows within days or weeks.

Can I test if it's actually the burner assembly before buying the part?

Swap the burner caps and heads with ones from the working side. If the problem moves with the caps, you need caps. If the problem stays on the same side, it's the assembly or the valve. Check for visible cracks in the burner assembly under the cooktop. If you see gas flowing but no ignition, check the electrode wires first — they're cheaper to replace.
