How to Replace W11224591 Evaporator Fan Motor on Whirlpool Refrigerator — Step-by-Step

Your Whirlpool fridge's freezer is rock solid, but the fresh food compartment is sitting at 45°F when it should be 37°F. You've got milk going bad faster than usual and vegetables wilting overnight. The culprit? A failed evaporator fan motor that's stopped circulating cold air from the freezer to the fridge section.

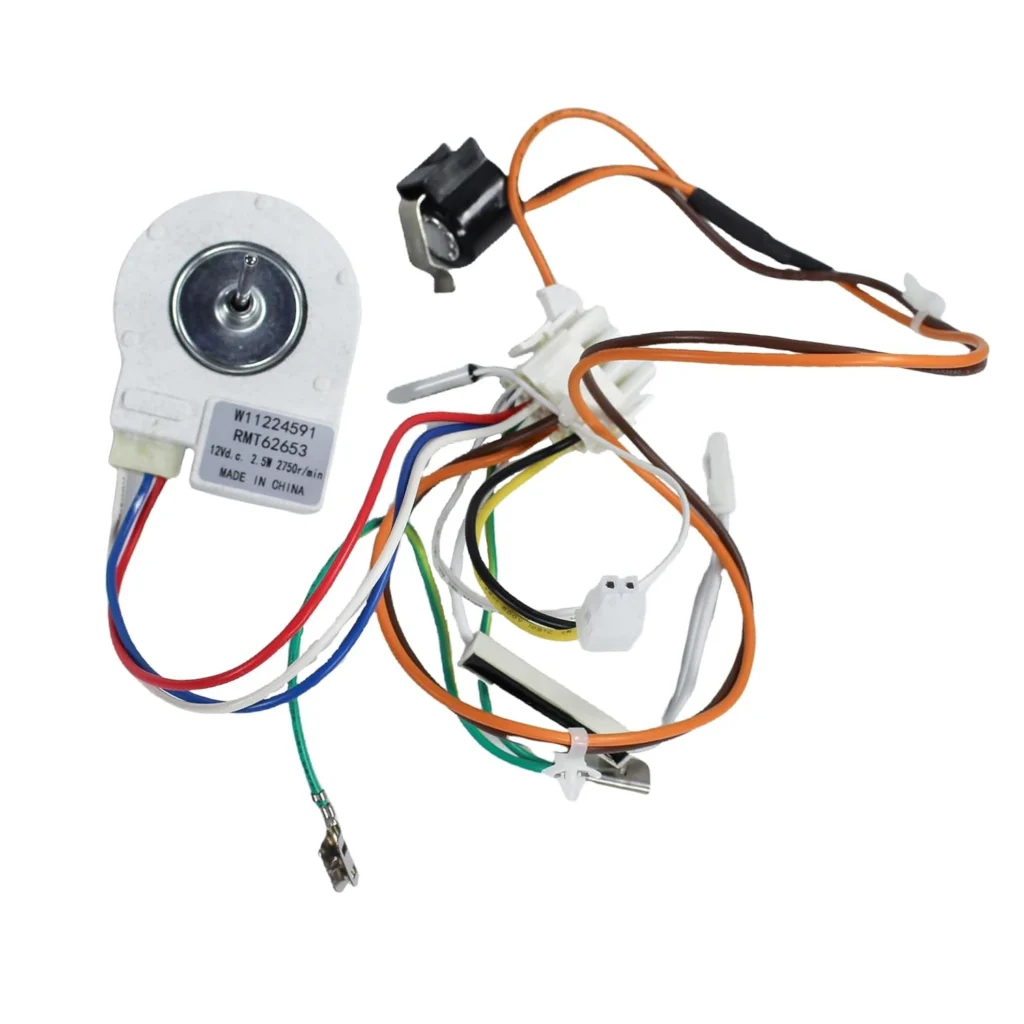

The W11224591 evaporator fan motor is the workhorse behind your refrigerator's cooling system. When it quits, cold air stays trapped in the freezer while your main compartment warms up. This replacement works across dozens of Whirlpool, KitchenAid, Maytag, and IKEA models including the WRF736SDAB14, WRF757SDHZ02, and WRF767SDHV02.

What You Need Before Starting

This repair requires accessing the freezer's rear panel, so you'll want these tools ready:

• ¼-inch nut driver or socket wrench
• Phillips head screwdriver
• Flathead screwdriver (for wire harness clips)
• Towels (to catch any frost or condensation)
• Work gloves (metal edges can be sharp)
• Cooler with ice (for your frozen food)

Estimated repair time: 30-45 minutes

Difficulty level: Intermediate

Safety First

Unplug your refrigerator from the wall outlet before starting this repair. You'll be working near electrical connections and sharp metal panels. The evaporator fan compartment may have frost buildup, which will melt during the repair, so keep towels handy. If your freezer has significant ice buildup, consider letting it defrost for 2-3 hours before starting, or use a hair dryer on low heat to speed things up.

Step 1: Empty the Freezer and Remove Shelving

Transfer your frozen food to a cooler. Pull out all freezer shelves, bins, and the ice bucket if you have an automatic ice maker. You need complete access to the back wall of the freezer compartment. Some models have a top shelf that clips in — lift the front edge and pull forward to release it.

Step 2: Remove the Evaporator Cover Panel

The evaporator fan sits behind a plastic panel on the freezer's back wall. Using your ¼-inch nut driver, remove the screws securing this cover — typically 4-6 screws around the perimeter. On models like the WRF757SDHZ series, there are two screws hidden under small plastic caps at the top corners. Pop these caps off with a flathead screwdriver first. Once the screws are out, carefully pull the panel forward. It may be stuck with ice, so work it gently back and forth.

Step 3: Disconnect and Remove the Old Fan Motor

You'll now see the evaporator coils and the fan motor mounted to a bracket. Locate the wire harness connection — it's usually a white plastic connector clipped to the motor. Press the release tab and pull the connector apart. Next, remove the mounting screws holding the fan motor bracket to the evaporator housing. There are typically three screws forming a triangle pattern. Lift the old motor assembly straight out. If the fan blade is attached, hold it steady while removing the mounting screws so it doesn't spin.

Step 4: Install the New W11224591 Motor

Position your new W11224591 motor assembly in the same orientation as the old one — the fan blade should face the evaporator coils. Thread in the three mounting screws and tighten them evenly in a star pattern to prevent binding. Don't overtighten; these mount to plastic housing. Reconnect the wire harness until you hear a firm click. Give the fan blade a manual spin to confirm it rotates freely without rubbing against anything.

Step 5: Reassemble and Test

Reattach the evaporator cover panel, making sure all clips and screw holes line up properly. Replace all screws and press any plastic caps back into place. Put your freezer shelves and bins back in. Plug the refrigerator back in and listen carefully — you should hear the new fan motor kick on within a few minutes. It might cycle on and off as the compressor runs. Check the fresh food section after 2-3 hours; the temperature should start dropping back to normal range.

Testing After Installation

Let your fridge run for 6-8 hours, then check the temperatures. Your freezer should read 0°F and the fresh food section should be between 35-38°F. Open the freezer door and listen for the fan — it should stop when the door opens (this is normal safety behavior). Close the door and wait 30 seconds; the fan should restart. If the fridge compartment is still too warm after 24 hours, you may have a separate issue with the damper control or temperature sensor.

Frequently Asked Questions

Why did my evaporator fan motor fail?

Most evaporator fan motors fail from bearing wear after years of continuous operation. They run almost constantly, so the bearings eventually dry out and seize. Excessive frost buildup from a faulty defrost system can also overwork the motor. If your new motor fails quickly, check the defrost heater and defrost timer to prevent recurring problems.

Can I replace just the fan blade instead of the whole motor?

If your motor is running but the blade is cracked or broken, yes, you can replace just the blade. However, if the motor itself has failed (not spinning, making grinding noises, or completely silent), you need to replace the entire motor assembly. The W11224591 comes as a complete unit with the blade already attached, making installation straightforward.

Will this motor fit my KitchenAid or Maytag refrigerator?

Yes, the W11224591 is a cross-brand replacement that works with Whirlpool, KitchenAid, Maytag, and IKEA refrigerators. It replaces part numbers W10865431, W10728111, and W11215582. Check your model number against the compatibility list — if your model is listed, this motor will fit. The mounting holes and wire harness connector are standardized across these brands since they're all manufactured by Whirlpool Corporation.
