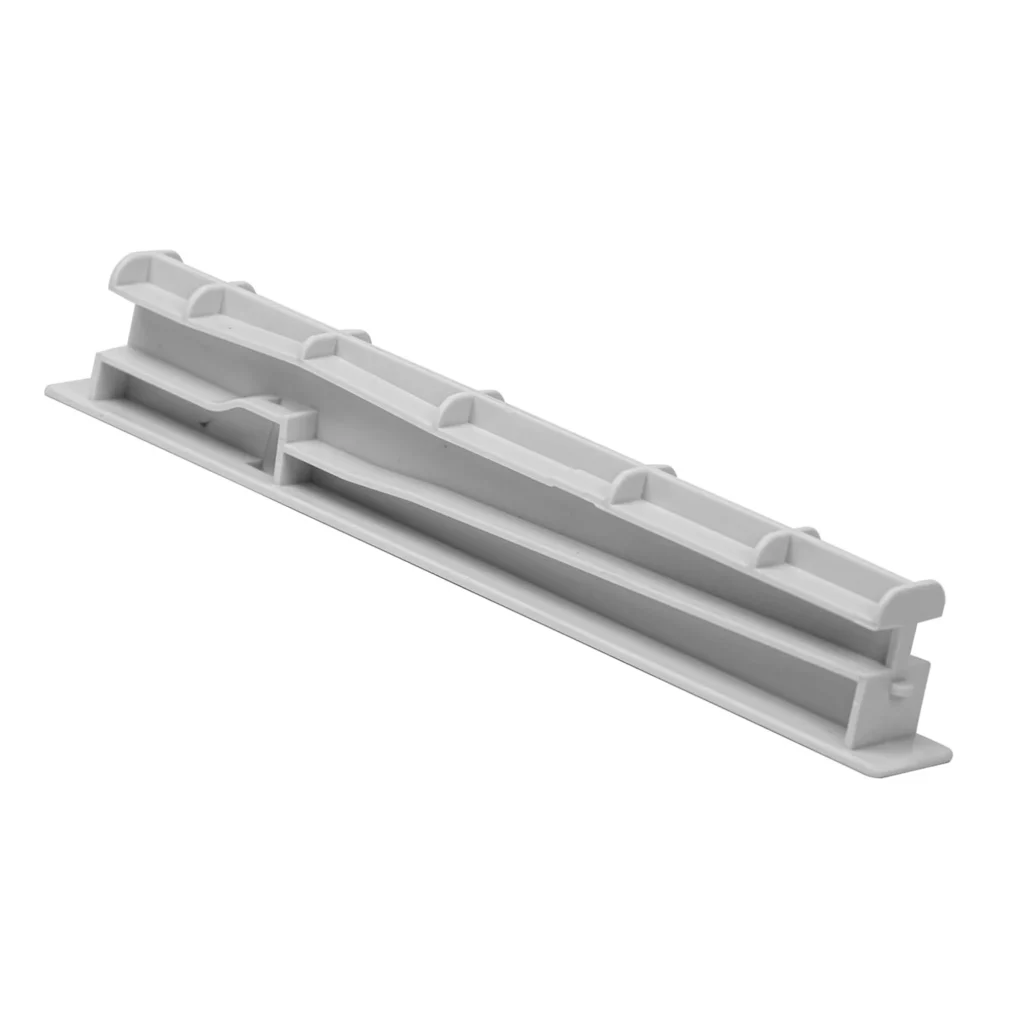

How to Replace W10671238 Refrigerator Center Crisper Drawer Slide Rail on Whirlpool — Step-by-Step

You open your refrigerator, grab the crisper drawer handle, and nothing happens. Or worse — the drawer tilts at an awkward angle, vegetables spilling onto the floor. This is classic slide rail failure, and it's happening right now in thousands of Whirlpool, Maytag, and KitchenAid refrigerators. The W10671238 center crisper drawer slide rail is one of those parts that works perfectly until it doesn't, usually breaking after years of weight stress and temperature cycling.

The good news? This repair doesn't require a service call. If you've got a Phillips screwdriver and ten minutes, you can fix it yourself. This guide walks you through replacing the slide rail on models like the WRF532SMHB00, GX2FHDXVQ03, and dozens of compatible Whirlpool-family refrigerators.

What You Need Before Starting

• Phillips head screwdriver
• Flat-head screwdriver (for releasing clips)
• Towel or soft cloth (to protect drawer surfaces)
• New W10671238 slide rail

Repair Time: 10-15 minutes
Difficulty: Easy

Safety First

You don't need to unplug the refrigerator for this repair, but you will need to remove the crisper drawer completely. Empty the drawer first — those bags of forgotten carrots are heavier than you think. Work carefully around the door bins; bumping them can crack mounting tabs. If your fridge has been making clicking sounds or the drawer has been sticking, check for ice buildup around the slide mechanism before starting.

Step 1: Remove the Crisper Drawer

Pull the crisper drawer straight out until it stops. Lift the front of the drawer slightly while pulling forward — most Whirlpool models use a lift-and-pull release mechanism. If the drawer won't budge, look for small tabs on each side of the drawer near the back. Press these tabs inward while pulling. Set the drawer on a towel to avoid scratching your floor.

Step 2: Locate the Failed Slide Rail

Look inside the refrigerator compartment where the drawer was sitting. You'll see the center slide rail mounted to the back wall of the fridge — it's the track the drawer slides on. On models like the MFI2269VEM8 and WRB322DMHV00, this rail is usually white or clear plastic. If your drawer was tilting or making noise, you'll likely see a crack in the rail or broken mounting tabs.

Step 3: Remove the Old Slide Rail

The slide rail is held in place by two Phillips screws at the top and bottom. Remove both screws completely — they're usually short, so don't lose them in the vegetable debris that's inevitably down there. Once the screws are out, the rail should pull straight forward off the mounting posts. Some models have additional plastic clips at the bottom; gently pry these with a flat-head screwdriver if the rail resists.

Step 4: Install the New W10671238 Rail

Line up your new slide rail with the mounting holes on the refrigerator's back wall. The rail should sit flat against the wall with the track facing outward. Insert the top screw first and tighten it about halfway — this holds the rail in position while you insert the bottom screw. Once both screws are started, tighten them fully. Don't overtighten; plastic mounting points can crack if you muscle them too hard.

Step 5: Reinstall and Test the Drawer

Align the drawer's slide channels with the new rail. Push the drawer in slowly — you should feel it glide smoothly without binding. If the drawer tilts or doesn't sit level, remove it and check that the rail is seated properly on both mounting posts. Test the drawer several times, pulling it all the way out and pushing it back in. It should move smoothly without clicking, scraping, or requiring excessive force.

Testing After Installation

Load a few items back into the crisper drawer to test it under realistic conditions. Pull the drawer out fully and listen for any unusual sounds. The drawer should glide smoothly even when loaded with vegetables. If you hear clicking or the drawer binds halfway out, double-check that the rail screws are tight and the drawer is properly seated on the track. Check that the refrigerator door still closes fully — a misaligned drawer can prevent proper door closure, which leads to temperature problems and ice buildup.

Frequently Asked Questions

Will this rail fit my Kenmore refrigerator?

Yes, if your Kenmore model uses Whirlpool parts. The W10671238 replaces part numbers WPW10671238, AP6023702, 67001057, 8208354, and 12530701. Check your model number against the compatibility list — many Kenmore Elite models in the 795 series use this exact rail.

Why did my original slide rail break?

Constant weight stress and temperature changes weaken the plastic over time. If you frequently overload the crisper drawer or slam it shut, the mounting points crack first. The clicking sound many people report happens when a partial crack lets the rail flex during drawer movement. Once cracked, complete failure usually follows within weeks.

Can I just glue the broken rail instead of replacing it?

Don't bother. The rail bears significant weight and slides constantly under friction. Even strong plastic epoxy won't hold up to daily use. You'll spend more time on a failed repair attempt than just replacing the rail properly. At $33.99, the W10671238 is cheaper than the vegetables you'll lose when the drawer collapses again.
