How to Replace SWD-225 Washer Dryer Lid Door Switch on Whirlpool Maytag Kenmore — Step-by-Step

Your Whirlpool WTW4816FW2 won't start even though you've closed the lid three times and pressed the button again. The display lights up, you hear a click, but nothing happens. Nine times out of ten, you're dealing with a failed lid switch — the small safety mechanism that tells your washer it's safe to spin.

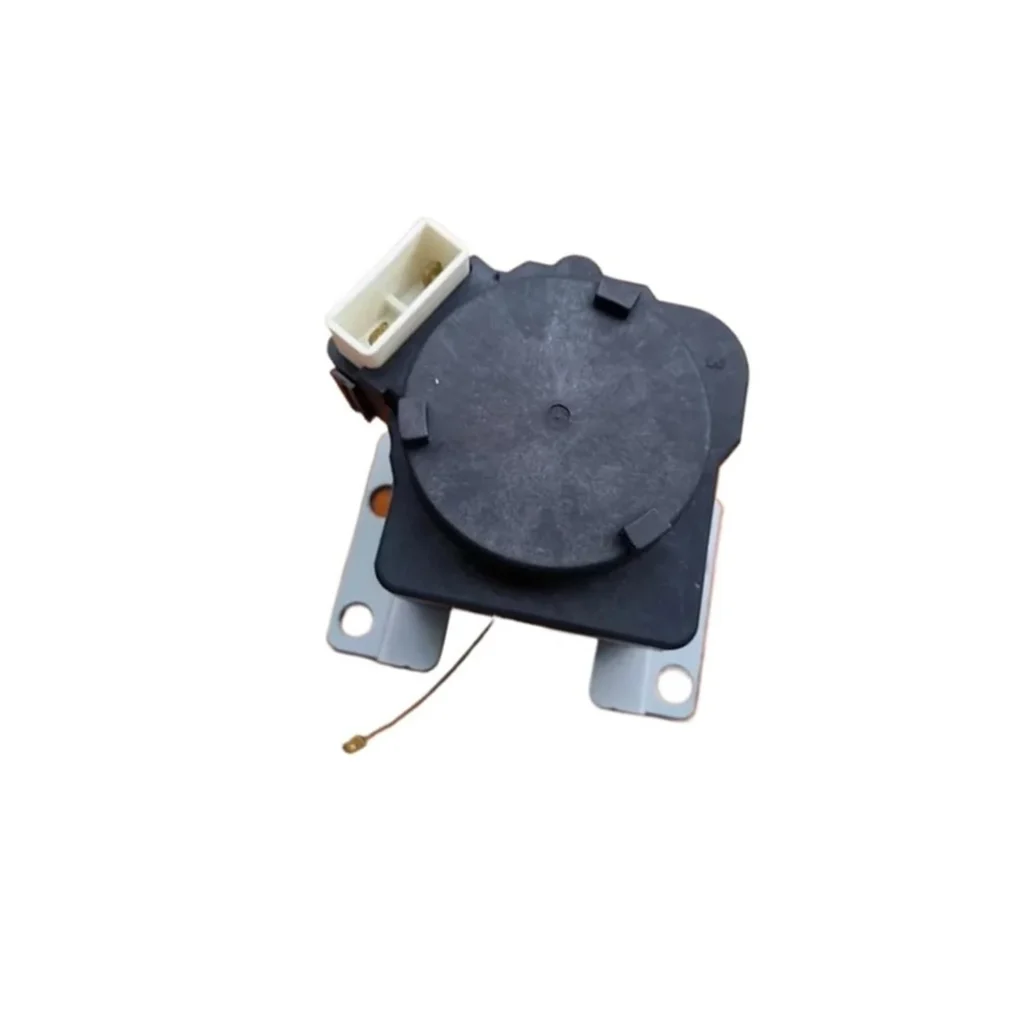

The SWD-225 lid switch (replaces W10820036, 279347, 3392266) is one of the most common failure points in top-load washers. It's a simple on-off switch that completes the circuit when the lid closes. When it fails, your washer acts like the lid is permanently open — even when it's not.

What You Need Before Starting

This is a straightforward repair that most homeowners can handle in about 20-30 minutes. Here's what you'll need:

• 1/4-inch nut driver or socket wrench
• Flathead screwdriver
• Putty knife (for cabinet clips)
• Flashlight or headlamp
• Work gloves (metal edges can be sharp)

Estimated Time: 20-30 minutes
Difficulty: Easy

Safety First

Unplug the washer completely before starting. Even though you're working with a low-voltage switch, you'll be removing panels and working near electrical connections. If your washer is hard-wired, flip the breaker. Move the washer away from the wall so you can access the rear panel — you'll need about two feet of clearance.

Step 1: Access the Control Panel

Most top-load washers hide the lid switch behind the control panel. Remove the screws holding the panel (usually two or three along the top rear edge). On Whirlpool models like the WTW5000DW3, these are typically 1/4-inch hex screws. Tilt the control panel back and prop it up — don't disconnect the wires yet, you just need access underneath.

Step 2: Locate and Disconnect the Old Switch

The lid switch sits right behind where the lid latch engages — usually on the right side of the cabinet opening. You'll see a small rectangular component with a wire harness plugged into it. Press the locking tab on the wire connector and pull it straight off. On some Maytag models like the MEDC400VW0 dryer, there may be two switches (door and secondary) — make sure you're replacing the correct one.

Step 3: Remove the Mounting Hardware

The switch is typically held in place with one or two screws or a simple metal bracket. Remove these fasteners and slide the old switch out of its mounting slot. Note how it's oriented — the actuator (the small plastic piece that gets pressed) should point toward where the lid closes. Take a quick photo with your phone if you're unsure.

Step 4: Install the SWD-225 Replacement

Slide the new SWD-225 into the mounting position with the actuator facing the correct direction. Secure it with the original mounting hardware. Connect the wire harness — you'll hear a distinct click when it's fully seated. Give it a gentle tug to confirm it's locked. Before closing everything up, manually press the actuator with your finger to make sure it moves freely and clicks.

Step 5: Test Before Reassembly

Here's a trick that'll save you from taking things apart again: plug the washer back in and run a quick test cycle before you button everything up. Close the lid and start a wash cycle. You should hear the washer fill immediately. If it doesn't start, double-check your wire connection. Once you've confirmed it works, unplug again, reattach the control panel, and secure all screws.

Testing After Installation

Run a complete wash cycle with a small load to verify everything's working correctly. The washer should start immediately when you close the lid and press start. Open the lid mid-cycle — the machine should stop spinning within 2-3 seconds (this is the safety feature working). Close it again, and the cycle should resume. If you have a Kenmore 110.26002011 or similar model with a digital display, make sure no error codes appear.

Frequently Asked Questions

How do I know if my lid switch is bad or if it's a different problem?

The classic symptom is a washer that fills but won't agitate or spin, even with the lid closed. You might also hear a single click when you close the lid but nothing else happens. Use a multimeter to test continuity — with the lid closed (switch pressed), you should read near-zero ohms. If it reads infinite resistance, the switch is dead. If you don't have a multimeter, and the washer is completely unresponsive when you close the lid, the switch is your most likely culprit.

Will this work on both washer and dryer models?

Yes, the SWD-225 replaces switches on both top-load washers and front-load dryers. On dryers like the WED4815EW1, it's called a door switch instead of a lid switch, but the function is identical — it prevents operation when the door is open. The installation process is nearly the same, though dryers usually have easier access through the top panel.

My washer still won't start after replacing the switch. What else could it be?

First, verify you have the actuator positioned correctly — if it's not getting pressed when the lid closes, the switch won't activate. Check that the lid strike (the piece on the lid that presses the switch) isn't broken or bent. If the switch clicks but the washer still won't run, you might have a bad timer, control board, or motor coupling. On mechanical models, the next most common issue is a worn drive belt. But if you're getting zero response — no sounds at all — double-check your power supply and door lock mechanism on models that have one.
