How to Replace DD82-01380A Circulation Pump Assembly on Samsung Dishwasher — Step-by-Step

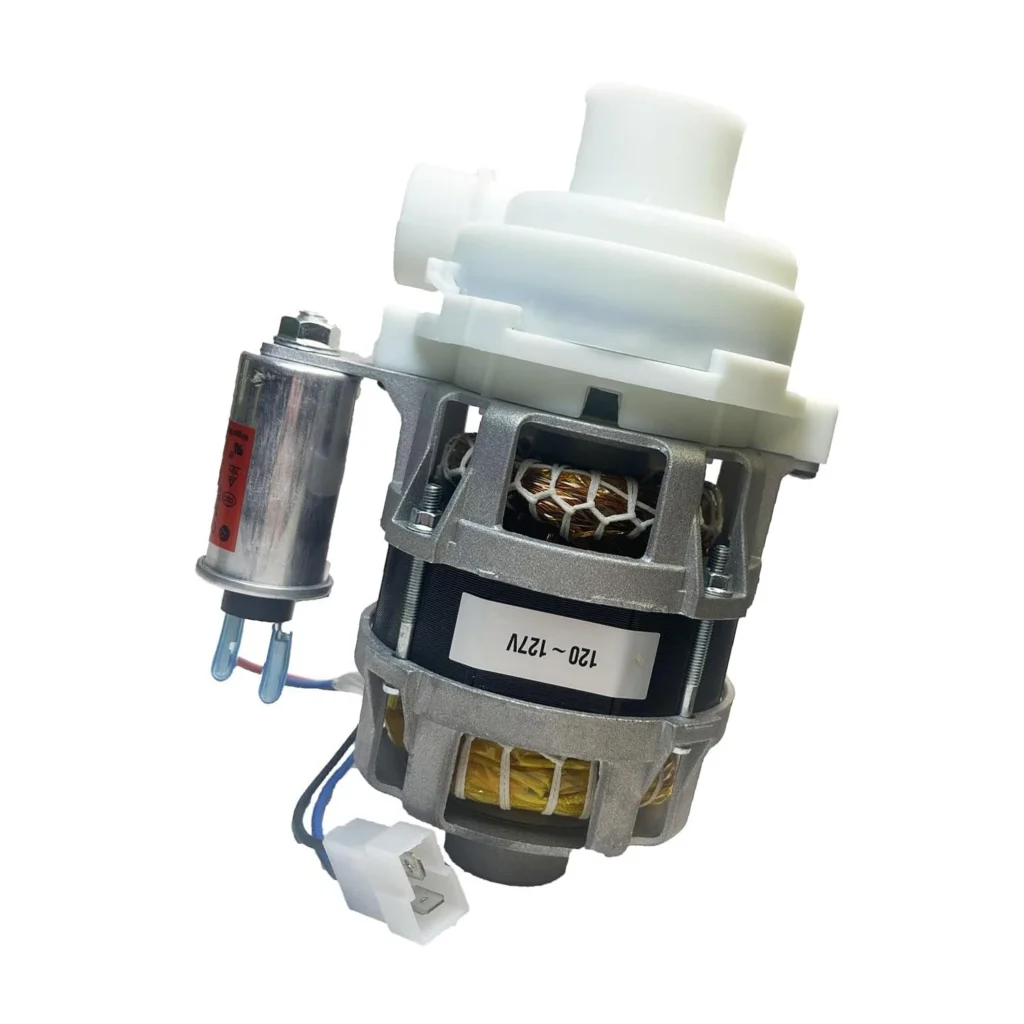

Your Samsung dishwasher runs through its cycle, but the dishes come out dirty with food particles still stuck on. You hear the motor running, but there's no forceful spray sound coming from inside. That's your circulation pump failing — the heart of your dishwasher's cleaning system. The DD82-01380A circulation pump assembly is what pushes water through the spray arms, and when it goes bad, you're basically running an expensive drying cabinet.

This pump assembly works in models like the DW80M2020US, DW80N3030US, DW80R2031US, and the newer DW80CG4021SR series. It's a critical component, but it's absolutely replaceable if you're comfortable working with basic tools and following safety protocols.

What You Need Before Starting

Gather these tools before you begin:

• Phillips head screwdriver
• Flathead screwdriver
• Towels and shallow pan (for water spillage)
• Work gloves
• Flashlight or headlamp
• Needle-nose pliers

Estimated Repair Time: 45-60 minutes

Difficulty Level: Moderate

Safety First

Warning: Unplug your dishwasher completely or turn off the circuit breaker before starting this repair. You'll be working near electrical connections and water lines. Even though the pump is at the bottom of the tub, residual water will spill out when you disconnect the assembly — keep towels handy. Never attempt this repair while the unit has power.

Step 1: Access the Pump Assembly from Below

Pull your dishwasher forward from the counter — you need to work underneath. Remove the lower access panel at the front bottom of the unit by unscrewing the Phillips screws. You'll see the pump assembly mounted directly below the tub floor. Place towels under the work area because water trapped in the sump and hoses will drain out during removal.

Step 2: Disconnect Hoses and Electrical Connections

The circulation pump has two main hose connections — inlet from the sump and outlet to the spray arm system. Use pliers to release the hose clamps, then gently twist and pull the hoses off. Water will flow out, so have your pan ready. Next, locate the wire harness connector on the pump motor. Press the release tab and pull straight out. Don't yank on the wires themselves.

Step 3: Remove the Old Pump Assembly

The DD82-01380A assembly is secured by three or four mounting screws around its perimeter. Remove these screws completely and set them aside — you'll reuse them. Carefully rotate the pump assembly counterclockwise about a quarter turn, then pull it straight down and out. It's heavier than it looks, around 5-6 pounds with the motor attached. Watch for any remaining water dripping from the sump opening.

Step 4: Install the New DD82-01380A Pump

Before installing the new pump, inspect the rubber gasket that seals against the tub bottom. If your new pump doesn't include one, transfer the old gasket if it's still in good condition. Position the new DD82-01380A assembly into the mounting hole, aligning the tabs with the slots in the sump housing. Rotate clockwise until it locks into position, then secure with the mounting screws. Tighten in a star pattern to ensure even pressure on the seal.

Step 5: Reconnect Hoses and Electrical

Push the inlet and outlet hoses firmly onto their respective ports — you should feel them seat completely. Slide the hose clamps back into position and tighten securely. A loose connection here will cause leaks during operation. Plug the wire harness back into the pump motor connector until you hear it click. Give it a gentle tug to confirm it's locked in place.

Testing After Installation

Slide the dishwasher back partway, but keep the access panel off for your first test run. Restore power to the unit and start a normal wash cycle. Immediately check underneath for any water leaks around the pump connections. You should hear a strong humming from the motor and water rushing through the spray arms within the first two minutes. Let it run for 5-10 minutes, monitoring for leaks. If everything's dry, finish securing the dishwasher and reinstall the access panel.

Frequently Asked Questions

Will this pump fit my DW80M2020US if it's a different series letter?

Yes, the DD82-01380A works across series letters like /AA, /AC, and /AD. Samsung uses the same pump assembly for the entire model family. Verify your complete model number on the label inside the door frame, but if you've got a DW80M2020US, DW80N3030US, DW80R2031US, or DW80CG4021SR variant, you're good to go.

How do I know if my circulation pump is bad versus a different problem?

A failed circulation pump usually shows specific symptoms: dishes don't get clean, you hear the motor running but no water spray sound, or you get error codes related to water circulation. If your dishwasher won't fill with water at all, that's typically the inlet valve. If it won't drain, that's the drain pump. The circulation pump runs during the wash cycles to create spray pressure.

Can I replace just the motor instead of the whole assembly?

Samsung sells the DD82-01380A as a complete assembly — motor, impeller housing, and mounting bracket together. While you technically could source just a motor, the labor to disassemble the pump housing isn't worth the minimal savings. Plus, if the impeller chamber has any wear or cracks, you'd be reinstalling a motor into a compromised housing. Replace the whole assembly for reliability.
