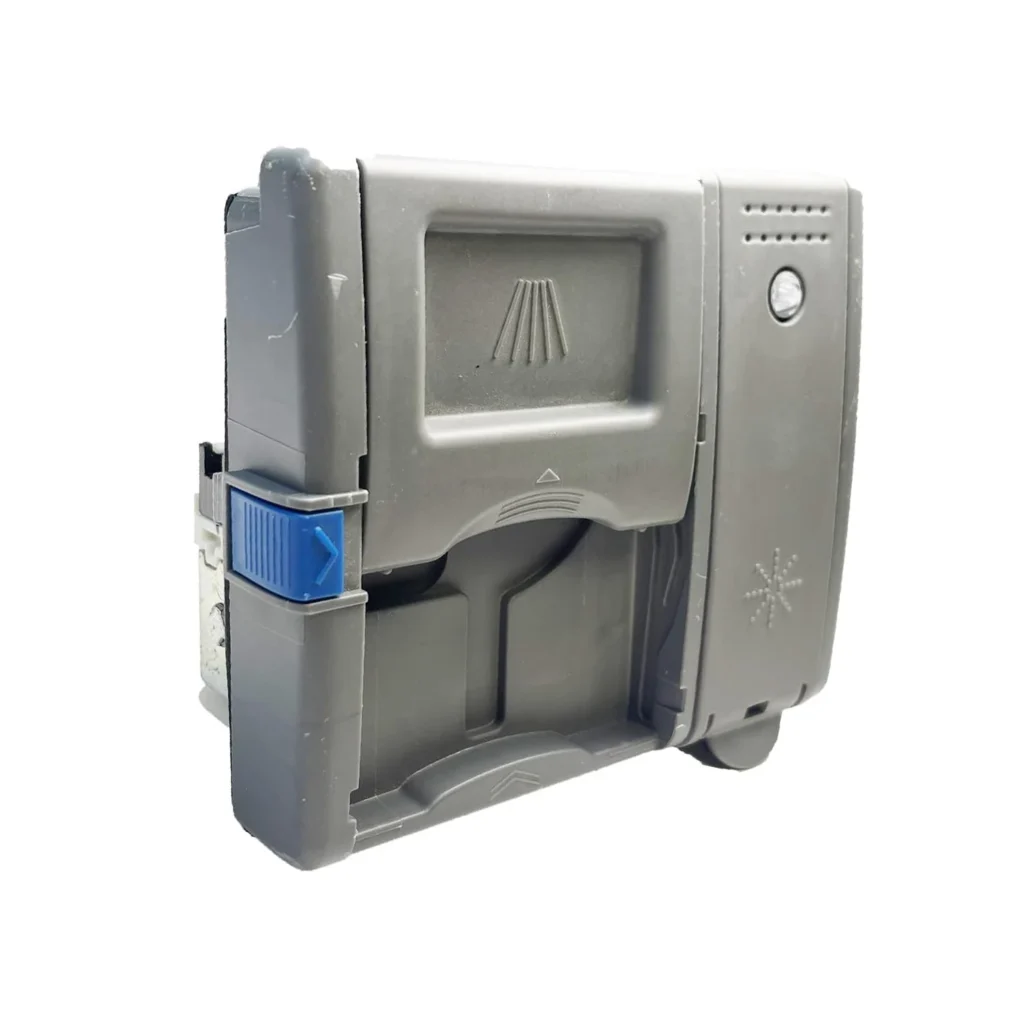

How to Replace DD81-02628A Detergent & Rinse Aid Dispenser Assembly on Samsung Dishwasher — Step-by-Step

You open your Samsung dishwasher expecting sparkling dishes, but instead you're greeted with a soap pod sitting intact in the dispenser cup. Or maybe you've noticed detergent residue pooling at the bottom of your dishwasher door. When the DD81-02628A dispenser assembly fails, your dishes don't get clean—no matter how many cycles you run. This complete dispenser assembly replacement works across dozens of Samsung models, including the DW80M2020US, DW80N3030US, and DW80R2031US series.

What You Need Before Starting

This repair requires minimal tools but careful handling of the dishwasher door assembly. Clear your workspace and have these items ready:

• Phillips head screwdriver
• Torx T20 screwdriver (some models)
• Flathead screwdriver for panel clips
• Towel or soft cloth to protect the door
• Small container for screws
• Work gloves (optional, for handling sharp edges)

Estimated Repair Time: 30-45 minutes

Difficulty Level: MODERATE — Requires door panel removal but no electrical work

Safety First

Before you touch anything, disconnect power to your dishwasher at the circuit breaker. Water supply doesn't need to be shut off for this repair since you're working on the door assembly, not the water lines. Lay a towel on the floor in front of the dishwasher—you'll be working with the door in the open position, and this protects both the door and your flooring. The inner door panel can be heavy once unsecured, so work carefully to avoid pinching fingers.

Step 1: Remove the Inner Door Panel

Open the dishwasher door fully. You'll see screws around the perimeter of the inner door panel—typically 8-12 Torx or Phillips screws depending on your model. Remove all visible screws and place them in your container. On DW80M and DW80N series models, there are usually two screws at the top corners, several along the sides, and two at the bottom. Don't force anything—if a panel won't lift, you've missed a screw or clip.

Step 2: Carefully Separate the Inner Panel

With all screws removed, gently lift the inner door panel away from the outer door. It may require slight wiggling due to plastic clips at the top. You'll now see the back side of the control panel and the old dispenser assembly mounted to the inner door. The wiring harness for the dispenser will still be connected—don't yank the panel completely free yet. Rest the inner panel against the open dishwasher door at an angle so you can access the dispenser.

Step 3: Disconnect and Remove the Old Dispenser

Locate the wire harness connector on the back of the dispenser assembly. Press the locking tab and pull the connector straight out—no twisting. The DD81-02628A assembly is held in place by several plastic clips and possibly 2-3 additional screws. On most Samsung models, you'll see tabs that need to be pressed inward while pushing the dispenser out from the front. Some force may be needed if detergent residue has created sticky buildup around the mounting area. Once clips are released, the entire assembly should slide out toward the front of the door.

Step 4: Install the New DD81-02628A Assembly

Before installing, wipe down the mounting area on the inner door panel to remove any old detergent or rinse aid residue. Position the new DD81-02628A assembly from the front of the door, aligning the mounting tabs with their slots. Push firmly until you hear or feel the clips snap into place. If your model uses screws, thread them in now but don't overtighten—the plastic housing can crack. Connect the wire harness by pushing it onto the connector until it clicks. Give it a gentle tug to confirm it's locked in.

Step 5: Reassemble the Door Panel

Align the inner door panel back onto the outer door, making sure no wires are pinched between the panels. The top edge typically has alignment clips that need to seat first. Once positioned, thread all screws back into their original locations and tighten in a star pattern to ensure even pressure. Don't overtighten—you're working with plastic and metal, and stripped threads mean a ruined door panel. Close the dishwasher door and check that it feels solid with no rattling.

Testing After Installation

Restore power at the circuit breaker. Open the dispenser door manually to verify smooth operation—it should spring open easily and close with a firm click. Run a quick rinse cycle without dishes to test the dispenser. Add a small amount of detergent and watch through the first few minutes to confirm the dispenser door opens at the right time. On Samsung dishwashers, this typically happens about 5-8 minutes into the wash cycle. If detergent releases properly and the rinse aid indicator lights work correctly, your repair is complete.

Frequently Asked Questions

Will this dispenser assembly work with my specific Samsung dishwasher model?

The DD81-02628A is compatible with DW80M2020US, DW80N3030US, DW80N3030UW, DW80N3030UB, DW80R2031US series, and many other Samsung models. Check the compatible models list on the product page or compare your current part number. This assembly replaces older part numbers DD81-02202A, AP6807446, and PS12593036, so if your original dispenser has any of those numbers, the DD81-02628A is your direct replacement.

Why does my dispenser door sometimes fail to open even with a new assembly?

If you've installed a new dispenser but the door still won't open, check the wiring harness connection first—it must click fully into place. Also verify that nothing is blocking the dispenser door from the inside, like an oversized dish or utensil. Some Samsung models have a dispenser actuator issue separate from the assembly itself, but in most cases, if the assembly is genuinely new and properly installed, operation should be normal.

Can I repair just the latch or door on the dispenser instead of replacing the entire assembly?

Samsung sells the DD81-02628A as a complete assembly because the latch mechanism, rinse aid reservoir, and dispenser door are integrated into one unit. Individual components aren't available separately for this part. While it's a higher upfront cost at $206.99, you're replacing everything at once—the door spring, latch, rinse aid chamber, and mounting bracket—which eliminates multiple potential failure points and ensures your dishwasher works properly for years.
