How to Replace DD59-01002A Detergent Dispenser Assembly on Samsung Dishwasher — Step-by-Step

Your Samsung dishwasher's detergent door won't open during the wash cycle. You're finding undissolved detergent pods sitting in the dispenser at the end of every cycle, and your dishes are coming out covered in a greasy film. The DD59-01002A detergent and rinse aid dispenser assembly controls when soap gets released into your dishwasher — when it fails, you're essentially running empty wash cycles.

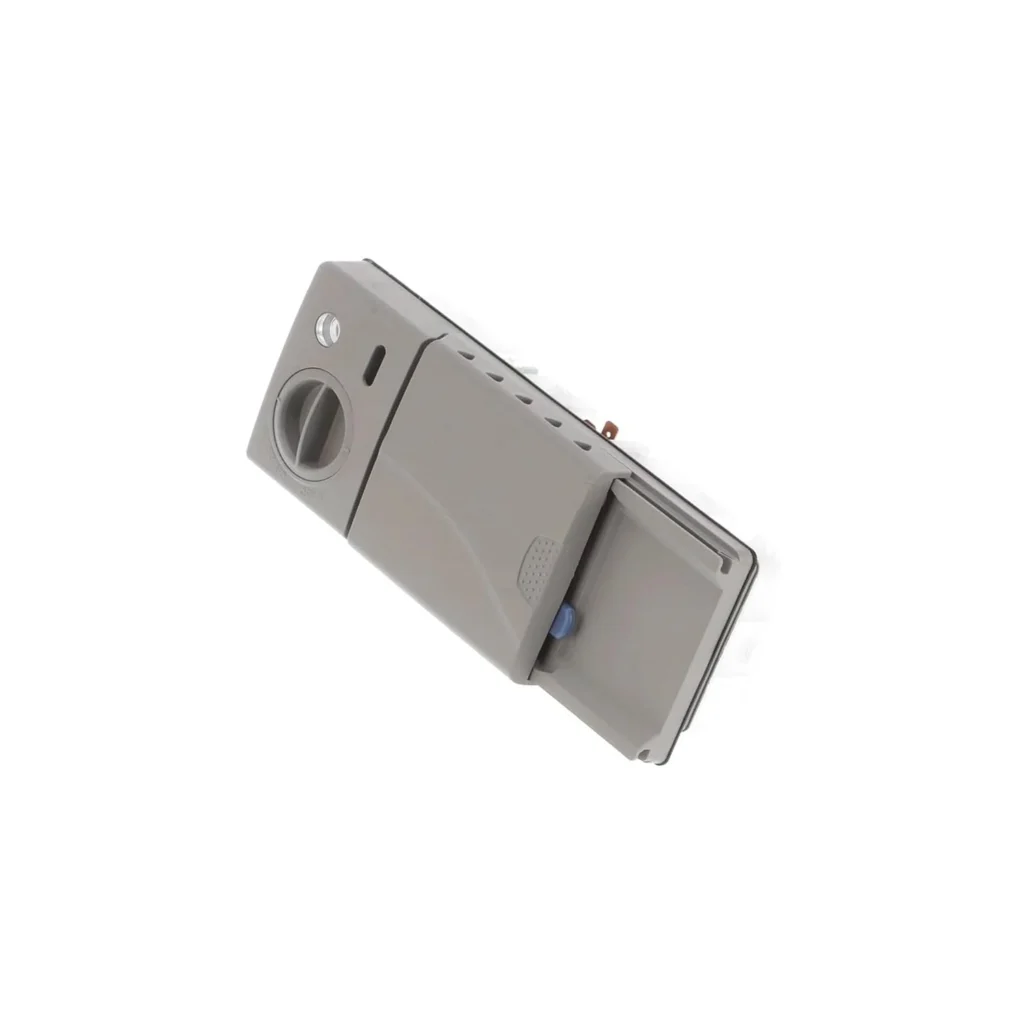

This dispenser assembly is the complete unit that houses both your detergent compartment and rinse aid reservoir. It includes the mechanical latch mechanism, the wax motor actuator that opens the door mid-cycle, and all the mounting hardware. On Samsung models like the DW80H9930US, DW80J7550US, and DW80K5050US, this component sits on the inside of the door and coordinates with your dishwasher's control board to release detergent at exactly the right moment.

What You Need Before Starting

• Phillips head screwdriver (#2)
• Torx T20 screwdriver (some models)
• Flathead screwdriver for trim clips
• Needle-nose pliers
• Towel or mat to protect your floor
• Small container for screws
• Work gloves (optional)

Estimated Repair Time: 45-60 minutes

Difficulty Level: MODERATE — Requires removing the inner door panel

Safety First

Disconnect power to your dishwasher at the circuit breaker before starting this repair. The dispenser connects to live electrical wires that control the actuator motor. Even with the door open, there's risk of shock if power remains connected. Also, you'll be working with the door in various positions — make sure you have adequate lighting and someone nearby if you need help supporting the inner door panel during removal.

Step 1: Access the Inner Door Panel

Open your dishwasher door fully so it's horizontal. Look along the sides and top of the inner door panel — you'll see 8-12 Torx or Phillips screws securing it. On the DW80H9970US and similar models, these are typically T20 Torx screws. Remove all visible screws around the perimeter, placing them in your container. Don't forget the screws hidden behind the filter housing at the bottom of the door.

Step 2: Separate the Door Panels

With all screws removed, carefully lift the inner door panel up and away from the outer panel. It'll be heavier than you expect — the insulation layer between panels adds significant weight. The panel is still connected by the wire harness for the dispenser and control panel, so don't pull it completely free. Rest the inner panel against the open dishwasher door at an angle so you can access the back side where the dispenser mounts.

Step 3: Disconnect and Remove the Failed Dispenser

Locate the DD59-01002A dispenser assembly on the back of the inner door panel — it's the large rectangular unit with the detergent and rinse aid caps visible from the front. You'll see a wire harness connector plugged into the dispenser's actuator motor. Press the locking tab and pull the connector straight out. Now remove the four mounting screws holding the dispenser to the door panel (two on each side). Lift the old dispenser assembly straight out. If there's dried detergent or rinse aid residue around the mounting area, clean it now with a damp cloth.

Step 4: Install the New DD59-01002A Assembly

Position your new DD59-01002A dispenser assembly into the mounting location. The detergent compartment should face outward (toward what will be the inside of the door). Align all four screw holes and hand-thread each mounting screw before tightening any of them — this ensures proper alignment. Tighten the screws in a cross pattern (top-left, bottom-right, top-right, bottom-left) to distribute pressure evenly. Plug the wire harness connector back into the dispenser actuator until you hear it click. Give it a gentle tug to confirm it's locked in place.

Step 5: Reassemble the Door Panels

Carefully lift the inner door panel back into position on the outer panel, making sure no wires get pinched between them. The panel should sit flush all the way around. Replace all the perimeter screws in reverse order of removal, but don't fully tighten them yet. Once all screws are hand-tight, go back and snug them down evenly — overtightening can crack the plastic panel. Close the dishwasher door and check that it latches properly and feels solid.

Testing After Installation

Restore power at the circuit breaker. Open the dispenser door and add a small amount of dishwasher detergent (don't fill it yet). Start a rinse cycle or short wash cycle. Within the first 10-15 minutes, you should hear a distinct click as the dispenser door releases. Open the dishwasher mid-cycle to verify the detergent compartment door has opened and the soap has been dispensed. If the door opens on cue, your installation is successful. Run a complete wash cycle with dishes to confirm everything works under normal operating conditions.

Frequently Asked Questions

Why won't my new dispenser release detergent even after replacement?

If the DD59-01002A assembly still won't open, check that the wire harness connection is fully seated — a partially connected plug won't deliver power to the actuator motor. Also verify you restored power at the breaker. If the dispenser worked once but stopped, the control board may have a separate issue preventing it from sending the release signal. The actuator should get warm during the cycle when it's receiving power — if it stays cold, trace back to the control board connection.

Can I replace just the dispenser door latch instead of the whole assembly?

The DD59-01002A is sold as a complete assembly because the latch mechanism, actuator motor, and housing are integrated into one unit. Samsung doesn't sell these components separately. Attempting to repair just the latch or actuator typically fails because the wax motor actuator degrades over time and can't be rebuilt. The complete assembly replacement ensures all components are new and properly calibrated to work together.

How do I know if my dispenser assembly has failed or if it's a control board issue?

Listen during a wash cycle. If you hear a clicking sound at the time detergent should release but the door doesn't open, the actuator is getting power but mechanically failed — that's the dispenser assembly. If there's no click at all and the dispenser never attempts to open, test the actuator with a multimeter for continuity or check if it gets warm during operation. No heat and no continuity suggests a control board or wiring problem rather than the dispenser itself. On Samsung models from 2015-2020 (like the DW80H9930US through DW80K7050UG), dispenser failure is far more common than control board issues.
