How to Replace DA97-15765A Condenser Fan Motor Assembly on Samsung Refrigerator — Step-by-Step

Your Samsung refrigerator is running warmer than it should. You hear the compressor kick on, but there's no fan sound coming from the back. Maybe you've noticed frost building up in the freezer compartment or the compressor cycling on and off more frequently. That silent condenser fan motor is exactly what's causing your refrigerator to struggle — and replacing the DA97-15765A condenser fan motor assembly will get your fridge back to keeping things cold.

This condenser fan motor assembly works on popular Samsung French door models like the RF263BEAESG, RF28HMEDBWW, RF25HMEDBSR, and dozens more. The fan's job is critical: it pulls air across the condenser coils to dissipate heat from the refrigeration system. When it fails, your entire cooling system suffers.

What You Need Before Starting

Gather these tools before you begin:

• Phillips screwdriver
• 1/4-inch nut driver or socket wrench
• Flathead screwdriver (for wire harness clips)
• Work gloves (metal edges can be sharp)
• Flashlight or work light

Repair Time: 30-45 minutes
Difficulty: Moderate

You'll be working behind the refrigerator, so clear enough space to pull the unit away from the wall. Have someone help you move it if needed — these Samsung French doors are heavy.

Safety First

Unplug your refrigerator from the wall outlet before starting any work. Don't just rely on the circuit breaker — physically disconnect it. The condenser fan motor receives line voltage, and you'll be working directly with electrical connections. Additionally, the back panel and components can have sharp edges that'll slice your hands if you're not careful. Keep those work gloves on throughout the repair.

Step 1: Access the Condenser Compartment

Pull your refrigerator away from the wall to access the rear panel. You'll see a large metal panel covering the lower back section — this is where the condenser fan motor lives. Remove the screws securing this panel (typically 6-8 Phillips or hex screws around the perimeter). Set the panel aside. You'll now see the compressor, condenser coils, and the fan motor assembly mounted near the bottom right side.

Step 2: Disconnect the Wire Harness

Locate the wire harness connector attached to the fan motor. It's usually a white or black plastic connector with a locking tab. Press the release tab and gently pull the connector straight out. Don't yank on the wires themselves — pull from the connector housing. Take a quick photo with your phone before disconnecting if you're worried about reconnection later, though the connector only fits one way.

Step 3: Remove the Old Fan Motor Assembly

The condenser fan motor assembly is held in place by a metal mounting bracket. You'll see two or three screws securing the bracket to the refrigerator frame. Remove these screws with your nut driver or socket wrench. Once the screws are out, carefully lift the entire fan motor assembly straight up and out. The fan blade is attached to the motor, so the whole unit comes out as one piece. Watch for any remaining wire clips or ties that might still be holding things in place.

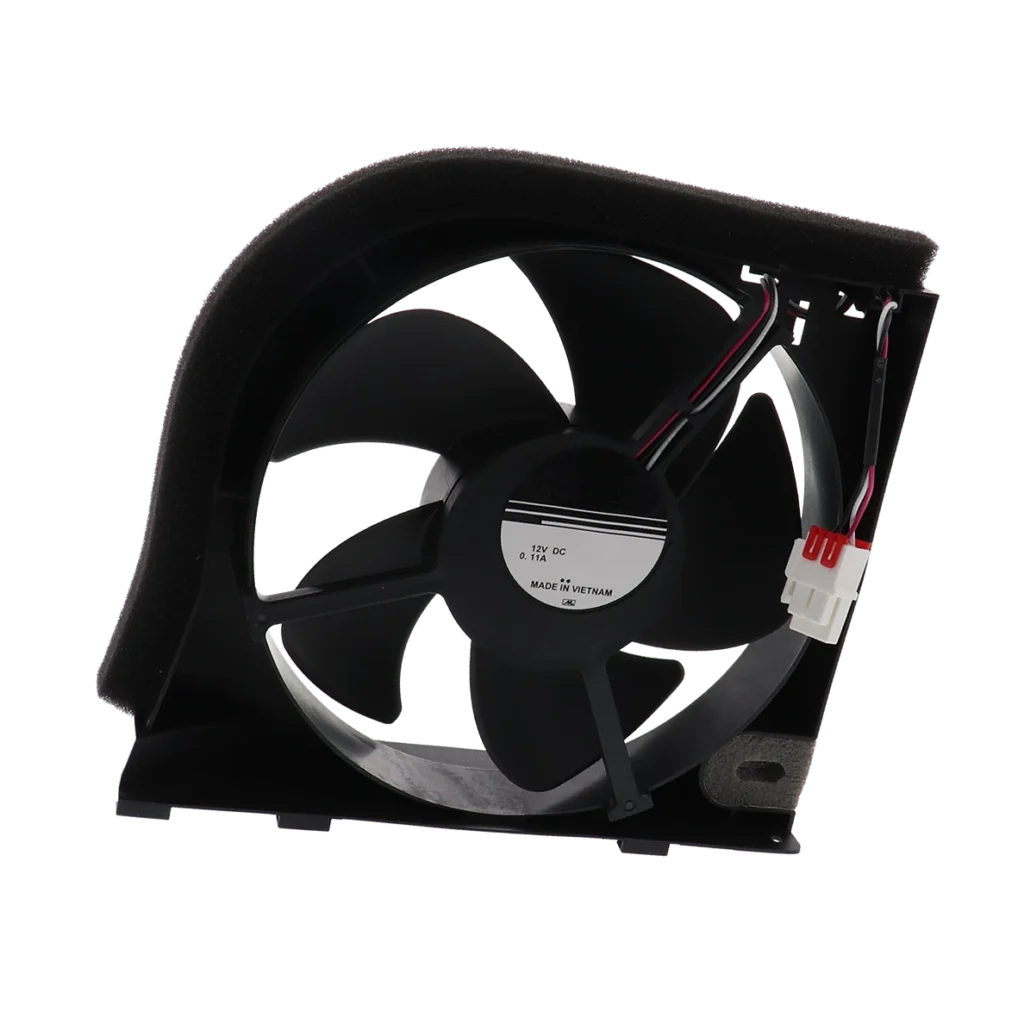

Step 4: Install the New DA97-15765A Assembly

Position your new DA97-15765A condenser fan motor assembly in the same location where the old one sat. The mounting holes should align perfectly with the frame. Make sure the fan blade has clearance and won't hit the condenser coils or compressor when it spins. Secure the mounting bracket with the screws you removed earlier. Tighten them snugly but don't overtighten — you're threading into thin metal and can strip it out. Reconnect the wire harness connector by pushing it firmly until you hear or feel it click into place.

Step 5: Test and Reassemble

Before putting the back panel on, plug the refrigerator back in and listen for the fan motor to start running. It should begin spinning within a minute or two as the compressor cycles on. If the fan doesn't run immediately, don't panic — the control board may wait until the compressor needs cooling. You can gently spin the fan blade by hand to make sure it rotates freely without obstruction. Once you've confirmed everything works, unplug again and reinstall the rear access panel with all the screws.

Testing After Installation

Plug your refrigerator back in and push it into position. Over the next few hours, monitor the temperature inside both the refrigerator and freezer compartments. They should start dropping back to normal range within 2-4 hours. Listen for the condenser fan motor running when the compressor is on — you should hear a steady hum from behind the fridge. Check that the compressor isn't cycling on and off rapidly anymore, which was a symptom of the failed fan. If frost was building up in your freezer, that should stop happening now that proper airflow is restored.

Frequently Asked Questions

Will this DA97-15765A work if I have part number DA97-12842A or DA97-15765C?

Yes, absolutely. The DA97-15765A directly replaces DA97-15765C, DA97-12842A, AP6001015, and PS11733650. Samsung updated the part number but the assembly is functionally identical and mounts the same way. If your original fan had any of these numbers, the DA97-15765A is your correct replacement.

Why did my condenser fan motor fail in the first place?

Most condenser fan motors fail from accumulated dust and debris restricting airflow, which makes the motor work harder and overheat. Pet hair is especially problematic. The motor bearings can also wear out after years of continuous operation — these fans run almost constantly when the compressor is on. High ambient temperatures in hot garages or kitchens accelerate failure. Regular cleaning of the condenser coils and fan area every six months can extend motor life significantly.

How do I know if my condenser fan motor is bad versus the control board?

If you can access the fan motor and it's cool to touch, try spinning the blade by hand. A bad motor will feel stiff, won't spin freely, or the blade might wobble. You can also test voltage at the connector with a multimeter — if you're getting 120V but the motor won't run, the motor itself is bad. If there's no voltage at the connector when the compressor is running, you've got a control board or wiring issue instead. In most cases with Samsung refrigerators, the motor fails mechanically rather than the board failing to send power.
