How to Replace DA3400066C Door Interlock Switch on Samsung Refrigerator — Step-by-Step

Your Samsung fridge is beeping constantly even when both doors are closed. You've pressed every button, adjusted the temperature, even unplugged it for ten minutes. Nothing works. The culprit? That little door interlock switch — part number DA3400066C — has failed, and your fridge thinks the doors are wide open 24/7. This repair takes about 15 minutes and stops that maddening alarm for good.

What You Need Before Starting

This is one of the simpler fridge repairs you'll tackle. Here's what to grab:

• Phillips head screwdriver
• Flathead screwdriver (for prying trim panels)
• Needle-nose pliers (optional, for wire harness)
• Flashlight or headlamp
• Towel (to protect floor and catch screws)

Estimated time: 15-20 minutes

Difficulty: Easy — no technical experience needed

Compatible models: This DA3400066C switch works on Samsung French door models including RF263BEAESR, RF4287HARS, RF23HSESBSR, RF28HMEDBSR, RF4267HARS, RS267TDRS, RSG307AARS, RS25H5000SR, and dozens more. Check your model number on the sticker inside the fridge.

Safety First

You don't need to unplug the refrigerator for this repair — the door interlock switch operates on low voltage and there's no shock risk. However, if you're uncomfortable working near electrical components, go ahead and unplug it. The fridge will be fine for 20 minutes. Keep the doors closed as much as possible to maintain temperature.

Step 1: Locate the Door Interlock Switch

Open your refrigerator door and look at the top corner where the refrigerator and freezer doors meet when closed. You'll see a small plastic housing — usually white or gray — mounted on the refrigerator side. That's your door interlock assembly. The switch sits inside that housing and gets triggered when the freezer door presses against it. On most Samsung French door models, it's on the right side of the refrigerator compartment, about eye level when the door's open.

Step 2: Remove the Trim Cover

The switch is protected by a trim cover held in place with plastic clips or one Phillips screw. Look for a screw at the bottom of the housing first — if you see one, remove it. If there's no screw, use your flathead screwdriver to gently pry the cover off. Start at the bottom edge and work your way around. These clips can be stubborn, but they won't break if you're patient. The cover should pop right off once all clips are released.

Step 3: Disconnect the Old Switch

Now you'll see the interlock switch itself — a small rectangular component with a wire harness plugged into the back. Press the release tab on the wire connector and pull straight out. Don't yank on the wires themselves; grip the plastic connector. If it's stuck, wiggle it gently side to side while pulling. Once disconnected, remove the mounting screw holding the switch in place (usually just one Phillips screw). The old switch lifts right out.

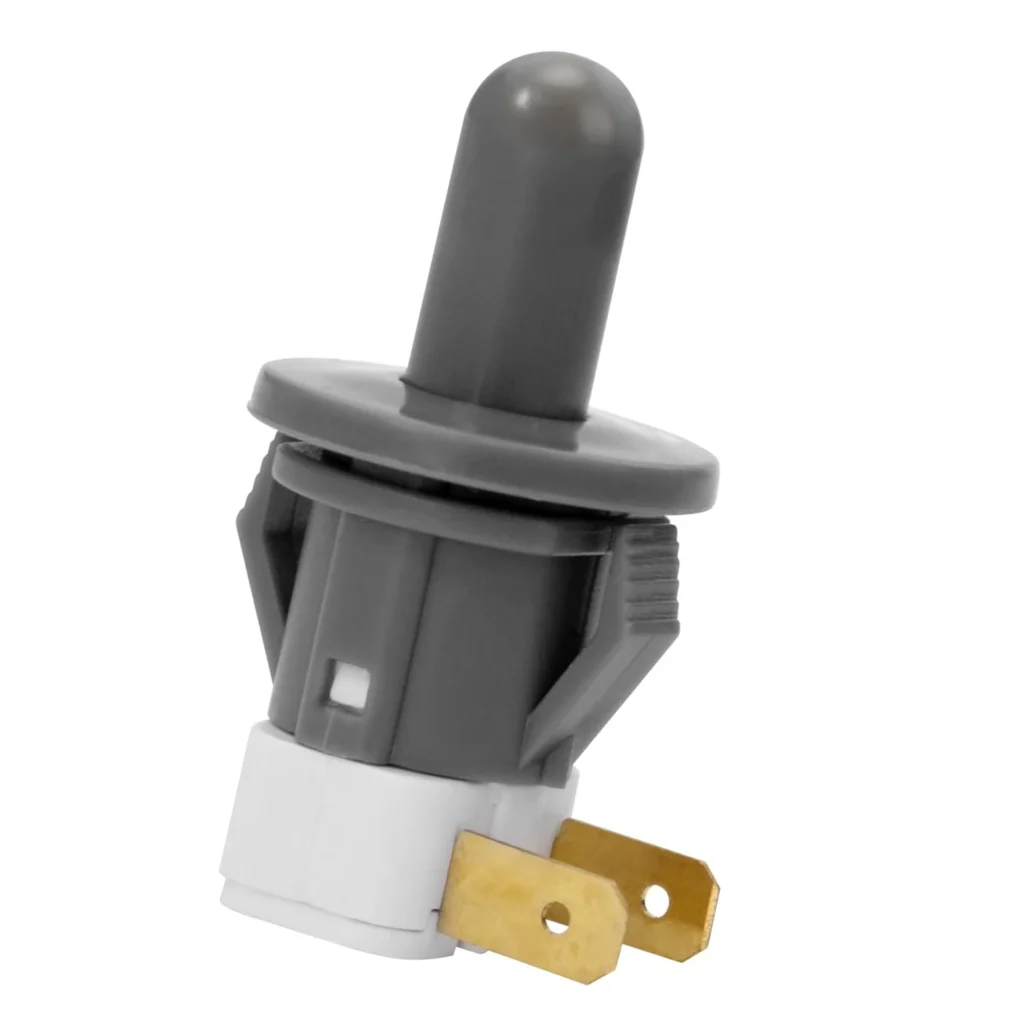

Step 4: Install the New DA3400066C Switch

Take your new DA3400066C switch and position it exactly where the old one sat. The mounting hole should line up perfectly. Thread in the mounting screw and tighten it snug — not gorilla-tight, just firm. Now plug the wire harness into the back of the new switch until you hear or feel it click. Give it a gentle tug to confirm it's locked in place. The connector only fits one way, so don't force it.

Step 5: Reinstall the Trim Cover

Snap the trim cover back over the switch assembly. Line up the clips and press firmly until you hear them click into place. If your model had a mounting screw, thread it back in. Close both doors and listen — that constant beeping should be gone. Open and close each door a few times to make sure the switch is working properly. The alarm should only sound when a door is actually open.

Testing After Installation

With both doors closed, your fridge should be completely silent (except for normal compressor sounds). Open just the refrigerator door — no alarm yet, that's normal. Now open the freezer door while the fridge door is open — the alarm should sound after about 60 seconds. That's exactly what it should do. Close both doors and the alarm stops. If the beeping continues with doors closed, double-check that the wire harness is fully seated and the switch is mounted flush against the frame.

Frequently Asked Questions

Will this switch work on my Samsung side-by-side refrigerator?

The DA3400066C is designed for French door and some side-by-side Samsung models. Check the compatible models list or compare your original part number. If your fridge uses AP5306252, 2705488, PS4138763, or EAP4138763, this is your part. Side-by-side models sometimes use a different switch design, so verify before ordering.

Why does my fridge beep even with the new switch installed?

Two common issues: either the wire harness isn't fully connected (push until it clicks), or the freezer door isn't closing properly and is actually triggering the switch. Check for obstructions in the door seal or items blocking the door from closing completely. Also verify the switch is mounted at the correct angle — it needs to make solid contact when the freezer door closes.

Can I just disconnect the old switch instead of replacing it?

Technically yes, but you'll lose the door alarm feature entirely. That means if someone leaves a door ajar, you won't know until your ice cream melts. The switch costs $48.99 and takes 15 minutes to replace — way cheaper than replacing spoiled food or running up your electric bill with an open door. Fix it properly.
