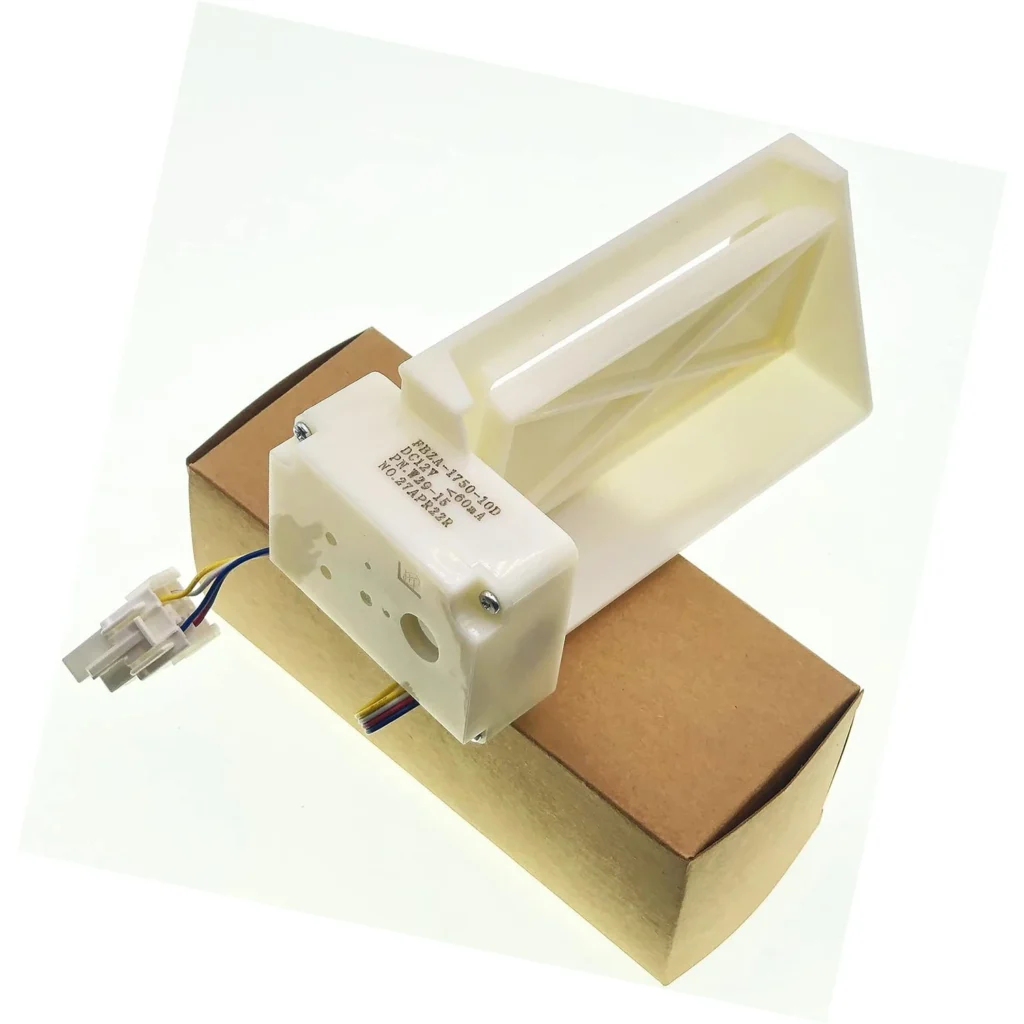

How to Replace DA31-00043F Air Damper Assembly on Samsung Refrigerator — Step-by-Step

You open your Samsung refrigerator and notice the fresh food section isn't staying cold while your freezer is running fine. Or maybe you're getting ice buildup in weird places. Nine times out of ten, you're dealing with a failed air damper assembly — the DA31-00043F. This little motorized door controls airflow between your freezer and fridge compartments, and when it fails, temperature regulation goes out the window.

What You Need Before Starting

• Phillips head screwdriver
• Flathead screwdriver
• Work gloves (optional)
• Towel or rag for cleanup

Estimated repair time: 30-45 minutes

Difficulty level: Moderate

Safety First

Unplug your refrigerator completely before starting this repair. The air damper assembly connects to electrical components, and you don't want any surprises. If you can't reach the plug, flip the breaker. Also, consider removing any items from the fridge shelves you'll need to access — saves you from playing Tetris mid-repair.

Step 1: Locate and Access the Air Damper

The DA31-00043F sits in the upper rear wall of your fresh food compartment, usually behind a plastic housing or vent cover. You'll need to remove the shelves blocking your access first. On most Samsung models like the RF220NCTASG or RFG297HDRS, it's directly behind the top shelf. Remove the cover screws — typically two or three Phillips heads — and gently pull the housing forward.

Step 2: Disconnect the Old Damper Assembly

Once the cover's off, you'll see the damper motor with a wire harness attached. Press the tab on the connector and pull it straight out — don't yank on the wires themselves. The assembly is usually held in place by two or three mounting screws. Remove these and the entire damper assembly should slide out toward you.

Step 3: Install the New DA31-00043F Assembly

Line up your new damper assembly in the same orientation as the old one. The damper door should face the opening that leads to the freezer compartment. Secure it with the mounting screws you removed earlier. Make sure it sits flush against the housing — any gaps will affect airflow and temperature control.

Step 4: Reconnect and Test the Motor Function

Plug the wire harness back into the new damper assembly until you hear a click. Before reassembling everything, plug your fridge back in temporarily and listen. The damper motor should make a soft whirring sound as it cycles open and closed during startup. If it's silent or makes grinding noises, recheck your connections.

Step 5: Reassemble and Monitor

Snap the plastic housing back into place and secure it with the cover screws. Replace your shelves and plug the refrigerator back in for good. Give it 24 hours to stabilize temperatures. Your freezer should be around 0°F and your fresh food section around 37°F. If temps aren't equalizing after a day, you might have a control board issue instead.

Testing After Installation

Listen for the damper motor cycling within the first hour of operation. Place a thermometer in both compartments and check temps after 6 hours, then again at 24 hours. The fresh food section should start cooling noticeably within 2-3 hours. If you're still getting uneven cooling, check that the damper door isn't obstructed by frost buildup — you might need to defrost the unit first.

Frequently Asked Questions

Will this DA31-00043F work on my specific Samsung model?

This assembly is compatible with dozens of Samsung refrigerator models including the RB series (RB10FSR4ESR, RB12A300631, RB33A307001), RF series (RF220DCTAS8, RF27T5501SR, RFG297HDRS), and various side-by-side configurations. It replaces part numbers AP4334500, 2030103, PS4138318, and DA31-00043C. Check your model number on the label inside your fridge door to confirm compatibility.

How do I know if the air damper is actually broken?

The telltale signs are uneven temperatures between compartments — usually a warm fridge with a perfectly cold freezer, or vice versa. You might also hear the damper motor buzzing continuously or see frost buildup around the damper area. Some models will display error codes on the control panel when the damper fails to respond.

Can I just leave the damper stuck open or closed?

Don't do it. A stuck-open damper will overcool your fresh food section and waste energy. A stuck-closed damper means no cold air reaches your fridge at all, spoiling your food. The damper needs to modulate airflow automatically based on temperature sensors — there's no good workaround for a failed assembly. Just replace it and save yourself the headache.
