How to Replace 5304506740 Center Spray Arm Assembly on Frigidaire Dishwasher — Step-by-Step

You pull out the bottom rack after a cycle and every dish still has crusty food stuck to it. The water's running, you hear the dishwasher working, but nothing's actually getting clean. Nine times out of ten, it's your center spray arm that's either clogged, cracked, or spinning like a drunk ballerina — barely moving enough to reach anything. On Frigidaire models like the FGID2466QF4A or FFCD2413US1A, this 5304506740 center spray arm assembly is your middle-tier water distributor, and when it fails, you're basically running a hot rinse cycle instead of actual washing.

What You Need Before Starting

This is one of the easiest dishwasher repairs you'll tackle. No special tools required — just your hands and maybe a towel to catch a bit of water. Here's what you're working with:

• No tools needed (hand-removable)
• Towel for water cleanup
• 5 minutes of your time
• Difficulty: Beginner-friendly

Safety First

Turn off the dishwasher at the control panel before you start. You don't need to kill power at the breaker for this one since you're not touching any electrical components, but make absolutely sure a cycle isn't running. Pull out both racks completely so you've got clear access to the spray arm assembly in the middle of the tub.

Step 1: Locate and Remove the Center Spray Arm

Pull out your bottom rack. The center spray arm sits on a tower in the middle of the dishwasher floor. Look for the spray arm hub — it's the round piece where the arm connects. On most Frigidaire models, you'll see a locking nut or cap in the center. Twist this counterclockwise (lefty-loosey) with your hand. Some models have a threaded nut, others have a push-tab release. Once unlocked, lift the entire spray arm assembly straight up and off the tower.

Step 2: Inspect the Mounting Tower

Before installing the new part, check the tower itself. Wipe away any food debris, calcium buildup, or detergent residue from the water inlet at the top of the tower. If water can't flow freely into the spray arm, your new part won't work any better than the old one. Run your finger around the base where water enters — it should be smooth and clear.

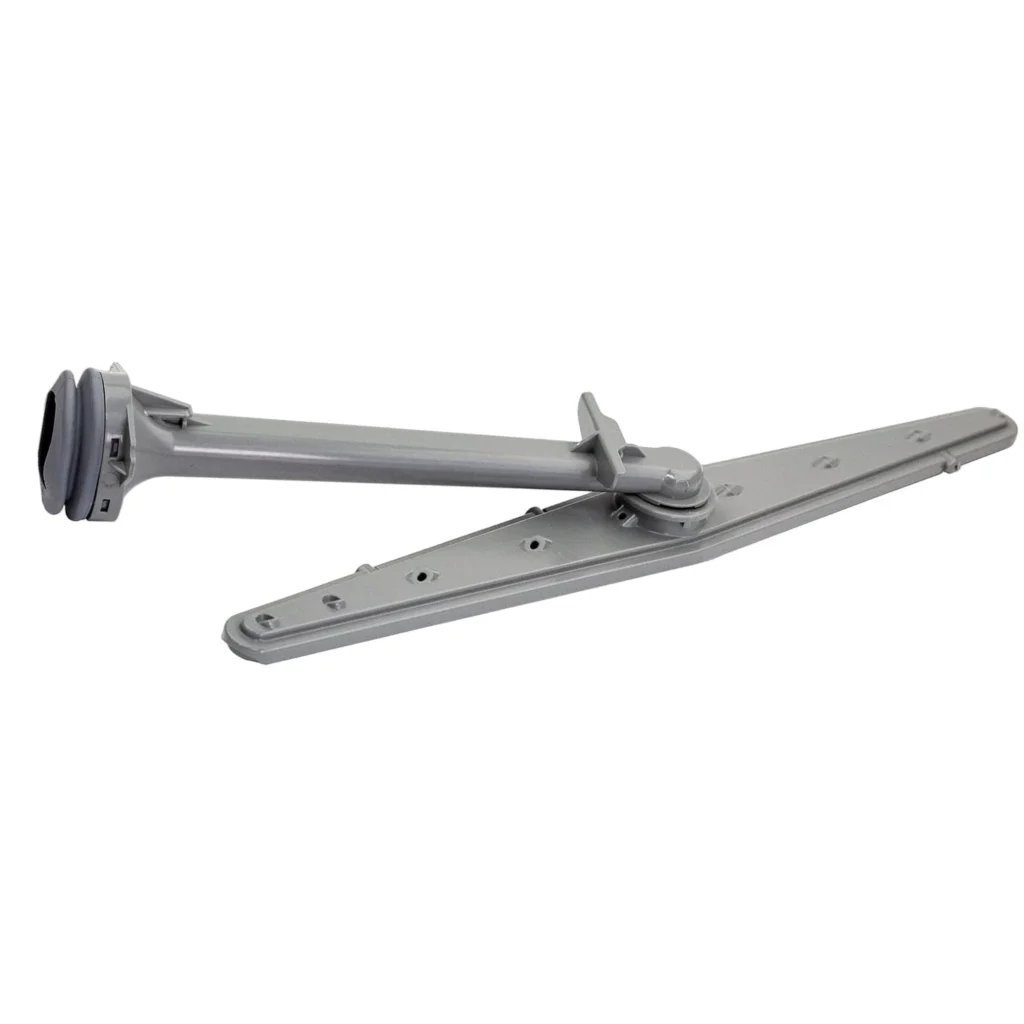

Step 3: Install the New 5304506740 Spray Arm Assembly

Line up the new spray arm assembly over the tower. The center hub has a specific orientation — there's usually a flat side or notch that matches the tower shaft. Lower it down until it sits flush, then secure it with the locking nut or cap by twisting clockwise. Don't overtighten — hand-tight is plenty. Give the spray arm a spin with your hand. It should rotate freely without wobbling or hitting anything.

Step 4: Check Spray Arm Clearance

Here's where people screw up: they install the part correctly but don't check clearance. Slowly push the bottom rack back in while watching the spray arm. It shouldn't catch on any tines, utensils, or the rack frame itself. Spin it by hand with the rack in place. Some dishes — like tall baking sheets loaded at an angle — can block rotation mid-cycle, which leads right back to poor cleaning performance.

Testing After Installation

Run an empty test cycle on the normal wash setting. Crack the door open about 30 seconds into the fill cycle and listen. You should hear water spraying forcefully, and if you're quick, you can actually see the spray arm spinning. After the cycle finishes, open up and check — the spray arm holes should be clear, no food caught in them, and everything should still be seated properly on the tower. If your dishes come out clean, you nailed it.

Frequently Asked Questions

Why aren't my dishes getting clean even with a new spray arm?

The spray arm is only one part of the water distribution system. Check your lower spray arm too — if it's clogged or broken, the center arm can't compensate. Also verify that your dishwasher's water inlet valve is actually letting enough water in. Low water pressure means weak spray regardless of arm condition. Finally, make sure the circulation pump isn't failing — you'll hear it struggling if it is.

How do I know if I have the wrong spray arm before installing it?

Compare the mounting hub design and the number of spray holes. Some users report ordering the wrong part because Frigidaire, Electrolux, and Kenmore models share similar-looking but incompatible spray arms. The 5304506740 has a specific hole pattern and hub design. If your old arm has a completely different mounting system — like a bayonet twist-lock versus a threaded nut — you've got the wrong part. Check your model number against the compatibility list before removing the old arm.

Can I run the dishwasher with a broken spray arm temporarily?

You can run it, but you're wasting water, detergent, and electricity. A cracked or non-spinning spray arm means only the lower arm is doing any work, so dishes in the upper rack and center area won't clean. You'll end up rewashing everything by hand anyway. The part costs less than running two or three wasted cycles, and installation takes five minutes — just replace it.
