How to Replace 383EER2001A Drain Pump Filter on LG Kenmore Washer — Step-by-Step

Water pooling under your LG washer? Clothes coming out soaking wet after the final spin? Nine times out of ten, it's your drain pump filter. This small but mighty component catches lint, coins, and debris before they damage your pump. When it cracks or the seal wears out, you'll see leaks or drainage problems that stop laundry day dead.

The 383EER2001A filter works in dozens of LG and Kenmore front-loaders including the WM2010CW, WM2077CW, WM2432HW, and WM2688HWM. Good news: this repair takes less than 15 minutes and you don't need to pull the washer away from the wall.

What You Need Before Starting

Grab these items before you start:

• Flat-blade screwdriver
• Large bucket or shallow pan
• Towels (trust me, you'll need them)
• Your new 383EER2001A filter

Time required: 10-15 minutes
Difficulty: Easy — perfect first repair if you've never worked on appliances

Safety First

Turn off the power to your washer at the breaker or unplug it completely. Also shut off the water supply valves behind the machine. Even though you're working on the front panel, there's residual water in the system that'll come gushing out. Protect your floor with old towels — you're about to drain several cups of water that's been sitting in the pump housing.

Step 1: Access the Filter Compartment

Look at the bottom front of your washer. You'll see a small rectangular access door, usually on the right side. Slide your flat-blade screwdriver into the notch and gently pry it open. The door's held by plastic clips, so don't force it — wiggle the screwdriver until it pops free. Some models have a finger-pull instead of requiring a screwdriver.

Step 2: Drain the Pump Housing

Inside the compartment, you'll see two things: a small drain hose (usually capped with a plug) and the filter housing itself. Pull out the drain hose first. Remove the cap and direct the hose into your bucket. Water will flow out — sometimes a lot if your washer was mid-cycle. Let it drain completely before moving to the filter. This step prevents a floor flood when you unscrew the filter.

Step 3: Remove the Old Filter

Now turn the filter housing counterclockwise. It's a large round cap, about 3 inches across. Expect more water to come out as you unscrew it — keep that bucket handy. The filter pulls straight out once it's unscrewed. Check inside the housing cavity with your fingers. You'll often find coins, lint clumps, or small socks that caused the drainage problem in the first place.

Step 4: Clean and Install the New Filter

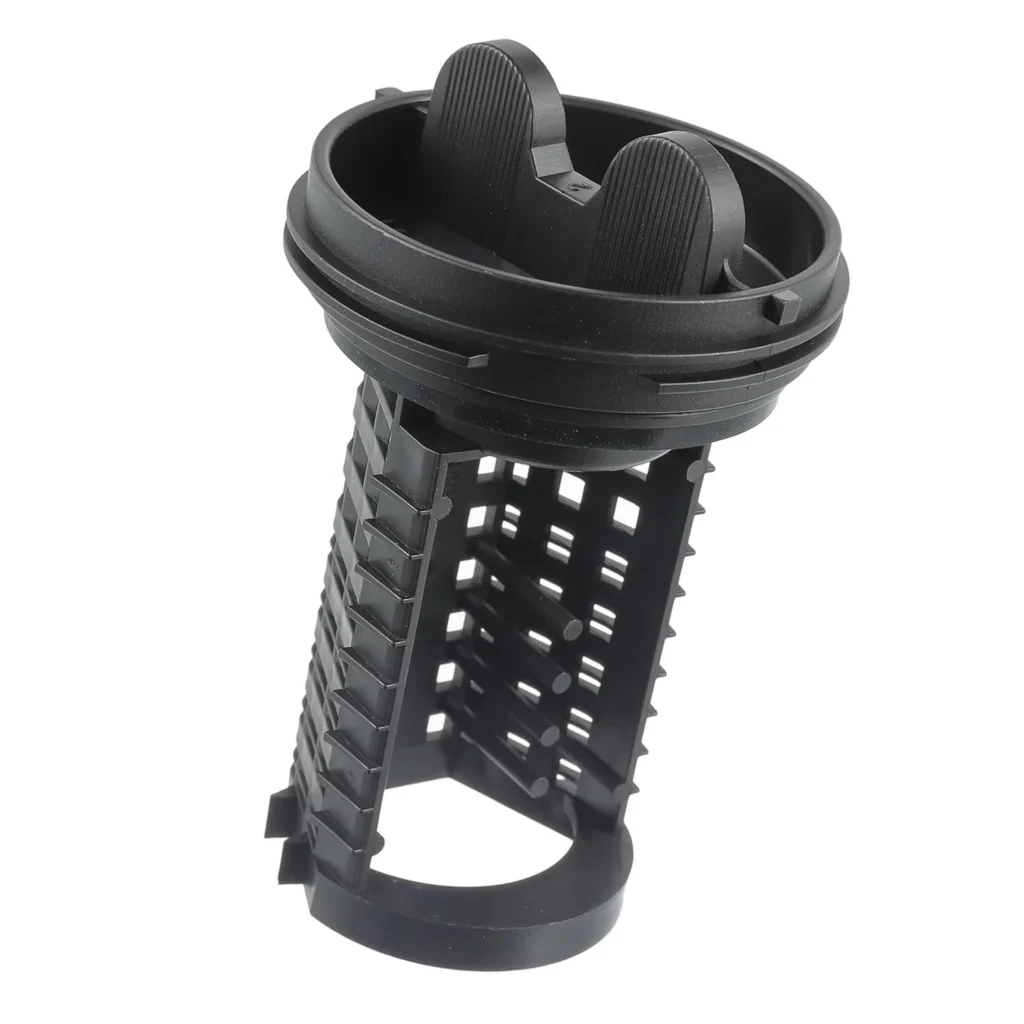

Wipe out the filter housing with a damp cloth. Remove any debris stuck in there. Check the rubber seal area on the washer where the filter threads in — if it's damaged, that's why you had leaks. Take your new 383EER2001A filter and screw it in clockwise until hand-tight. Don't overtighten or you'll crack the plastic housing. You should feel it seat firmly against the rubber gasket.

Step 5: Reassemble and Test

Replace the drain hose cap and tuck the hose back into the compartment. Snap the access door closed. Turn the water supply back on, then restore power to the washer. Run a short rinse-and-spin cycle without clothes. Watch the filter area during the drain cycle — you shouldn't see any leaks. If water appears, unscrew the filter and reinstall it, making sure it's seated properly against the gasket.

Testing After Installation

Run a full wash cycle with a small load. Check these points:

• No water leaking from the filter access area
• Washer drains completely (no standing water in the drum)
• No unusual noises during the drain cycle
• The spin cycle extracts water normally

If your washer still won't drain, the pump itself might be shot. But if it was leaking, the new filter seal should solve that immediately.

Frequently Asked Questions

How often should I clean this drain filter?

Every three months minimum. If you wash pet bedding or work clothes, check it monthly. A clogged filter forces your pump to work harder and shortens its life. Takes five minutes to unscrew it, rinse out the lint, and reinstall it.

Will this filter fit my Kenmore 79641379210 washer?

Yes. Kenmore front-loaders from the 796 series use LG parts since LG manufactures them. The 383EER2001A replaces the original 383EER2001F and 5230ER3002A. If your model's listed in the compatibility chart, you're good to go.

Why does water leak only during the spin cycle?

That's classic filter seal failure. The spin cycle creates the highest water pressure in the pump system. If the filter's rubber gasket is worn or the housing is cracked, you'll only see leaks when the pump's working hardest. The new filter comes with a fresh seal that'll stop those leaks.
