How to Replace 240534701 Refrigerator Door Shelf Retainer Bar on Frigidaire — Step-by-Step

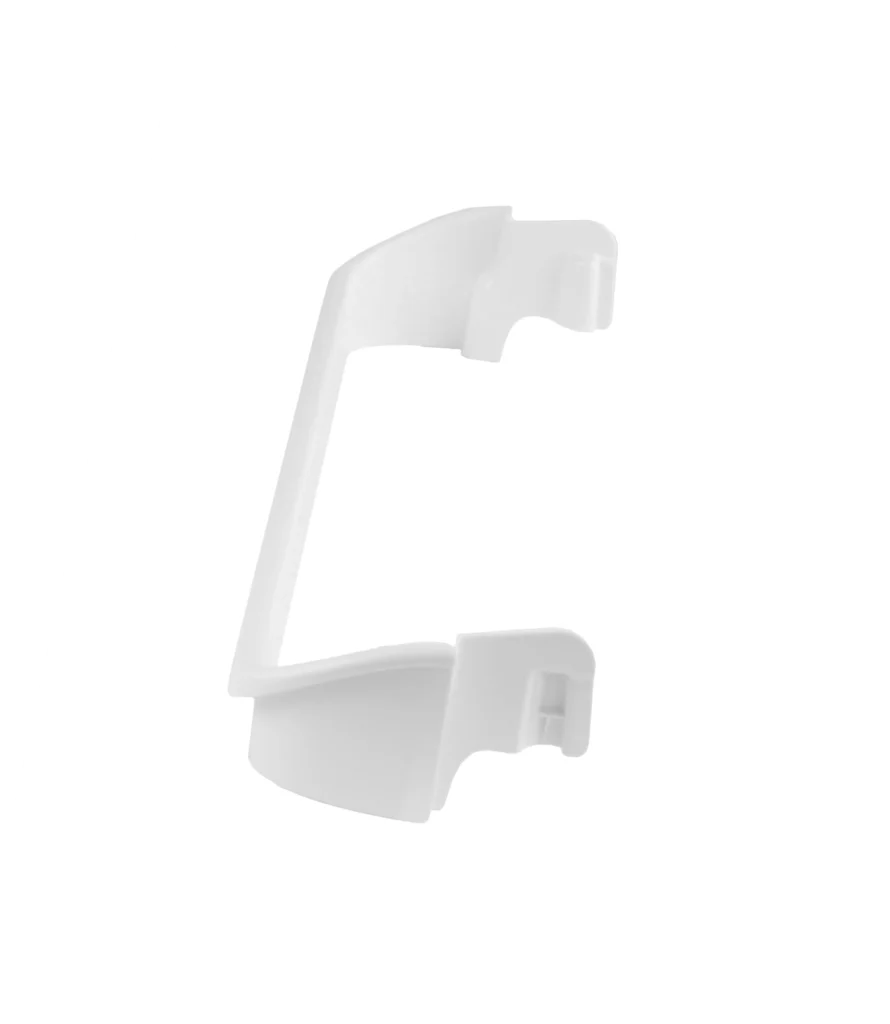

Your Frigidaire door won't close right and items keep falling out every time you open it. That's usually your door shelf retainer bar — the white plastic piece that holds everything in place. The 240534701 is famous for cracking after years of heavy milk jugs and soda bottles weighing it down.

Good news: this is one of the easiest refrigerator repairs you'll ever do. It's a snap-in part, no screws, no tools. You can do this in under five minutes.

What You Need Before Starting

Tools Required: None — this is a tool-free repair

Repair Time: 3-5 minutes

Difficulty: EASY — Perfect first-time repair

Compatible Models: This part works on dozens of Frigidaire and Kenmore models including FFTR1821TS5, FFTR1814TW5, FFTR2021TW1, FFHT1816PS1, FFTR1821QB1, and many more. Check your model number on the inside wall of your fridge.

Safety First

You don't need to unplug the refrigerator for this repair. Just remove all items from the door shelf first — don't try to work around bottles and jars. They'll fall out and make a mess when you release the old retainer bar.

Step 1: Empty the Door Shelf Completely

Take everything off the shelf you're working on. I mean everything — that one random condiment in the back too. The retainer bar holds tension when installed, and you don't want anything flying out when you remove it.

Step 2: Remove the Old Retainer Bar

Look at both ends of the white retainer bar. You'll see it clips into slots on each side of the door. Firmly pull one end straight out from the door — don't twist it, just pull. It should pop out of the slot. Then pull the other end out. If it's stuck, the plastic might be deformed from years of use. You may need to flex it slightly to get it out.

Step 3: Check the Mounting Slots

Before installing the new bar, look inside those mounting slots on both sides of the door. Wipe out any dirt or gunk that's built up over the years. The new retainer bar needs to slide in cleanly. If there's debris in there, it won't seat properly and you'll have the same problem — items falling out when the door opens.

Step 4: Install the New 240534701 Retainer Bar

Line up one end of the new bar with its slot and push it in until you hear a click. Then flex the bar slightly to align the other end with its slot and push that in until it clicks. The bar should snap firmly into place. Give it a tug — it shouldn't come out easily.

Fit Issue Alert: Some users report the replacement bar doesn't fit quite right. If your new bar feels loose or doesn't click in firmly, you may have received an aftermarket version with slightly different dimensions than the original Frigidaire part. Try flexing it into position or contact your parts supplier for a proper OEM replacement.

Step 5: Load and Test

Put a few items back on the shelf — start with lighter things first. Open and close the door several times. Everything should stay put. The retainer bar should hold firm without flexing. Now load it up with your normal door contents and test again. If items slide forward but stay on the shelf, that's normal. If they're falling out completely, the bar isn't seated correctly — remove it and reinstall.

Testing After Installation

Close the refrigerator door firmly and listen for the normal seal sound. Open it slowly, then quickly. Items should remain secure either way. Check that the door closes completely — a poorly seated retainer bar can sometimes interfere with the door gasket. If your door won't close all the way now, the bar is probably pushed in too far or sitting crooked.

Frequently Asked Questions

Do I need tools to replace the 240534701 retainer bar?

No tools required. It snaps into place by hand. This is why it's such a popular DIY repair — you literally just pop out the old one and snap in the new one. Total time: under five minutes if you move quickly.

Why does my new retainer bar not fit properly?

This is a common complaint with aftermarket versions of this part. The original Frigidaire retainer bar has very specific dimensions and clip angles. Some replacement parts are manufactured with slight variations that make them loose or difficult to install. As one user reported: "Part did not fit properly and every time you opened the frig door all the items on the side of the door fell out." If this happens to you, contact your supplier for an exchange or request the OEM Frigidaire version specifically.

Will this fix my refrigerator door that won't close?

Sometimes yes, sometimes no. A broken retainer bar can prevent proper door closure if pieces are jamming the door mechanism or if the shelf itself is tilting. But if your door won't close, also check the door gasket and hinges. The retainer bar is usually just about keeping items on the shelf, not the door's ability to seal shut.
