How to Replace 240360908 Wire Shelf on Frigidaire Refrigerator — Step-by-Step

Your Frigidaire refrigerator shelf just dumped a gallon of milk on the floor because the wire's bent or a support clip snapped off. Before you grab the duct tape, know that replacing the wire shelf is actually one of the simplest refrigerator repairs you'll ever do — no tools required, no power disconnection needed.

What You Need Before Starting

This is genuinely a tool-free repair. You won't need:

• Any screwdrivers or wrenches
• Work gloves (though they help with cold shelves)
• Power disconnection

Repair Time: 2-5 minutes
Difficulty: Beginner

Safety First

Empty the shelf completely before removal. Even lightweight items can shift and fall during removal, potentially damaging lower shelves or food containers. If your refrigerator's been running, the metal shelf frame might be cold enough to cause minor discomfort — not dangerous, just uncomfortable to handle for extended periods.

Step 1: Empty and Identify Your Shelf Position

Remove everything from the damaged shelf. Note which position it occupies — most Frigidaire models like the FFHT1814LB series have 3-4 adjustable shelf positions. The shelf clips into molded supports on the refrigerator's side walls, and you'll want to reinstall at the same height.

Step 2: Lift and Tilt the Front Edge Up

Grip the front edge of the shelf with both hands. Lift the front edge upward at about a 45-degree angle. This disengages the front support tabs from their slots. Don't yank — you're just changing the angle so the tabs clear the shelf supports. The shelf should feel loose once you've tilted it enough.

Step 3: Pull Forward and Out

While holding that upward angle, pull the entire shelf toward you. The rear support tabs will slide out of their rear slots as you pull forward. Once the rear clears (usually after 2-3 inches of movement), the shelf comes free. Set the old shelf aside.

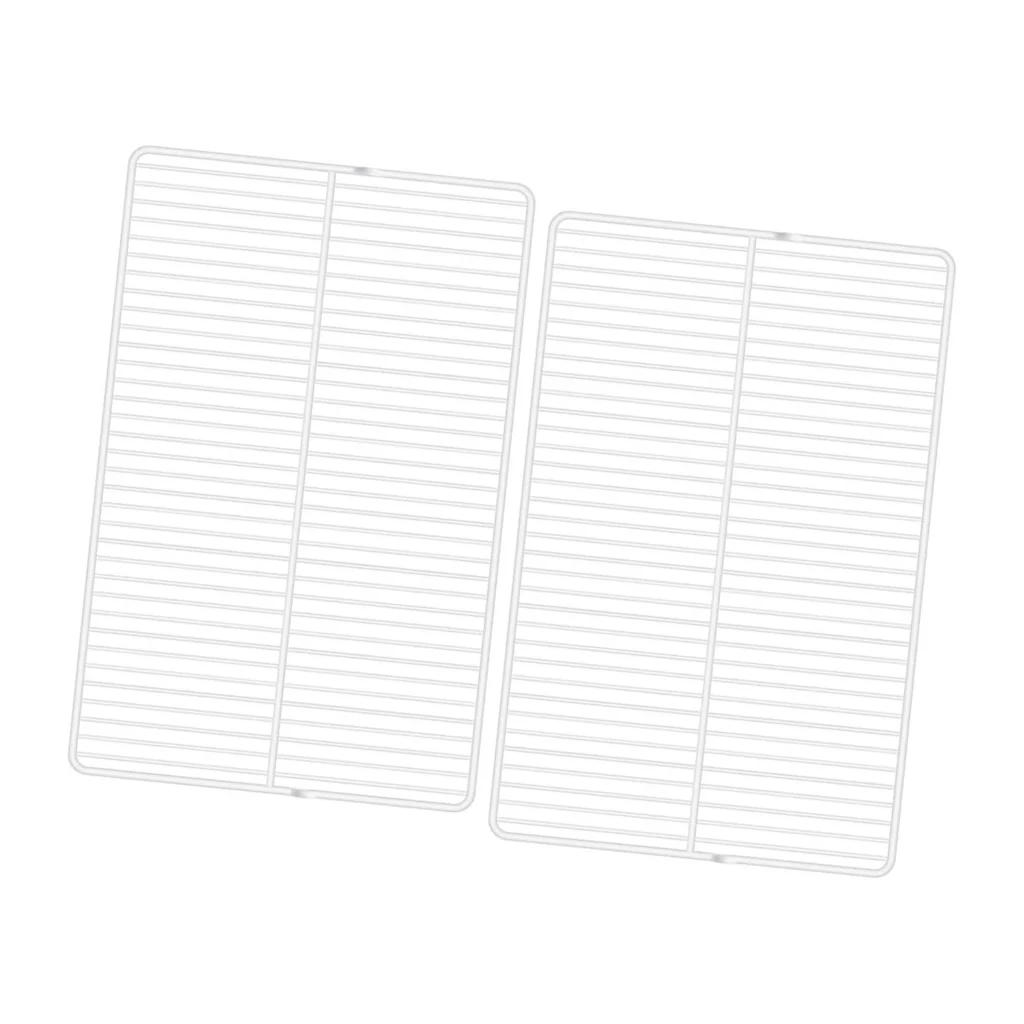

Step 4: Install the New 240360908 Shelf

Take your new shelf and tilt the front edge up just like you did during removal. Slide the rear tabs into the rear support slots first. Push the shelf all the way back until the rear tabs are fully seated. Then lower the front edge down — you should hear or feel a slight click as the front tabs drop into their slots. Give the shelf a gentle tug forward to confirm it's locked in place.

Step 5: Test the Installation

Place a moderately heavy item (like a full milk jug) on the center of the new shelf. Push down gently on different sections to ensure the shelf is level and all four support points are engaged. If one corner seems higher or the shelf rocks, lift it out and reinstall — one of the tabs didn't fully seat.

Testing After Installation

Load the shelf gradually, starting with heavier items toward the back where support is strongest. The 240360908 shelf is designed to handle typical refrigerator loads, but avoid concentrating more than 30-40 pounds in one spot. Check that door clearance is adequate when closing — a shelf positioned too high can interfere with the door's interior shelving.

Frequently Asked Questions

Will this shelf fit my Kenmore refrigerator that uses Frigidaire parts?

Yes, if your model number appears in the compatibility list. Many Kenmore refrigerators from the early 2010s were manufactured by Frigidaire and use identical internal components. Check your model number against the FFHT1814LB, FFTR1814LB, or similar series numbers.

The shelf won't click into place — what's wrong?

You're likely not tilting the front edge high enough. The front tabs need to clear the support ledge before they can drop into the slots. Try lifting the front to nearly 60 degrees, push back firmly, then lower. Also verify you're installing at a position that has all four support slots present.

Can I adjust the shelf height after installation?

Absolutely. Frigidaire refrigerators have multiple shelf positions molded into the side walls. Just remove the shelf using the tilt-and-pull method and reinstall at any other position where you see the support slots. This flexibility lets you accommodate taller items like party platters or cake containers.
