How to Replace 154568001 Lower Spray Arm on Frigidaire Dishwasher — Step-by-Step

When dishes on the bottom rack come out with caked-on food while the top rack is spotless, you're looking at a lower spray arm problem. The spray arm either isn't spinning freely, has clogged holes, or the internal bearing is shot. One customer with an FFBD2411NQ4A told us their spray arm wouldn't rotate at all — it just sat there while water sprayed in one direction. That's when you know it's time to replace the 154568001 lower spray arm assembly.

What You Need Before Starting

This is one of the easiest dishwasher repairs you'll do. No special tools required — just your hands in most cases. Here's what to have ready:

• Towel (to mop up residual water)
• Flashlight (to inspect the spray support)
• New lower spray support (recommended — more on this below)

Repair Time: 10-15 minutes

Difficulty: Easy — Perfect for first-time DIYers

Safety First

Unplug the dishwasher or flip the breaker before you start. There's no electrical work involved in this repair, but it's good practice. You'll also want to pull out the lower dish rack completely so you have room to work. Expect about a cup of water sitting in the bottom of the tub — that's normal.

Step 1: Remove the Old Lower Spray Arm

Pull out the lower dish rack. Look at the spray arm in the center of the tub floor. On most Frigidaire models like the FFCD2413UB0A and FGBD2435NF0A, the spray arm just pulls straight up off a center hub. Grip it firmly and pull upward. If it's stuck from mineral buildup, wiggle it gently while pulling. Some models have a small locking tab — press it while lifting if yours won't budge.

Step 2: Inspect the Spray Support Hub

Here's the critical part most people miss: look at the plastic hub that the spray arm sits on. This is the lower spray support. If it's cracked, worn, or wobbly, order a replacement support along with your spray arm. The installation notes specifically call this out — the support wears out over time and causes the new spray arm to wobble or not spin properly. Check for cracks around the base where it mounts to the sump.

Step 3: Clean the Mounting Area

Wipe away any food debris or mineral deposits around the spray support area. Check the water inlet holes in the center hub — these feed water up into the spray arm. Use a toothpick to clear any blockages. This takes 30 seconds but prevents future cleaning problems.

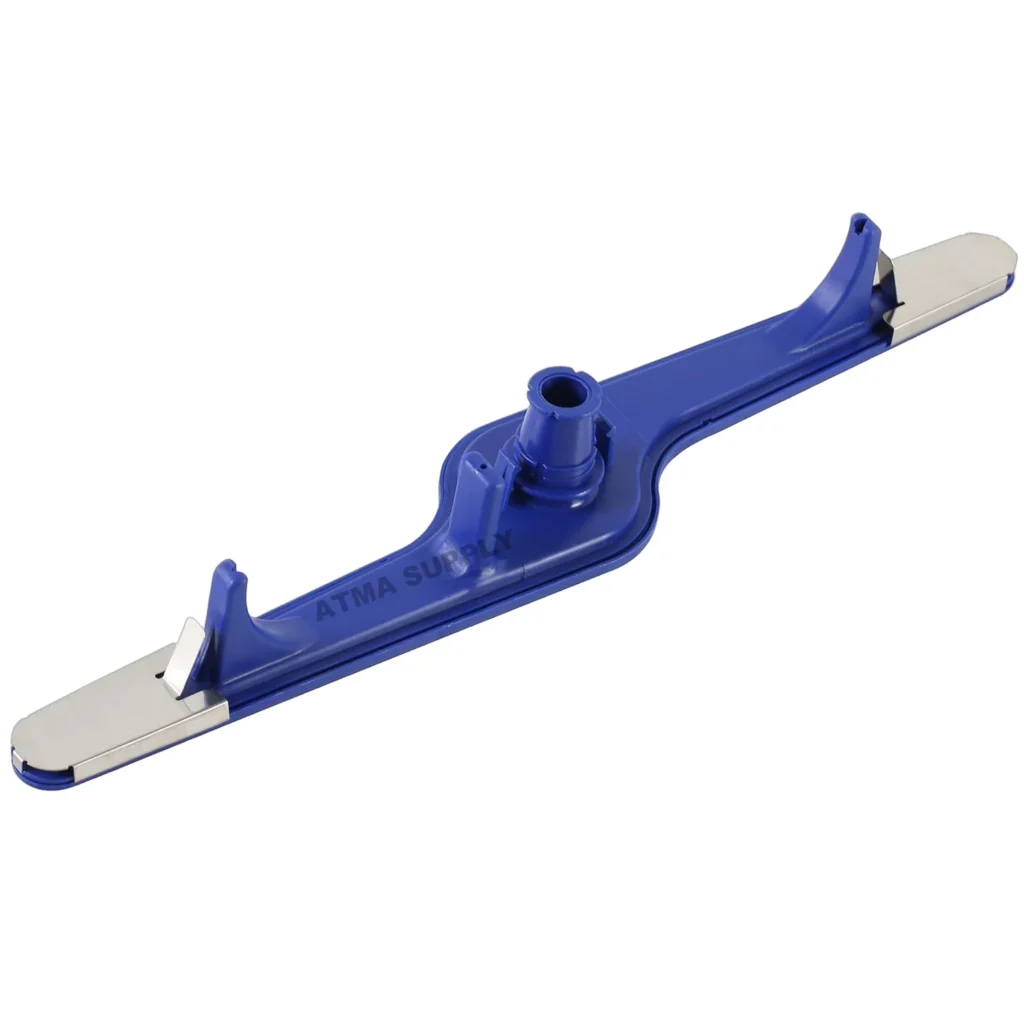

Step 4: Install the New 154568001 Spray Arm

Line up the center hole of the new spray arm with the hub. As one customer noted, the "arm exactly fit where it was supposed to" — it should drop right into place with no forcing. Push down until it seats completely. The heat shield (the metal disc on top of the spray arm) should sit flat. Give the arm a spin by hand — it should rotate freely with minimal resistance. If it binds or feels tight, remove it and check the support hub again.

Step 5: Verify Water Flow Pattern

Before you load dishes, run a quick test cycle. Close the door and start a normal wash. After 2-3 minutes, open the door carefully (some water will be hot). The spray arm should be spinning and water should spray from all the holes. If it's not spinning, the support hub is likely worn — that's your next fix.

Testing After Installation

Run a full cycle with a load of dishes, including some plates on the bottom rack. Everything should come out clean. Pay attention to noise — if you hear grinding or clicking during the wash cycle, stop the machine. That usually means the spray arm is hitting the support or there's a piece of debris caught underneath. No leaks should appear during or after the cycle. If water pools under the dishwasher, you've got a separate issue with the door seal or sump, not the spray arm.

Frequently Asked Questions

Do I really need to replace the spray support when I replace the spray arm?

Not always, but it's smart preventive maintenance. If your support hub is cracked or the plastic is worn smooth where the spray arm bearing sits, replace it. Otherwise, your new spray arm won't spin properly and you'll be back where you started. The part costs about $8 and takes the same amount of time to replace — just pull the old support up and snap the new one down.

Why is my new spray arm not spinning even after replacement?

Three common causes: worn spray support hub, food debris blocking the bearing, or low water pressure to the dishwasher. Check that the spray arm spins freely by hand when you rotate it. If it binds, remove it and inspect the support. Also verify your home's water supply valve to the dishwasher is fully open.

Will this spray arm fit my Kenmore or Electrolux dishwasher?

Yes — the 154568001 crosses multiple brands. It replaces part numbers 5304517203, 154568002, and 154414101. Check your model number against the compatibility list. If your dishwasher is a Kenmore with a model starting with 665 or an Electrolux built after 2008, this part likely fits. When in doubt, pull your current spray arm and compare the mounting hub design.
