LG Washer OE Error Code — What It Means & How to Fix

You're mid-cycle when your LG washer stops dead and displays "OE" on the panel. Water's sitting in the tub, drum won't spin, and you're staring at soaked laundry that isn't getting any cleaner. This isn't just an inconvenience—it's the washer telling you it can't drain properly, and the water level pressure switch (part 6501EA1001R) is often the culprit signaling this problem.

What OE Error Actually Means

OE stands for "Output Error" or "drain Error"—LG's way of saying the machine detected water remaining in the tub after the drain cycle should've completed. The water level pressure switch monitors how much water is in the drum using air pressure sent through a tube. When this switch fails or gets a faulty reading, it can't tell the control board the water level dropped, triggering the OE code even if the drain pump is working fine.

The pressure switch sits behind the control panel on most LG top-loaders like the WT5001CW, WT7200CW, and WT1101CW. It's connected to a small air tube that runs down to the tub. As water drains, air pressure changes, and the switch signals the board that draining is complete. When that signal never comes, you get OE.

Most Likely Causes (Ranked by Probability)

1. Clogged Drain System (High Probability)

Before assuming the pressure switch failed, check the obvious: drain pump filter clogged with coins, lint, or small clothing items. The pump itself might be jammed or the drain hose kinked. This accounts for about 60% of OE errors.

2. Faulty Water Level Pressure Switch (Medium-High Probability)

The 6501EA1001R switch fails when the internal diaphragm cracks or the electrical contacts corrode. You'll often hear the washer trying to drain, pump sounds normal, but the OE code appears anyway because the switch can't detect the pressure change. Common on machines 3-5 years old.

3. Blocked or Disconnected Air Tube (Medium Probability)

That small rubber tube connecting the switch to the tub can get clogged with detergent residue, develop cracks, or pop off entirely. If air can't travel through it, the switch never gets the pressure signal even though water drained successfully.

4. Failed Drain Pump (Medium Probability)

The pump motor might run but the impeller is broken, so it sounds like it's working without actually moving water. The pressure switch correctly reports water is still present.

Step-by-Step Fix

Step 1: Rule Out Simple Drain Issues

Unplug the washer. Locate the drain pump filter (usually lower front on top-loaders, behind a small access panel). Place towels underneath, unscrew the filter cap slowly, and let water drain into a shallow pan. Clean out any debris. Check the drain hose where it connects to your standpipe or utility sink—make sure it's not kinked or elevated more than 96 inches above the floor.

Step 2: Test the Drain Pump

Run a drain cycle while listening. The pump should hum steadily for 2-3 minutes. If it's silent, rattling, or making clicking sounds, the pump motor itself may be bad. If it sounds normal but water doesn't drain, proceed to pressure switch diagnosis.

Step 3: Inspect the Air Tube

Pull the washer away from the wall. Remove the top panel by unscrewing 2-3 screws at the back edge and sliding it toward you. Locate the water level pressure switch (round component about 3 inches diameter) and trace the clear or black rubber tube connected to it. Remove the tube and blow through it—air should pass freely. Check for cracks, kinks, or soapy buildup inside. Clean or replace if needed.

Step 4: Test the Pressure Switch

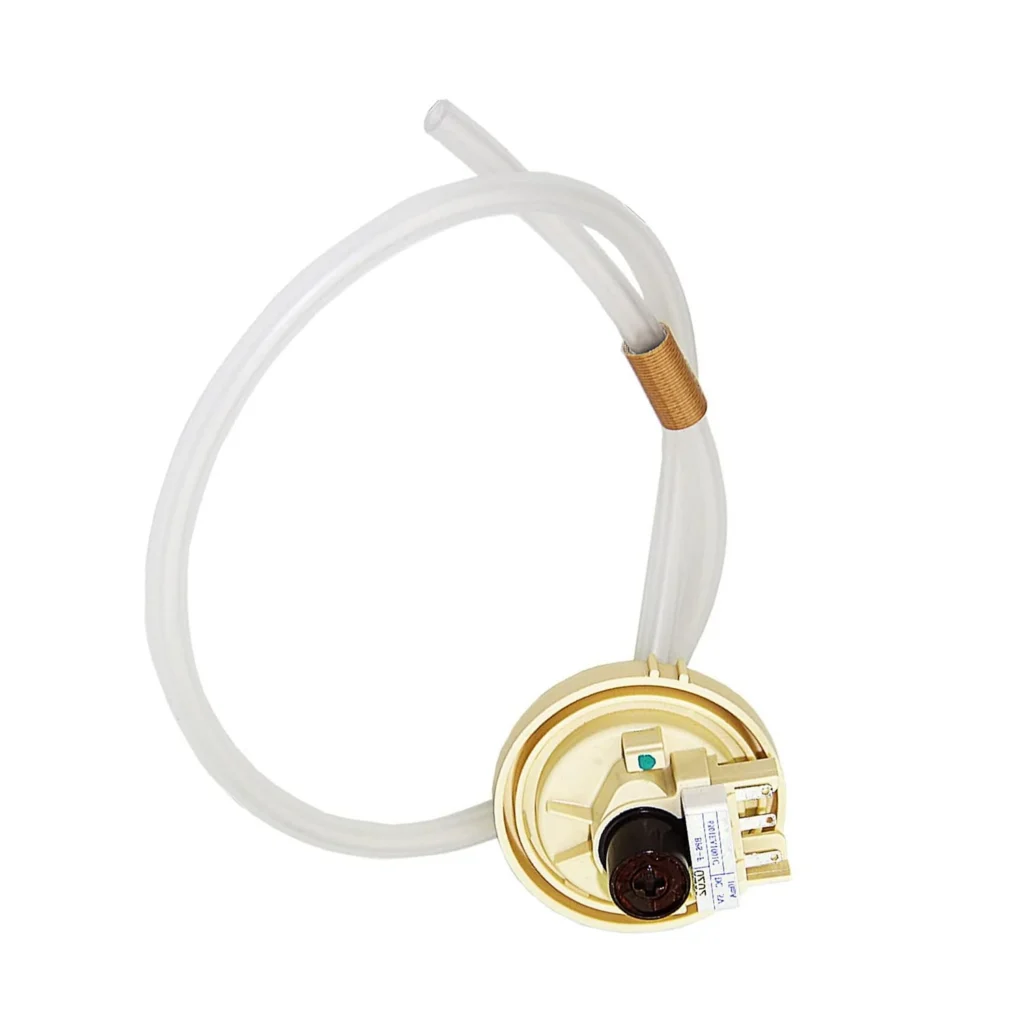

Disconnect the wire harness from the switch. Using a multimeter set to continuity (ohms), test the terminals while gently blowing into the air tube port. You should hear a click and see continuity change as you blow. If there's no click or no continuity change, the switch is dead—order part 6501EA1001R (replaces AP5204365, EBF62754506, and 2651052).

Step 5: Replace the Pressure Switch

Unclip the air tube and disconnect wires. Remove the mounting clip or screw holding the switch. Install the new 6501EA1001R by reversing the process. Make sure the air tube seats firmly on the nipple—a loose connection causes intermittent OE errors. Reconnect power and run a rinse/spin cycle to test.

When the Fix Doesn't Work

If you've replaced the switch, cleared the drain path, and the tube is clean but OE persists, the issue may be the main control board misinterpreting signals. This is rare but happens after power surges. You might also have a worn-out drain pump that tests okay electrically but can't generate enough flow—it'll need replacement even though it sounds like it's running.

Some users report success by recalibrating the washer: unplug for 10 minutes, press and hold START for 5 seconds after plugging back in. This resets the control board's water level memory.

Frequently Asked Questions

Can I Reset the OE Error Without Fixing Anything?

You can clear the code by unplugging the washer for 30 seconds, but it'll return if the underlying problem isn't resolved. The OE error is a symptom, not the disease—the machine is protecting itself from overfilling or running a spin cycle with water still inside, which would damage the motor and transmission.

How Much Does This Repair Cost If I Hire Someone?

Service calls run $150-$200 for diagnosis, plus $80-$120 labor to replace the pressure switch. The part itself (6501EA1001R) costs $59.99. Total professional repair: $290-$380. DIY saves you about $200-$250 if you're comfortable working with basic hand tools.

Will This Work on Kenmore Washers With OE Errors?

Yes—many Kenmore top-loaders are rebadged LG machines. If your model number starts with 796, it's an LG design and uses the same 6501EA1001R pressure switch. Check your model against the compatibility list (includes WT-series LG models like WT5001CW, WT7200CW, WT1101CW, WT5101HW, and dozens more).
